5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
5082-HD Secure Seal Tester for Bottle and Can Sealing Tests
Specifications
Brand Name :
Haida
Model Number :
5082-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Units switch :
Kgf,N.( Optional),Lbf
Testing speed :
10 ~ 200 mm/min
Dimension :
360*264*400mm,70 *34 * 60 cm,85*65*80cm
Measuring range :
250-5600 Kpa,10 ~ 1000mN
Display mode :
LCD display,digital mode
Design criteria :
ISO 2248,ASTM-D2210,TAPPI T403,GB/T4857-92,JIS Z0202-87
Description

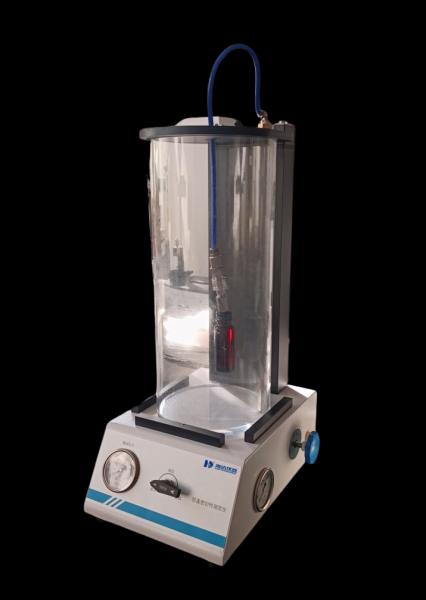

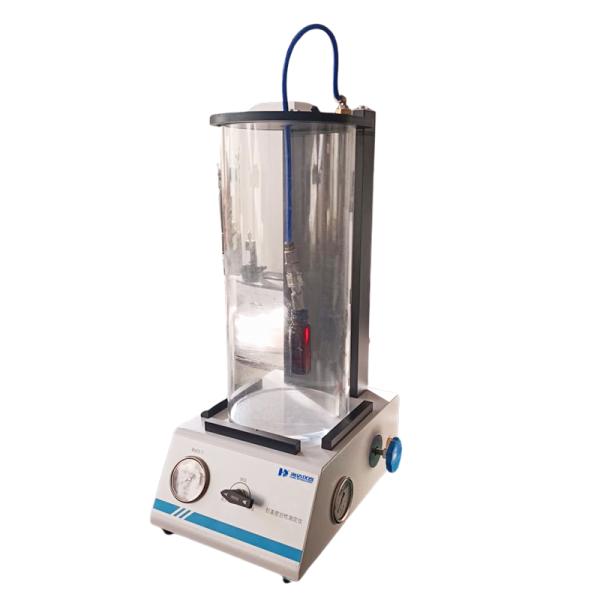

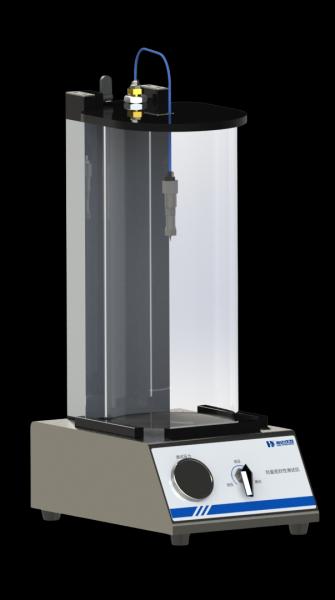

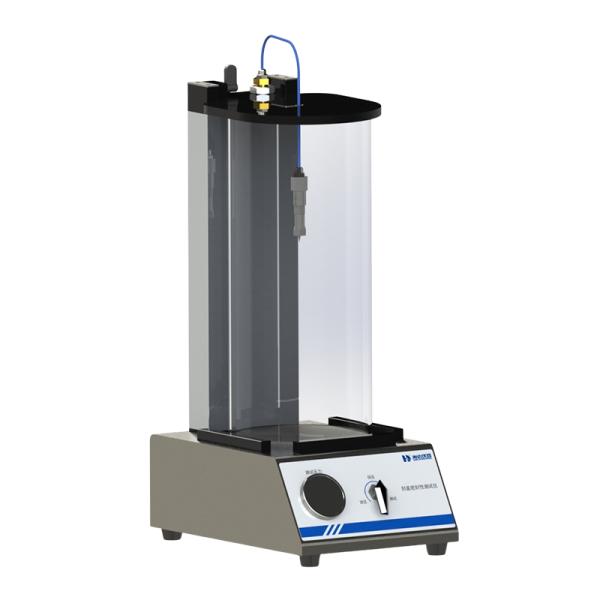

EQUIPMENT DETAILS OF 5082-HD SECURE SEAL TESTER
--Picture for reference only
USAGE
The cap sealing tester is used to test the sealing of bottled and canned beverages to prevent air leakage and effectively control the quality of packaging caps. It is suitable for measuring the sealing of PET bottle products, glass bottle products, canned products, and is also suitable for measuring the sealing of crown caps and PET bottle caps separately.
STANDARD SPECIFICATIONS
Pressurization Compressed air or carbon dioxide is used for inflation and pressurization
Positive pressure measurement Avoids the deficiency of negative pressure measurement that the pressure is less than 1 bar
Test pressure range 0-16bar (1.6Mpa)
Material Made of oxidized aluminum, stainless steel and plastic materials, strong and durable
The instrument is equipped with a pressure reducing valve inside to easily set the maximum test pressure
Precise flow control, adjustable pressure increase speed, adjustment range: the time to increase the pressure to 1Mpa can be arbitrarily adjusted in the range of 5-60 seconds
Many safety features Pressure reducing valve, safety valve, barrel cover safety latch, pressure-opening valve (measurement cannot be started without the test bucket), and exhaust holes on the instrument cover for rapid gas discharge (measurement cannot be started without the barrel cover, and pressure is released immediately after the barrel cover is opened)
Pressure gauge division 0.05Mpa
Pressure gauge display range 0-1.6Mpa
Maximum size of the measured sample 330 * 150mm (height* diameter)
Dimensions length 320 * width 380* height 720 mm
Net weight 15 kg
The Introduction of Haida
Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
