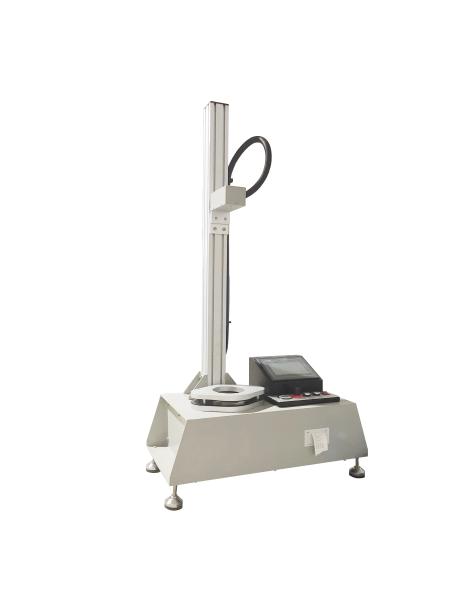

5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
5085-HD Dart Impact Tester for Paper Packaging ASTM D1709
Specifications
Brand Name :
Haida
Model Number :
5085-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Units switch :
Kgf,N.( Optional),Lbf
Display mode :
LCD display,digital mode
Design Criteria :
ISO 2248 , JIS Z0202-87
Test Speed :
3±1mm/min
Standard :
BS EN IS) 8442:-5:2
Impact Velocity Error :
≤±5%
Movement Drive :
ball screw and servo motor
Warranty :
1 year
Use :
Packaging containers
Spot Size :
8x20mm
Optional Configuration :
Printer, Air Pump
Force Accuracy :
≤±1
Stop :
Stop test
Horsepower :
1/2 HP
Load Resolution :
1/100,000
Test Moisture Range :
0～50%
Test Standards :
ISO 534 , ISO 3034
Description
APPLICATIONS

Fall Dart Impact Testing Machine is used to test the impact resistance of various plastic films and slices, which meets the standards of ASTM D1709.

GENERAL SPECIFICATIONS

Estimated Packaging Dimensions: (L×W×H) 1020*600*2250mm

Estimated Gross Weight: 130kg

Power supply source: Single-phase, 220V±10%, 50/60Hz (can be appointed)

STANDARD FEATURES
Testing sample mass Method A: 50-2000g; Method B: 300-2000g
Testing accuracy 0.1g (0.1J)
Testing method Method A & Method B (Option)
Specimen size ＞150mm×150mm
Diameter of impacting head Method A:Ф38.1±0.1mm, Method B:Ф50.8±0.1mm
Diameter of dart shaft Ф6.5±0.1mm
Inner diameter of specimen fixture 125±2 mm
Impacting height Method A : 0-660mm, Method B: 0-1520mm
Weights Method A: 5g*2, 15g*8, 30g*8, 60g*8, 500g*2 Method B: 15g*2, 45g*8, 90g*8, 300g*2
Power Single-phase 220V, 60Hz
Estimated Weight 100kg
Specimen Fixture Pneumatic
The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
