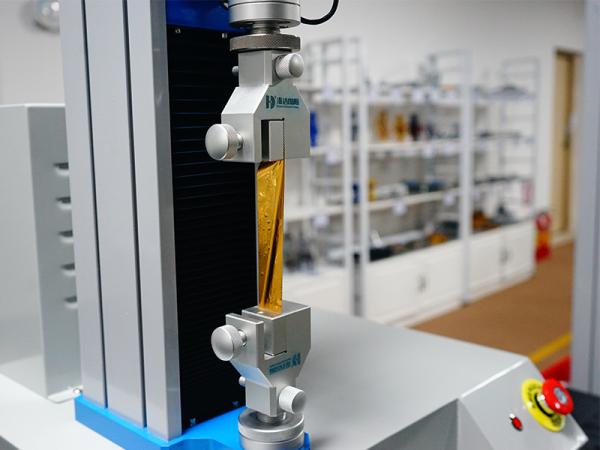

5090-HD Tensile Test Machine for Film and Paper Packaging
5090-HD Tensile Test Machine for Film and Paper Packaging
5090-HD Tensile Test Machine for Film and Paper Packaging
5090-HD Tensile Test Machine for Film and Paper Packaging
5090-HD Tensile Test Machine for Film and Paper Packaging
5090-HD Tensile Test Machine for Film and Paper Packaging
5090-HD Tensile Test Machine for Film and Paper Packaging
5090-HD Tensile Test Machine for Film and Paper Packaging
Specifications
Brand Name :
Haida
Model Number :
5090-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Units switch :
Kgf,N.( Optional),Lbf
Display mode :
LCD display,digital mode
Vibration Mode :
reciprocating
Movement Drive :
ball screw and servo motor
Cutting Depth :
< 8 mm
Load Accuracy :
≤0.5%
Load Resolution :
1/100,000
Amplitude Range :
25.4 mm (1 inch)
Test Area :
10 ± 0.05cm ^ 2
Drop Platform Area :
(L×W) 1700×1200 mm
Test Space :
1200*1200*1200mm (can be customer made)
Maximum Test Weight :
500KG
Sample Size :
100(L)×63(W)mm
Compressed Air :
6 kg/cm2
Power :
Electric
Steel Ball :
16mm * 20
Test Standards :
ISO, ASTM, TAPPI, DIN, JIS, GB, etc.
Load Cell :
4 load cell for highest accuracy
Side Urn :
32 mm in diameter (dual axle cylinder)
Description
EQUIPMENT DETAILS OF 5090-HD TENSILE TEST MACHINE FOR FILM
PRINCIPLE

Tensile test: The purpose is to check whether the material meets the specified standards and to study the strength and plasticity of the material. Fix the required tensile machine joints on the fixed plate and sliding plate of the tester, match the corresponding fixtures and install them on the tensile machine joints, and fix the test materials; start the equipment to perform axial tensile test on the sample, measure the changing load and elongation of the sample until it breaks (or ruptures), and calculate the relevant mechanical performance indicators based on the measured data.

GENERAL SPECIFICATIONS

Estimated Packaging Dimensions: (W*D*H) 680*680*1400mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Estimated Gross Weight: 120kg

HS Code: 9024800000

STANDARD FEATURES
Item Disinfect
Load capacity 5-200kg
Load cell brand High precision load cell
Motor 400w servo motor
Actuator 400w servo actuator
Screw Ball screw
Control system PC control
Test speed 0.1-500mm/min (adjustable)
Vertical test space 900mm (excluding clamp)
Load resolution 1/250,000
Load accuracy ≤0.5%
Force reading gf/kgf/N//kN/LBf/T
External dimension (L*W*H)580*550*1250mm
Weight About 70KG
Power 1∮ AC 220V
FEATURES
Ten processes to address diversity needs
  • Equipment integrates ten professional independent test procedures, such as tensile, peeling, tearing, heat sealing, fixed extension tensile, lower pressure, puncture retention force, etc., and provides users with a variety of test items.
  • Support rubber plug puncture, ampoule breaking force and other compression test, test speed can be set freely
  • Intelligent design of limit protection, overload protection, automatic return, etc. to ensure safe operation
Advanced testing organization accuracy
  • Equipped with a force-value testing system for world-renowned brands, providing better force-value accuracy than level 0.5, better repeatability and more flexible testing
  • Equipped with a world-renowned brand servo operating system, with precision ball screw multi-axis positioning technology, to provide better than 0.5 level displacement accuracy, poleless speed regulation, easy to use, more stable operation.
High-end embedded computer platform safe and easy to use
  • Support group test data comparison analysis, with multi-unit conversion function
  • the system are convenient for external access and data transmission
TEST APPLICATION
SOME APPLICATION EXAMPLES
Basic application Extended application (Need special accessories or restructuring)
Tensile strength and deformation rate Breaking force of ampoule
Breaking force Combination cover opening force
Heat seal strength Pulling force of infusion bag cover inclined at 90 degrees
Tear resistance 90 degree peel force of tape
180 degree peel Adhesive strength test (soft)
90 degree peel Makeup brush bristles pulling force
Fixed tensile test Milk cup cup film peeling force
Down test Magnetic card core peeling force
Puncture retention Release paper separation force
The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
