Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Heat Sealing Tester for Paper Packaging ISO Standards
Specifications
Brand Name :
Haida
Model Number :
5088-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Units switch :
Kgf,N.( Optional),Lbf
Display mode :
LCD display,digital mode
Design Criteria :
ISO 2248 , JIS Z0202-87
Test Speed :
3±1mm/min
Standard :
BS EN IS) 8442:-5:2
Impact Velocity Error :
≤±5%
Movement Drive :
ball screw and servo motor
Warranty :
1 year
Friction Load :
908g ( 2LB)|1810g (4 LB)
Model :
HD-A544
Printing Pressure :
0 ~ 700N
Ring Groove Width :
0 . 15mm-1 . 00mm , A total of 13types
Speed Of Compression :
High Pressure 170± 10ml/min
Vibration Mode :
reciprocating (rotary);
Testing Speed :
2°/ second
Optional Configuration :
Printer, Air Pump
Indicating Method :
Digital
Accuracy :
± 0.5%
Measurement Accuracy :
1%
Travel Speed :
adjustable from 20 - 80 mm per second
Measurement Range :
0~199
Force Reading :
Kgf, Ibf, N, KN, T Etc
Aperture Size :
Φ2mm ( other sizes customized )
Description
PRODUCT DECRIPTION

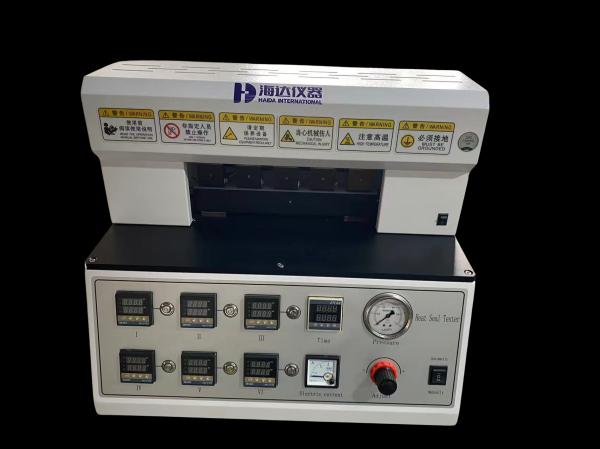

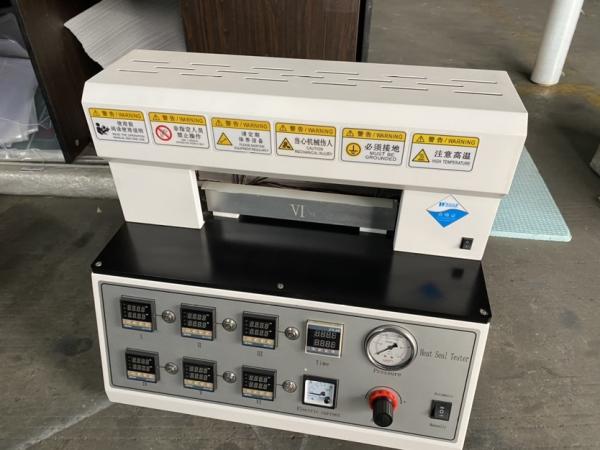

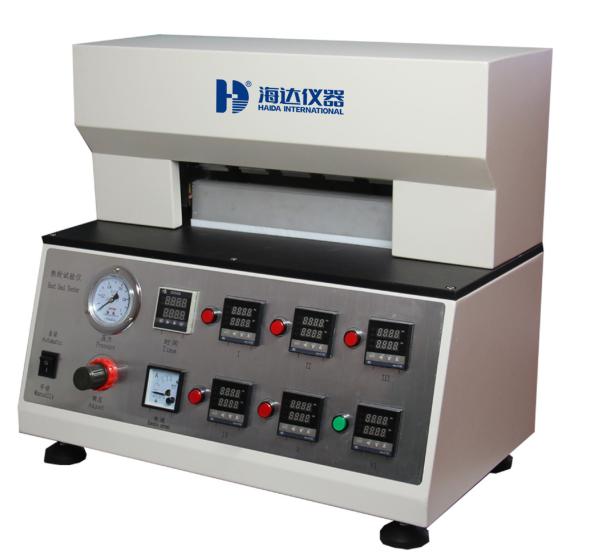

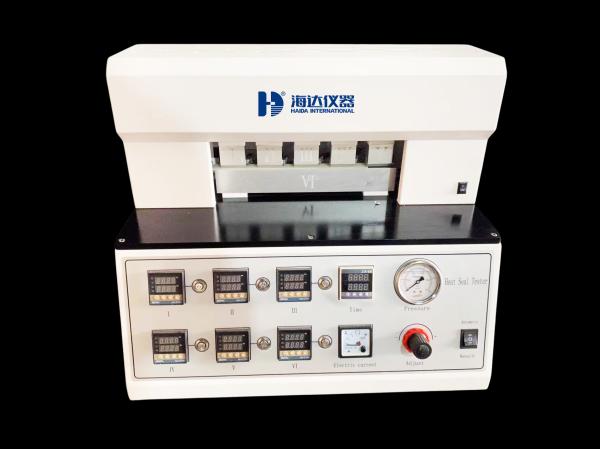

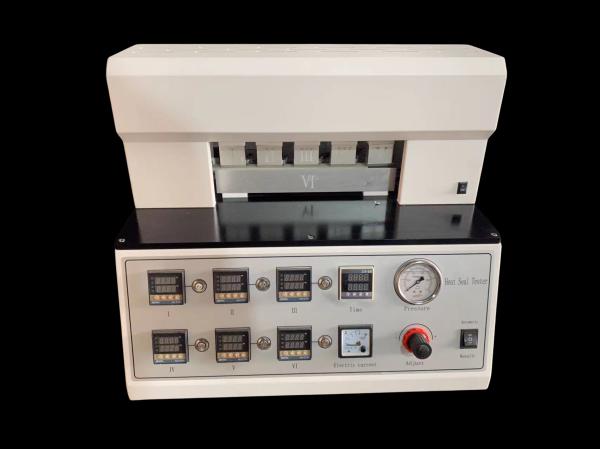

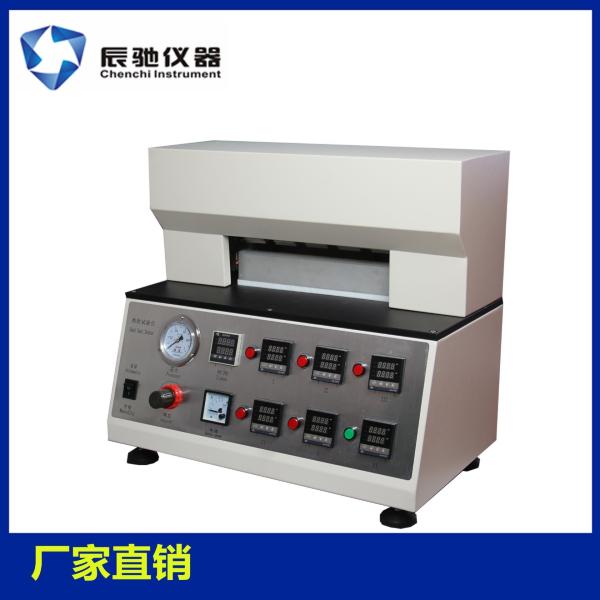

Heat sealing tester adopt hot-pressing sealing method which is used to determination of plastic film base material, flexible packaging composite film, coated paper and other heat sealing compound film of heat sealing temperature, heat sealing time, heat sealing pressure parameters , to provide users with accurate heat sealing test index. Fully digital control system, the key parts adopt international famous brand products, a high degree of automation, easy operation.

TEST STANDARD

ASTM F2029, QB/T 2358, YBB 00122003

TECHNICAL PARAMETERS
Item Description
Heat sealing temperature RT+10~250℃
accuracy ±1℃
Heating sealing pressure 0~0.7Mpa(Adjustable)
Heating sealing time 0.01~99.99s(Adjustable)
Heating sealing surface(L*W) 40mmx10mm * 5 stations
Heating method Single heating or double heating; upper and lower sealing knives can be individually switched and individually temperature controlled
Test mode Manual mode / automatic mode (Manual mode is controlled by foot switch, automatic mode is controlled by adjustable delay relay);
Air pressure ≤0.7MPa (user-supplied)
Machine Dimension(L*W*H) 550*330*460mm
Net weight Around 35kg
Power 1-PH, AC 220V,50Hz
Standard configuration Foot switch + Air supply line + Air filter + Power cord
The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
