Sanitary Napkin Absorption Speed Tester 5013-HD with LCD Display
Sanitary Napkin Absorption Speed Tester 5013-HD with LCD Display
Sanitary Napkin Absorption Speed Tester 5013-HD with LCD Display
Sanitary Napkin Absorption Speed Tester 5013-HD with LCD Display
Specifications
Brand Name :
Haida
Model Number :
5013-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Feature :
easy to operate
Operation Method :
Automatic
Product Type :
Testing Instruments
Protection Device :
Induction type protection device
Control :
PLC control
Sensing Method :
Pressure Transmitter
Stop :
Stop test
Force Resolution :
1/500000 of the maximum test force fs
Vibration Mode :
reciprocating
Description

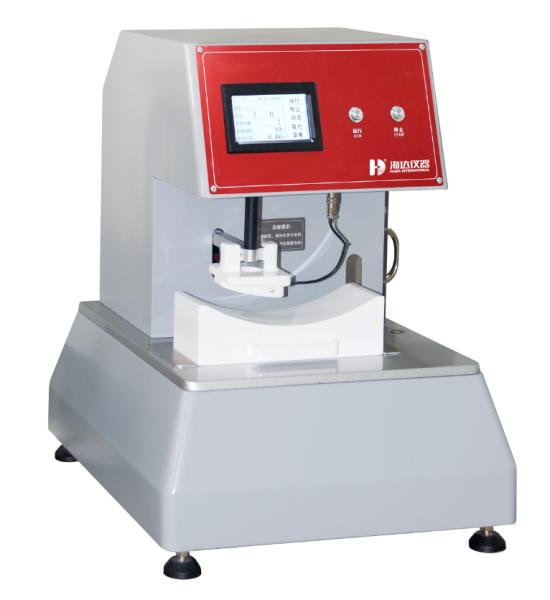

EQUIPMENT DETAILS OF 5013-HD SANITARY NAPKIN ABSORPTION SPEED TESTER

Sanitary Napkin Absorption Speed Tester 5013-HD with LCD Display

MACHINE PRODUCTION

The Sanitary napkin absorption speed tester is used to measure the absorption speed of sanitary napkins, reflecting whether the absorption layer of sanitary napkins absorbs in a timely manner.

TEST STANDARD

GB/T8939-2018 GB/T39391-2020

PRODUCT FEATURES

1. Color touch screen display and control, Chinese and English interface, menu based operation mode.

2. There is a testing time display during the testing process, which facilitates the adjustment of testing time.

3. The surface of the standard test block is processed with silicone gel artificial leather.

4. The core control component is a 32-bit multi-function motherboard from STMicroelectronics.

5. The core transmission mechanism adopts imported precision guide rails.

6. The device automatically drips and the flow rate is adjustable.

7. The instrument is equipped with a precision level detection device.

8. The instrument reference surface adopts special processing to ensure the accuracy of the reference surface and improve the accuracy of the instrument.

9. Quick interchangeable sample holder for improved testing efficiency.

10. The automatic lifting of the testing module does not require manual operation.

STANDARD FEATURES

Item

Description

Standard test module

size : (76 ± 0.1) * (80 ± 0.1) mm;

Weight: 127.0 ± 2.5 g;

Curved specimen seat

L: 230 ± 0.1 mm

W: 80 ± 0.1 mm

Volume of liquid added

1 ~ 50 ± 0.1 ml,

Discharge rate

≤ 3s

Test module lifting speed

50～200mm/ min(adjustable)

Automatic timer time range

0 ~ 9999

Automatic timer resolution

0.01s

Power

AC220V, 0.5KW

Dimensions(L*W*H)

420*480*520mm

Weight

42kg

Configuration list

Curved test stand module *1

Standard module *1

250ml measuring bottle *1
