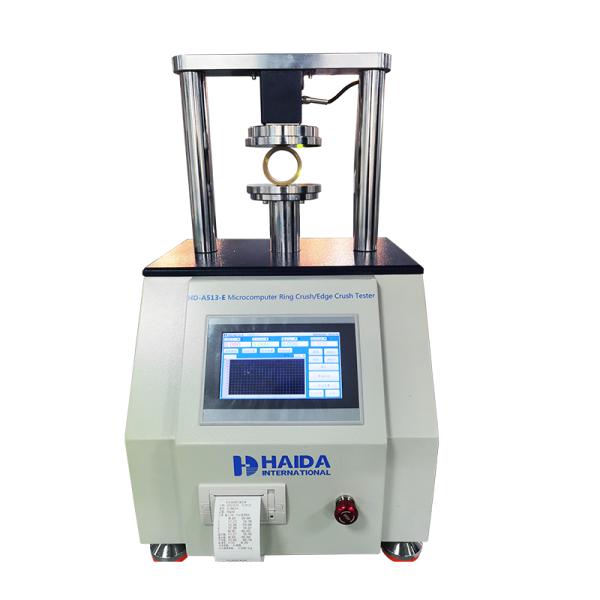

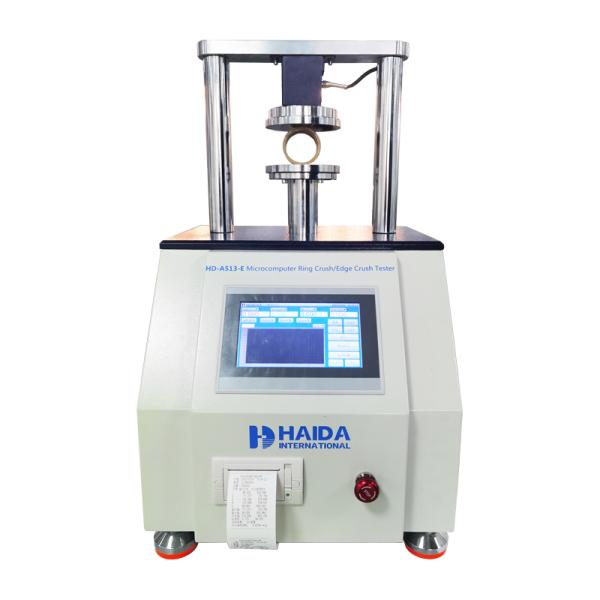

HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
Specifications
Brand Name :
Haida
Model Number :
HD-A513-E
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Feature :
easy to operate
Operation Method :
Automatic
Product Type :
Testing Instruments
Protection Device :
Induction type protection device
Control :
PLC control
Sensing Method :
Pressure Transmitter
Stop :
Stop test
Force Resolution :
1/500000 of the maximum test force fs
Vibration Mode :
reciprocating
Description
EQUIPMENT DETAILS OF HD-A513-E PAPER TUBE CRUSH TEST MACHINE

HD-A513-E Paper Tube Crush Test Machine 5KN CapacityGENERL SPECIFICATIONS
Packaging Dimensions: (WxDxH) 700*650*920mm
Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)
Gross Weight: 110kg
STANDARD FEATURES
Item Description
Max. Capacity 500kg(5KN)
Control mode Touch screen
Load Resolution 1/250,000
Unit Kgf, Ibf, N
Load accuracy Within± 0.5%
Max.Resolution 0.02N
Result Output Mini-printer (thermal printer)
Test speed (12±0.5) mm/min
Plate Stroke 0.1~120mm
Plate diameter φ120mm
Platen parallelism ≤0.06mm
Statistics Mean value, max. & min values of the series
Power 220V, 220W
Dimension&Weight (LxWxH) 400 × 400 × 650mm, 40kg
HD-A513-E Paper Tube Crush Test Machine 5KN Capacity HD-A513-E Paper Tube Crush Test Machine 5KN Capacity HD-A513-E Paper Tube Crush Test Machine 5KN Capacity
