Precision HD-P010 McNett Fiber Classifier for Paper Pulp Testing
Precision HD-P010 McNett Fiber Classifier for Paper Pulp Testing
Specifications
Brand Name :
Haida
Model Number :
HD-P010
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Feature :
easy to operate
Operation Method :
Automatic
Product Type :
Testing Instruments
Protection Device :
Induction type protection device
Control :
PLC control
Sensing Method :
Pressure Transmitter
Stop :
Stop test
Force Resolution :
1/500000 of the maximum test force fs
Vibration Mode :
reciprocating
Test Cycles Setting :
4 digits pre-set counter
Load Measuring Range :
full range of 0.2% ~ 100% FS
Accuracy :
±0.5%
Horsepower :
1/2 HP
Drop Error :
± 10
Power Capacity :
5.3 HP
Plywood Size :
H48in * D48in
Tear Length :
43mm
Force Reading :
Kgf, Ibf, N, KN, T Etc
Resolution Of Value :
0.01N
Pressure Range :
600~1200kpa
Testing Speed :
2°/ second
Display Method :
Digital height indicator (optional)
Precision :
< 0.25%
Travel Speed :
adjustable from 20 - 80 mm per second
Description

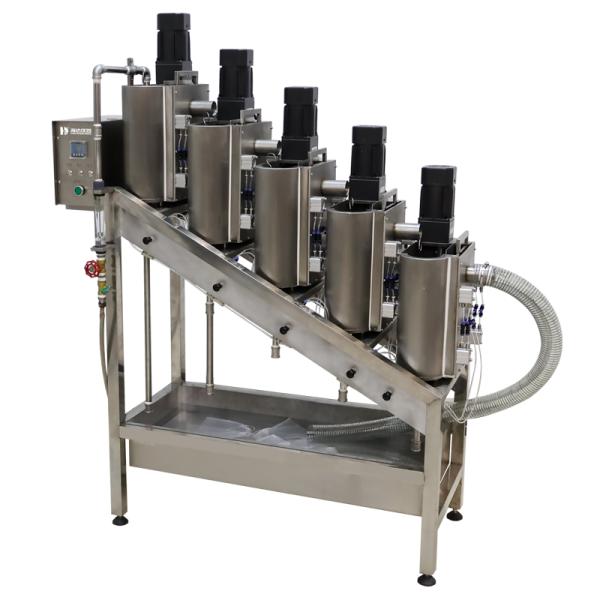

EQUIPMENT DETAILS OF HD-P010 MCNETT FIBRE CLASSIFIER (PAUL FIBER SIEVING INSTRUMENT)
APPLICATION

The 5-level Ball Sieve (Ball Fiber Sieve) is an instrument used by the pulp and paper laboratory to determine the weight average fiber length of the pulp fibers by the sieving method. It is used to measure the proportion of fibers of different lengths in the pulp, and to grasp the distribution of fibers of various lengths in the pulp.

This machine complies with the screening test method specified in GB/T 2678.1-1993, and also complies with the screening method test specified in TAPPI T233cm-95, and meets the Nordic SCAN M6 (10g sample, water flow 15min, flow rate 10L/min) experimental method.

PRINCIPLE

Inject the pulp suspension into the sifter. Each sieving container is equipped with a screen, and the container is stepped. When the pulp suspension flows from one container to another, the pulp with different fiber lengths is retained on different screens. The fiber length of the retained pulp is the same as the mesh size of the sieve plate. After sieving for a certain period of time at a certain water flow rate. Collect the fiber on each sieve plate, dry it, and after constant weight, report the result according to the amount of fiber remaining on each mesh to the mass percentage of the input sample.

STANDARD FEATURES
Model T015
Number of Sieve Classification 5 levels
Screener Capacity 10 liters (the volume of a single classifier)
The Speed Of The Stirrer (580±1) r/min
Screening Mesh (Medium-Long Fiber is selected at the Factory) Tyler sieve size 14 mesh, 28 mesh, 48 mesh, 100 mesh
The Water Flow Be adjusted from 0 to 20L/min (adjusted according to the standard used in the experiment, and the display accuracy is 0.5%R
Screening Time 9999min (adjusted according to the standard used in the experiment)
Main Material 304 stainless steel
Net Weight 135Kg
Water Source Status continuous water source is required
Screen clamping and release method Pneumatic
Power Supply 240W/380V
