5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646
5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646
5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646
5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646
Specifications
Brand Name :
Haida
Model Number :
5025-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Design Standards :
ASTM D646, JIS P8124, QB / T 1671
Operating Method :
Microcomputer Control
Minimum Readout :
0.1
Dropping Deviation :
±10mm
Load Resolution :
1/250,000
Testing Standards :
ISO, ASTM, TAPPI
Drop Test :
Corners, edges , faces of sample
Rated Bending Angle :
± 7.5 ° and ± 15 °
Usage :
Packaging Testing
Plywood Size :
H48in * D48in
Compressed Air :
6 kg/cm2
Test Load Options :
55g, 175g, 275g
Drive Mode :
power-driven
Load Cell Resolution :
1/250,000
Description

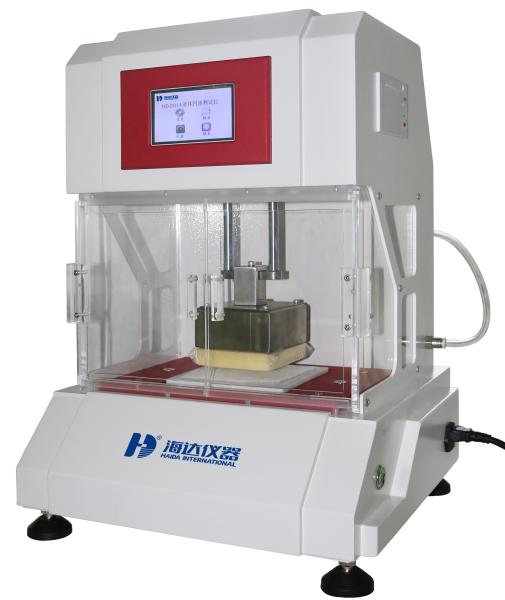

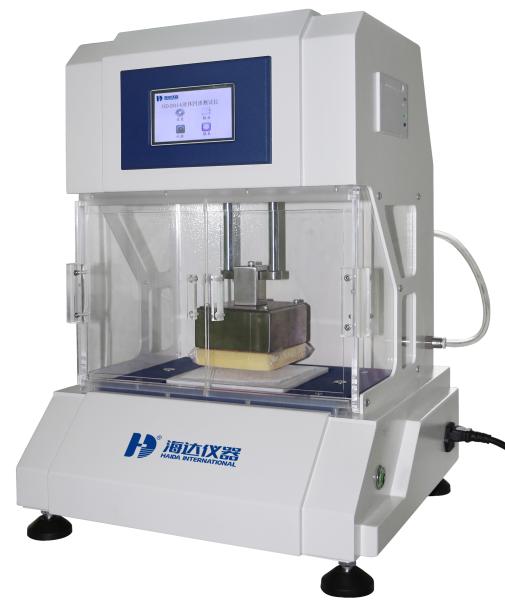

EQUIPMENT DETAILS OF 5025-HD AUTOMATIC DIAPER LIQUID IMPERMEABLE TESTER
5025-HD Automatic Diaper Liquid Impermeability Tester ASTM D646
INTRODUCTION

Used to determine the amount of diaper covering material that resists the rewetting of the liquid that has penetrated

STANDARD

GB/T 24218.14 ISO 9073-14 WETBACK151.3-02

FEATURES
  • Touch screen control, Chinese and English menu, man-machine dialogue mode, convenient operation.
  • Built-in thermal printer is convenient for printing test results on site.
  • High-precision sensor with windshield, the test result is accurate to 0.001g.
  • Pneumatic components, when placing the simulated baby load, lift the sample to automatically complete the test.
  • Stepping motor and driver control to ensure that the speed meets the standard requirements.
  • The instrument has its own calibration function.
STANDARD FEATURES
Technical Index 5025-HD
Simulated baby load weight and size 4000g±20g (10x10cm)
Test range and accuracy 300g/0.001g
Testing speed 5cm/(5±1)s
Placement and dwell time can be set 1~999s
Tray size 170x170mm
Dimensions Approx:430 x 410 x 540 mm (LxWxH)
Weight 51kg
Power source 220V, 50Hz,100W
