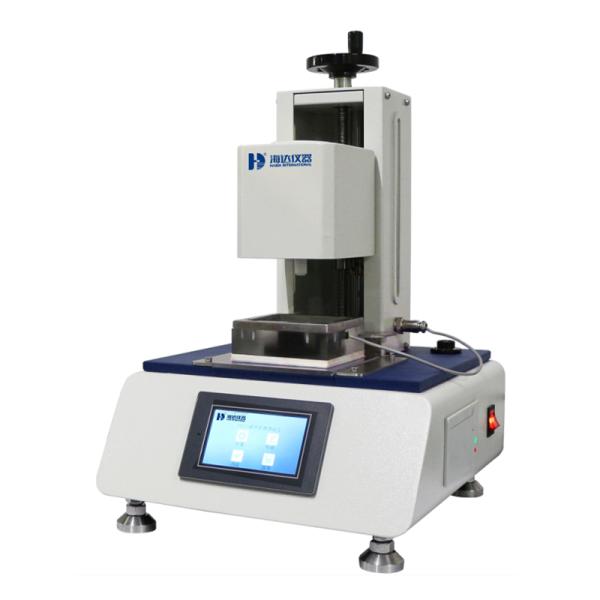

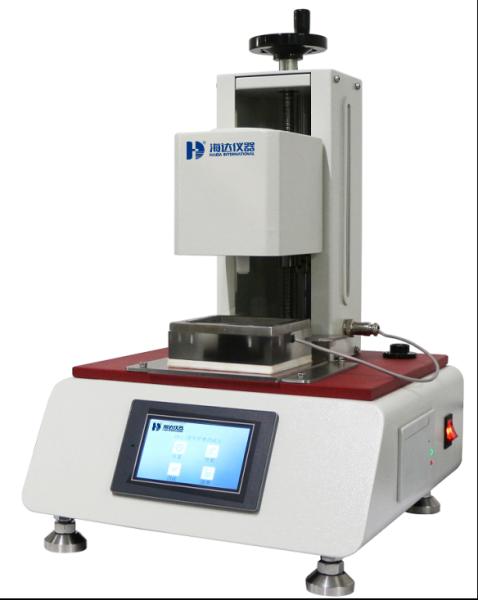

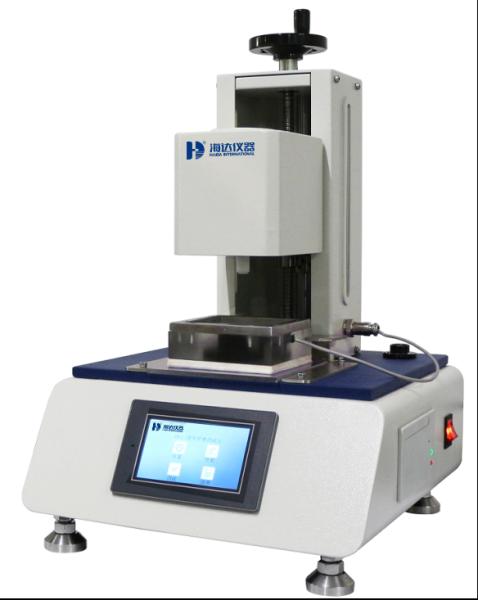

5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics
5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics
5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics
5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics
5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics
5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics
Specifications
Brand Name :
Haida
Model Number :
5023-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Design Standards :
ASTM D646, JIS P8124, QB / T 1671
Operating Method :
Microcomputer Control
Minimum Readout :
0.1
Dropping Deviation :
±10mm
Load Resolution :
1/250,000
Testing Standards :
ISO, ASTM, TAPPI
Drop Test :
Corners, edges , faces of sample
Rated Bending Angle :
± 7.5 ° and ± 15 °
Usage :
Packaging Testing
Plywood Size :
H48in * D48in
Compressed Air :
6 kg/cm2
Test Load Options :
55g, 175g, 275g
Drive Mode :
power-driven
Load Cell Resolution :
1/250,000
Description
EQUIPMENT DETAILS OF 5023-HD DIAPER LIQUID PENETRATION TESTER
5023-HD Diaper Liquid Penetration Tester for Nonwoven Fabrics
PRODUCT DESCRIPTION

Used for liquid penetration test of thin nonwoven fabrics for sanitary use such as sanitary napkins, diapers and other covering materials.

TEST STANDARD

FZ/T60017; GB/T24218.8; GB/T24218.13; GB/T24218.14

PRODUCT FEATURES
  • All main components are made of stainless steel and are durable;
  • The induction electrode material is acid and alkali resistant;
  • The instrument automatically records time and automatically displays test results, which is simple and practical;
  • Color touch screen display and control, Chinese and English interface, menu-based operation mode;
  • Test report to view test results.
  • Platinum electrodes are used, which are highly sensitive, corrosion-resistant and durable.
TECHNICAL PARAMETERS
Item Description
Burette capacity 50ml
Control liquid flow rate 25ml flows in (3.5±0.25)s
Distance between funnel tip and sample Adjustable
Substrate material Plexiglass
Penetrating disc size 100 x 100 x 25mm
Sample size 125 x 125mm
Timer 0～9999.99s, accuracy: 0.01s
Total weight of penetrating disc 500g
Power supply AC220V±10％ 50HZ
Power 50W
Weight 5Kg
Size 240 x 400 x 320mm
