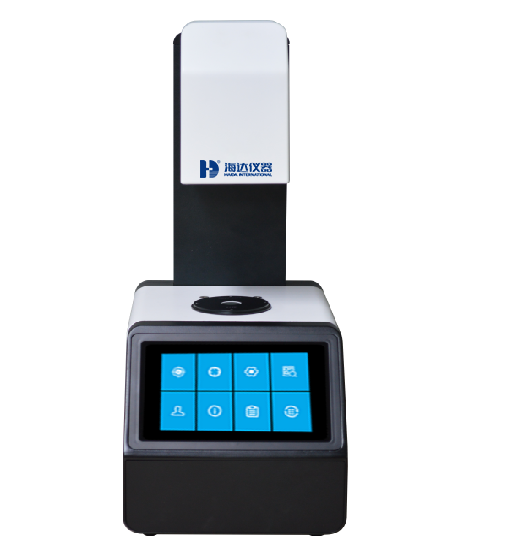

5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
5096-HD Luminous Transmittance Haze Meter for Paper Packaging Testing
Specifications
Brand Name :
Haida
Model Number :
5096-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Units switch :
Kgf,N.( Optional),Lbf
Display mode :
LCD display,digital mode
Vibration Mode :
reciprocating
Movement Drive :
ball screw and servo motor
Customized Support :
OEM ODM
Usage :
Paper Testing Instrument
Features :
High precision, easy operation, reliable performance
Controller :
PLC (programmable logic controller)
Drop Test :
Corners, edges , faces of sample
Display Method :
digital display
Time Display :
To display time during test ( s )
Usa Area :
cookware
Design Criteria :
EN71 ANSI,UL,ASTM ISTA
Test Standards :
ISO, ASTM, TAPPI, JIS, etc.
Control System :
PLC Programmed Control
Test Space :
600×800×800mm(can be customized)
Origin :
China
Test Methods :
Electronic, mechanical, manual
Dropping Deviation :
±10mm
Accuracy :
±1%
Deformation Resolution :
≤0.1mm
Measuring Range :
0 . 1 μ g-200mgH2O ( 2ppm~100% )
Weight :
Customizable
Appearance Size :
7000x2000x2300 (L × W × H) mm
Transmission Mode :
pneumatic device + reducer + release
Scan Mode :
single line
Ring Groove Width :
0 . 15mm-1 . 00mm , A total of 13types
Use :
Packaging Materials
Description
DESCRIPTION

It is designed for plastic sheets, films, glasses, LCD panel, touch screen and other transparent and semi-transparent materials haze and transmittance measurement. Our haze meter does not need warm-up during test which saves customer's time. Instrument conforms to ISO, ASTM, JIS, DIN and other international standards to meet all customers' measurement requirement.

STANDARD

ASTM D1003/D1044,ISO13468/ISO14782,JIS K 7105,JIS K 7361,JIS K 7136,GB/T 2410-08

FEATURE
  • No need to do warm-up, after instrument is calibrated, it can be used. And measurement time is only 3 seconds.
  • Three kinds of light sources A,C and D65 for haze and total transmittance measurement.
  • It can realize transmittance compensation measurement which can provide higher accuracy test result.
  • Open measurement area, no limit on sample size.
  • Instrument is with 5.0 inches TFT display screen with good human-computer interface.
  • It can realize both horizontal and vertical measurement to measure different kinds of materials.
  • It adopts LED light source whose lifetime can reach 10 years.
  • Small size and light weight which makes it much easier to carry.
TECHNICAL PARAMETER
Measuring range 0-100%
Light source CIE-A,CIE-C,CIE-D65
Spectral Response CIE Luminosity function Y/V
Geometry 0/d
Lighting and sample aperture size 15mm/21mm
Resolution 0.01%
Repeatability Light transmittance: ≤ 0.1% Haze: If H ≤ 10%, ≤ 0.05%; If H>10%, ≤0.1%
Sample size Thickness ≤145mm
Minimum reading 0.1%
Memory 20000 value
Interface USB
Power DC24V
Working environment 10~40℃, RH≤80%, (under 35℃,No condensation of moisture)
Storage environment -20℃~50℃, RH≤80%, (under 35℃, No condensation of moisture)
Machine size 310 x 215 x 540mm
Optional Fixture, haze standard plate, 5/7/10mm Custom Made Aperture

The Introduction of Haida

Haida products are extensively utilized across diverse industries including paper goods, packaging, ink printing, adhesive tapes, bags, footwear, leather goods, environmental protection materials, toys & baby products, hardware, electronics, plastics, and rubber. They are equally suitable for all research institutions, quality inspection agencies, and academic fields. Our products comply with UL, ASTM, JIS, GB, and ISO standards.
