5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment
5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment
Specifications
Brand Name :
Haida
Model Number :
5123-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Material :
Steel
Optional Features :
Customizable load capacity and dimensions
Keyword :
Furniture Testing Machine
Power :
Electronic
Testing Method :
Dynamic and static load testing
Power Supply :
AC/DC
Use :
Chair
Type :
Test Equipment
Unit Switch :
gf，kgf, N, LBf, W, KN, T
Driving Mode :
variable frequency motor and timing belt
Power Source :
Electricity
Lcd Display :
Yes
Adjustable Armrests :
Yes
Description
5123-HD Wheelchair Rain Test Machine
EQUIPMENT DETAILS

Image For Reference Only

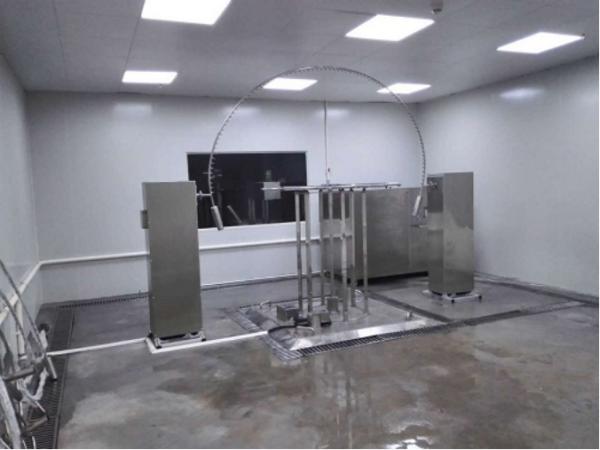

5123-HD Wheelchair Rain Test Machine Furniture Testing Equipment

GENERL SPECIFICATIONS

Power supply source: Three-phase,380V±10%,50/60Hz (canbeappointed)

HS Code: 8424899909

STANDARD FEATURES
Item Specification
Dimension of waterproof test room (W*D*H) 5500*4500*4500mm (Waterproof test room provided by buyer)
Spray system Consists of pumps, hydraulic pressure gauge, stationary nozzle stents
Oscillating tube Radius 800mm
Oscillating angle IPX3: spray ±60° from vertical line to each side, total 120°
IPX4: spray ±180° from vertical line to each side, total 360°
Oscillating speed IPX3: 2*120° for 4s
IPX4: 2*360° for 12s
Spray nozzle Diameter: 0.4mm, removable
Ensure the water sprays in a line and without tolerance
Distance between two nozzles 50mm
Turntable diameter 1100mm
Turntable rotation speed 1-3 cycles/min
Water flow of each nozzle 0.07 L/min +5%
Test duration 1~999h999min, adjustable
Pressure gauge 80-150Kpa
Distance from nozzle to specimen surface 200mm
Material Oscillating tube / spray nozzle / sample turntable - Stainless steel
Chamber material Stainless steel, with observation window
Safety protection device Short circuit protection, grounding protection, water shortage protection, audible and visual alarm
DETAIL IMAGE

Water spray nozzle

PLC operation interface
