5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine
5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine
Specifications
Brand Name :
Haida
Model Number :
5119-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Material :
Steel
Maximum Load Capacity :
500kg
Driving Mode :
variable frequency motor and timing belt
Rate :
8 ~ 12 times / min
Capacity :
2000kg (Transcell senor )
Dimensions :
120cm x 80cm x 150cm
Certifications :
CE, ISO
Optional Features :
Customizable load capacity and dimensions
Impact Speed :
10-30 times/minute or specified
Keyword :
Furniture Testing Machine
Power :
Electronic
Testing Method :
Dynamic and static load testing
Maximum Capacity :
150KG
Adjustable Drop Height :
10mm to 180mm
Counter :
0-999
Description
5119-HD Wheelchair Brake Fatigue Tester
EQUIPMENT DETAILS
5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine
APPLICATIONS & TEST PURPOSE:

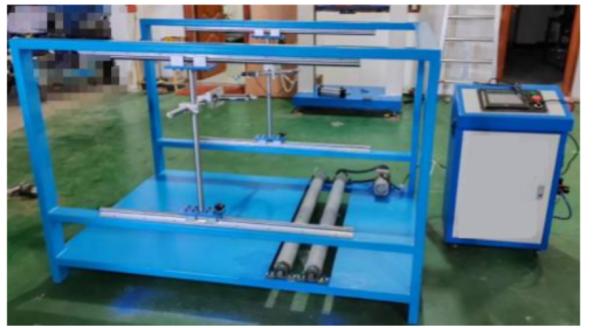

The test machine is used for the fatigue strength test of electric wheelchair brakes, simulating the repeated operation of humans. It adopts a touch screen program control, which is simple to operate, and can display the number of tests, test frequency, etc. It automatically shuts down when the set number of times is reached, and can display the number of tests and the force value of the test.

STANDARD:

ISO 7176-3.8; GB/T 18029

STANDARD FEATURES:
Feature Specification
Adjustable travel range 0-150mm
Control ways PLC + touch screen program control
Test frequency 1-20 times per minute
Test count 0-9,999,999
Movement Adjustable loading position for front/back and up/down movement
Force range 20KG
Force accuracy 0.5%FS
Voltage 220V, 50Hz
5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine 5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine 5119-HD Wheelchair Brake Fatigue Tester Furniture Testing Machine
