5114-HD Wheelchair Multi-Roller Fatigue Tester
5114-HD Wheelchair Multi-Roller Fatigue Tester
5114-HD Wheelchair Multi-Roller Fatigue Tester
5114-HD Wheelchair Multi-Roller Fatigue Tester
5114-HD Wheelchair Multi-Roller Fatigue Tester
5114-HD Wheelchair Multi-Roller Fatigue Tester
Specifications
Brand Name :
Haida
Model Number :
5114-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Name :
paper cup tube compressive strength tester,Paper testing instrument paper gsm tester/ bursting strength tester,paper testing instrument
Display :
LCD,Digital display
Feature :
easy to operate
Operation Method :
Automatic
Product Type :
Testing Instruments
Protection Device :
Induction type protection device
Control :
PLC control
Power :
Electronic,220V/50HZ,AC220V,grounded,power supply should be reliable
Usage :
Paper Testing Instrument,Universal Testing Machine,Paper/plastic material tensile strength testing instrument,Strength Testing Machine,Paper Core Crush Test Instrument
Product name :
LAB paper air permeability testing instrument,Package Drop Impact Reliability Tester / Zero Height Drop Instrument,Tensile Strength Tester,Paper Cardboard Pierce Strength Test Instrument,Paper Internal Ply Bond Testing Instrument
Warranty :
12 Months,1 Year,2 Years,1-2 Years,one year
Weight :
70 kg,91 kg,About 145 kg,75KG,64kg
Power supply :
6A,AC220V,220V 50Hz,50-60HZ,1 diameter
Application :
etc,tube compressive strength tester,plate,rubber,bar
Resolution :
1/20000,1 / 50000,0.1N,000,1mN
Capacity :
200,500,1000kg,20,10T customize
Accuracy :
± 0.5 %,±1%,±0.5%
Function :
compression test,Paper Tube Compressive Strength Test,Burst tester,tensile test,Paper Testing Instrument
Units switch :
Kgf,N.( Optional),Lbf
Testing speed :
10 ~ 200 mm/min
Dimension :
360*264*400mm,70 *34 * 60 cm,85*65*80cm
Measuring range :
250-5600 Kpa,10 ~ 1000mN
Display mode :
LCD display,digital mode
Design criteria :
ISO 2248,ASTM-D2210,TAPPI T403,GB/T4857-92,JIS Z0202-87
Description

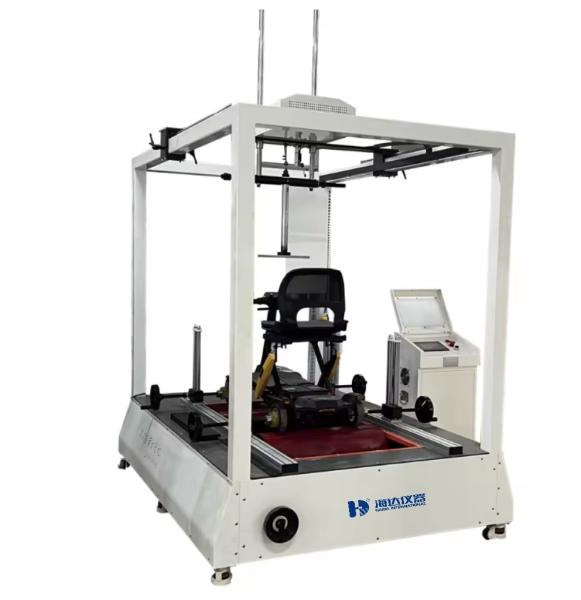

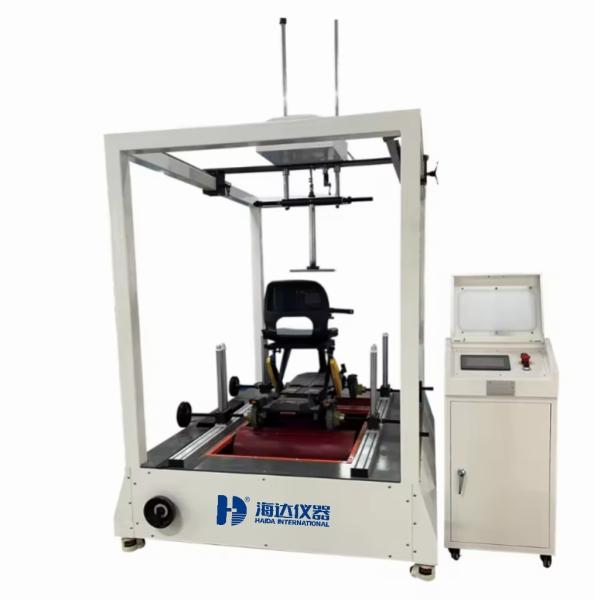

5114-HD Wheelchair Multi-Roller Fatigue Tester
EQUIPMENT DETAILS
5114-HD Wheelchair Multi-Roller Fatigue Tester
APPLICATIONS & TEST PURPOSE:

This machine performs road condition fatigue tests on wheelchairs, visually inspecting the extent of damage to the wheelchair. It is suitable for manual wheelchairs operated by the user or caregiver, as well as indoor and outdoor electric wheelchairs. Electric wheelchairs have three or more wheels mounted on two parallel drive axles, with no more than two driving wheels, and a speed not exceeding 5km/h. The machine is controlled by a PLC touch screen, allowing the setting of driving speed and distance. It can be set to distance mode or rotation mode, and will automatically shut off upon reaching the set distance.

STANDARD:

ISO 7176-8-5.8;GB/T 1802

STANDARD FAETURES:
Maximum load capacity ≥300kg
Speed Range 0-5KM/H Test speed: 1.0m/s (reference roller), 1.02—1.07m/s (driven roller)
Test times 0~999999 R can be set

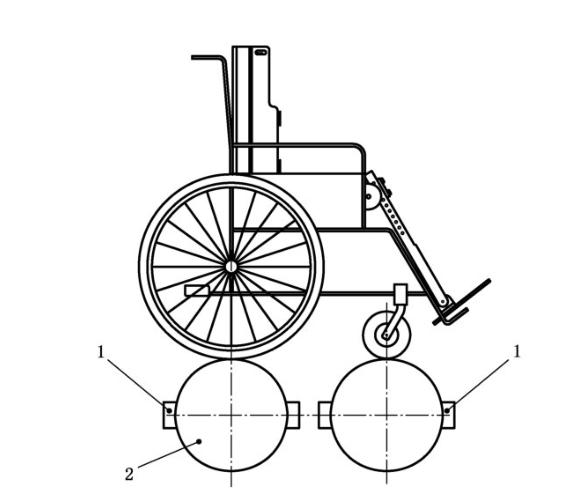

Obstacle height 36±3 x 12±1 x 500mm(W×H×L), interchangeable
Power supply 380v, 50hz
Roller quantity 2-3 rollers customized
Wheel diameter ∮250±25mm. Width 900mm, surface knurling to increase the friction coefficient
Wheel center distance adjustment range 400～1000mm, adjusted by screw handwheel
Dimensions Approx.2200mmx1260mmx2700mm
5114-HD Wheelchair Multi-Roller Fatigue Tester 5114-HD Wheelchair Multi-Roller Fatigue Tester 5114-HD Wheelchair Multi-Roller Fatigue Tester
