5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply
5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply
5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply
5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply
Specifications
Brand Name :
Haida
Model Number :
5121-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Material :
Steel
Optional Features :
Customizable load capacity and dimensions
Keyword :
Furniture Testing Machine
Power :
Electronic
Testing Method :
Dynamic and static load testing
Power Supply :
AC/DC
Use :
Chair
Type :
Test Equipment
Unit Switch :
gf，kgf, N, LBf, W, KN, T
Max Load Capacity :
500 lbs
Driving Mode :
variable frequency motor and timing belt
Power Source :
Electricity
Stroke :
762mm (+ 50mm)
Test Speed :
0～30 times/min
Tester Weight :
240KG
Lcd Display :
Yes
Dimension :
w*d*h (188*103*230cm)
Compressed Air Supply :
6 Bar
Dimensions :
50 x 30 x 40 inches
Adjustable Armrests :
Yes
Impact Sandbags Diameter :
16 inch 125 pounds standard sandbags
Tester Stand :
1800x1000mm
Description

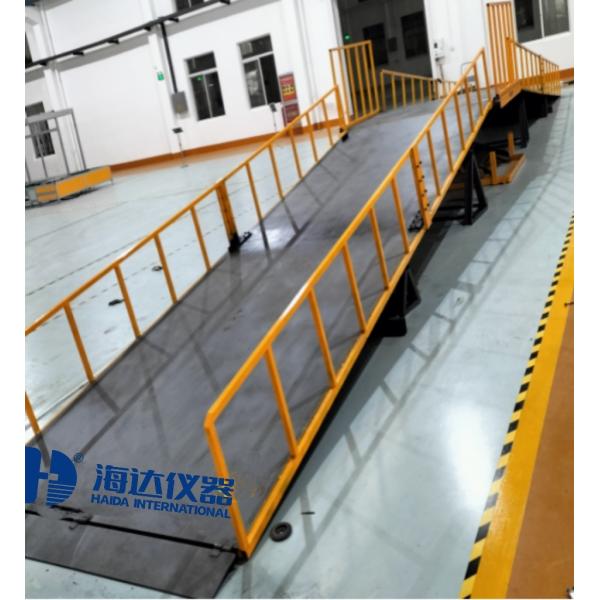

5121-HD Weelchair Dynamic Stability Test Platform
EQUIPMENT DETAILS

5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply

APPLICATIONS & TEST PURPOSE:

The test dummy is used for dynamic stability testing and climbing performance of wheelchairs. The entire machine is made of rigid materials welded and processed to ensure the strength and stability of the machine. The platform uses electric hydraulic lifting.

TEST STANDARD:

ISO 7176-2

STANDARD FEATURES:
  1. Dynamic testing requires the wheelchair to run on the platform, with the adjustable tilt table at 3-6-9-10 degrees;
  2. Ramp dimensions: width x length 2.5m x 10m, platform 2 meters. Customizable (if both sides of the ramp are required, please specify as the price will differ)
  3. Made of rigid materials welded together; ensuring the strength and stability of the machine.
  4. Secured with screws for easy adjustment of angles.
  5. Angle measuring device: used to measure the angle between the test platform and the horizontal plane, with a digital display showing the angle, measurement accuracy ±0.2.
  6. Platform uses electric hydraulic platform lifting.
  7. There is a movable support under the ramp for safety and stability assurance.
  8. Surface friction coefficient 0.7-1. Anti-slip treatment applied.
5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply 5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply 5121-HD Weelchair Dynamic Stability Test Platform with AC/DC Power Supply
