5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm
5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm
5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm
5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm
Specifications
Brand Name :
Haida
Model Number :
5122-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Material :
Steel
Optional Features :
Customizable load capacity and dimensions
Keyword :
Furniture Testing Machine
Power :
Electronic
Testing Method :
Dynamic and static load testing
Power Supply :
AC/DC
Use :
Chair
Type :
Test Equipment
Unit Switch :
gf，kgf, N, LBf, W, KN, T
Driving Mode :
variable frequency motor and timing belt
Power Source :
Electricity
Stroke :
762mm (+ 50mm)
Lcd Display :
Yes
Dimension :
w*d*h (188*103*230cm)
Adjustable Armrests :
Yes
Description

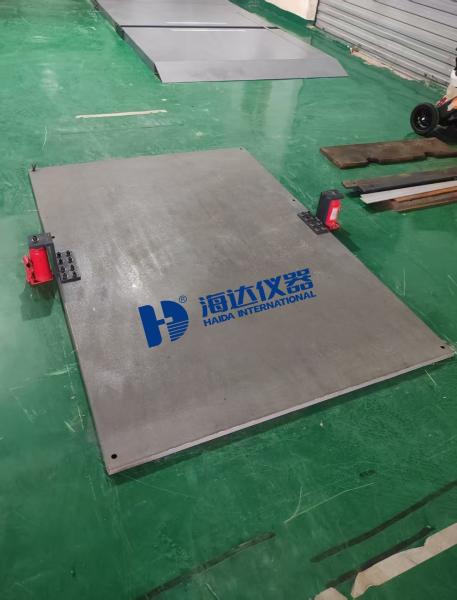

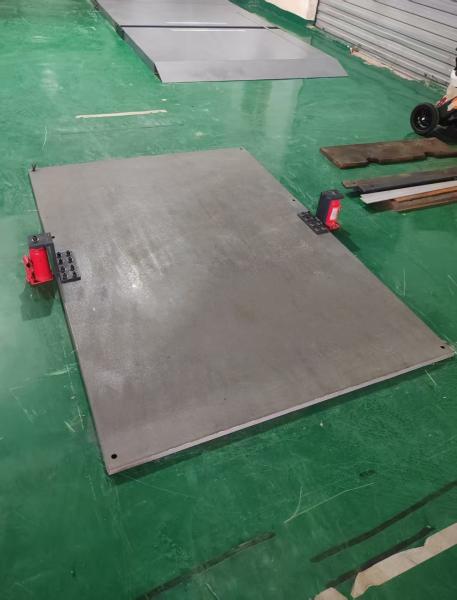

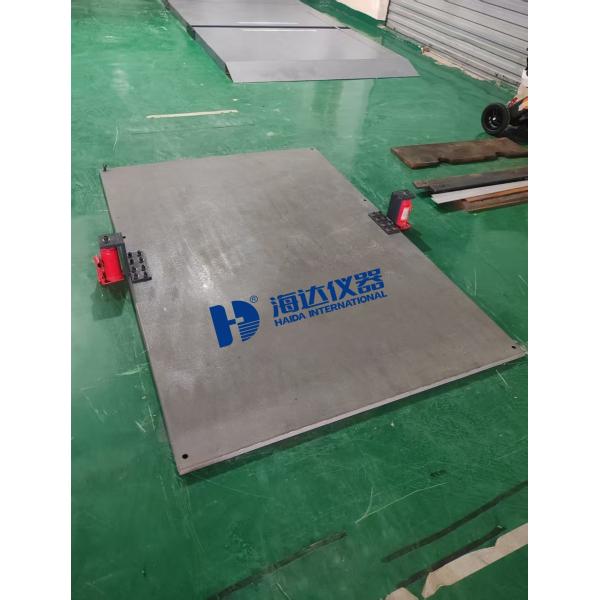

5122-HD Electric Wheelchair Obstacle Test Bench
EQUIPMENT DETAILS
5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm
APPLICATIONS & TEST PURPOSE:

This machine performs road condition fatigue tests on wheelchairs, visually inspecting the extent of damage to the wheelchair. It is suitable for manual wheelchairs operated by the user or caregiver, as well as indoor and outdoor electric wheelchairs. Electric wheelchairs have three or more wheels mounted on two parallel drive axles, with no more than two driving wheels, and a speed not exceeding 5km/h. The machine is controlled by a PLC touch screen, allowing the setting of driving speed and distance. It can be set to distance mode or rotation mode, and will automatically shut off upon reaching the set distance.

STANDARD:

ISO 7176-10.8;GB/T 18029.10-2009

STANDARD FEATURES:
Platform dimensions 2x4 m
Obstacle clearance height 25, 40, 80mm
Active deep groove 100*100
5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm 5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm 5122-HD Electric Wheelchair Obstacle Test Bench 188*103*230cm
