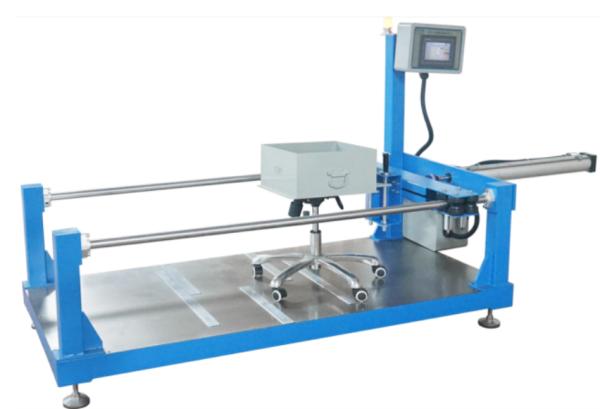

PLC Controlled 5128-HD Chair Caster Durability Tester
PLC Controlled 5128-HD Chair Caster Durability Tester
Specifications
Brand Name :
Haida
Model Number :
5128-HD
Certification :
CE、ISO
Place of Origin :
China
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
300 Sets per Month
Delivery Time :
20 days after order confirmed
Packaging Details :
each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Certifications :
CE, ISO
Control Method :
PLC control system
Test Rate :
10 to 30 times / min
Stroke :
762mm (+ 50mm)
Country Of Origin :
China
Maximum Load Capacity :
500kg
Display :
LCD touch screen
Dimension :
w*d*h (188*103*230cm)
Power Supply :
220V/50Hz
Adjustable Drop Height :
10mm to 180mm
Machine Dimensions :
(W x D x H) 2950*1260*930 MM
Machine Size :
270*85*80cm
Weight Sensor :
200Kg
Usage :
Testing the durability and safety of chairs
Use :
Chair
Description

5128-HD Chair Caster Durability Tester

EQUIPMENT DETAILS
PLC Controlled 5128-HD Chair Caster Durability Tester
Product description:

The machine is designed for evaluating the ability of chair base and casters to withstand fatigue stresses and wear caused by moving the chair back and forth.

GENERAL SPECIFICATIONS

Packaging Dimensions: (W*D*H) 2600*1130*1550mm

Power supply source: single-phase, 220V±10%, 50/60Hz (can be appointed)

Gross Weight: 659kg

HS Code: 9024800000

DESIGN STANDARD: Bifma x 5.1-2017
STANDARD FEATURES
Load weight 122KG(Contains chair construction components)
Test speed 10±2 times /min
Test stroke 800mm(Standard required : 762±50mm)
Seat height can be measured 260～400mm
Display Touch screen
Control mode PLC mode
Sample size Base diameter ≤780mm
Testing cycles 1-999,999(can be adjusted)
Without obstacle:98000 cycles With obstacle:2000 cycles
Machine size 2950mmx1050mmx1600mm(L*W*H)
Power AC /220V, 50HZ, 100W
Air pressure ≥6kg/cm²
Configuration:
Items Touch Screen 1 piece
PLC 1 piece
cylinder 1 piece, Diameter: 80mm; route:800mm
Weight box 1 piece(13kg)
Obstacles 1 set(5 pieces)
Fixing clamps 1 pieces
Test Procedures
  1. The chair or chair base shall be cycled 2,000 cycles over the obstacles as shown in Figure 16b and then 98,000 cycles on a smooth, hard surface (steel preferred) without obstacles.
  2. At the conclusion of cycling, a 22 N (5 lbf.) pull force shall be applied to each caster in line with the caster stem centerline.
Test images:
Test station 1 station
Control method Touch screen program control
Obstacle installation method 3 types
Obstacle height 6.4 mm; 12.7 mm; 20.0 mm customizable
Wheel diameter 75-150MM
Speed 1.0m/s ± 0.1 m/s
Power supply 380V
