Low Temperature Closed Flash Point Instrument Automatic Temperature Control
Low Temperature Closed Flash Point Instrument Automatic Temperature Control
Low Temperature Closed Flash Point Instrument Automatic Temperature Control
Low Temperature Closed Flash Point Instrument Automatic Temperature Control
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SH105D
Certification :
ISO 1523
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden box
Power Supply     :
AC 220V±10%, 50 Hz
Flash point measurement range :
-30~100°C
Measurement accuracy :
Repeatability: less than 2°C Reproducibility: less than 2°C
Temperature controlling accuracy :
±0.1°C
Igniter :
an electron igniter
Refrigeration type :
It uses semiconductor for refrigeration (It connects to outer cooling water)
Total power consumption :
not more than 300 W
Ambient temperature :
5°C~30°C
Relative humidity :
30~80%
Size :
370mm × 280mm × 380mm (L × wide × Height)
Description

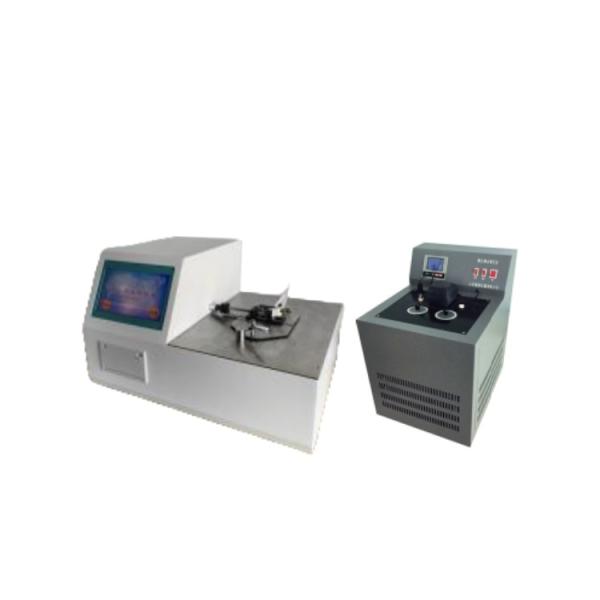

SH105D low-temperature closed flash point instrument automatic temperature control balance method

Low Temperature Closed Flash Point Instrument Automatic Temperature Control

SH105D balance method low temperature closed flash point Tester is designed and manufactured in accordance with the requirements of the People's Republic of China standard GB/T 5208 "determination of flash point rapid balance closed cup method".

The instrument also complies with ISO 1523 and ISO 3679 standards.

This instrument takes the advanced electronic temperature control instrument as the core, is equipped with the appropriate interface circuit, realizes the automation of temperature control, has the heating power automatic switch, the temperature automatic control and other functions.

ISO 1523 ISO 3679

Low Temp Closed Cup Flash Point Tester of Gasoline

ISO 3679 Petroleum Flash Point Testing Equipment

Rapid Low Temperature Closed Cup Flash Point Tester

Product model SH105D
Product name Equilibrium method low temperature closed flash point instrument
Manufacturer Shandong Shengtai Instrument Co., Ltd
Test items It can meet the requirements of petroleum, chemical, coating, paint, railway, aviation, electric power, commodity inspection and scientific research institutions for the rapid test of closed flash point of petroleum products
Compliance with standards Standard GB/T 5208 Determination of Flash Point Rapid Equilibrium Closed Cup Method
Simple technical feat It is suitable for testing the flash point of all kinds of paints, paints, adhesives, solvents, petroleum and related products with the closed cup flash point in the range of - 30 ℃ to+100 ℃.

The instrument is simple to operate, reasonable structure, accurate detection, stable performance, intuitive display, is an ideal substitute for imported instruments, can meet the petroleum, chemical, coating, paint, railway, aviation, electric power, commodity inspection and scientific research units on petroleum products closed flash point rapid test requirements.

This instrument is especially suitable for testing the flash point of all kinds of colors, paints, adhesives, solvents, petroleum and related products in the range of -30℃ ~ +100℃.

Main technical indexes and parameters

Upgraded to a 7-inch touch-color display

Flash point detection range :(-30 ~ +100)℃;

Sample Volume :2ml

Measurement precision: the absolute difference between the two experimental results is less than 2℃ (for the same operator);

The absolute difference between the two experimental results is less than 3℃ (for different operators);

Temp accuracy: ±0.1℃;

Ignition device: electronic igniter ignition;

Refrigeration mode: semiconductor internal refrigeration and external compressor refrigeration cycle

After upgrade, 199 sets of historical data can be stored for easy query.

Standard: in line with the Chinese standard GB/T5208-2008, GB5207, GB7634, GB/T21790

Storage: 199 sets of historical data can be stored for easy query;

Power Supply AC 220V±10%, 50 Hz
Flash point measurement range -30~100°C
Measurement accuracy Repeatability: less than 2°C
Reproducibility: less than 2°C
Temperature controlling accuracy ±0.1°C
Igniter an electron igniter
Refrigeration type It uses semiconductor for refrigeration (It connects to outer cooling water);
Total power consumption not more than 300 W
Ambient temperature 5°C~30°C
Relative humidity 30~80%
Size: 370mm × 280mm × 380mm (L × wide × Height) Weight: 15KG
Circulating bath size: 450 * 480 * 580mm Weight: 28kg

Packing list

S/N Name Unit Quantity
1 Full-automatic low-temperature closed flash point tester+low-temperature circulation device set 1
2 FuseΦ5×20 10A piece 2
3 power cord(250V 10A) piece 1
4 Printing paper piece 1
5 Connecting water pipe (inner diameter Φ 8) piece 1
6 instruction manual piece 1
7 Packing list copy 1
8 Certificate warranty card copy 1
