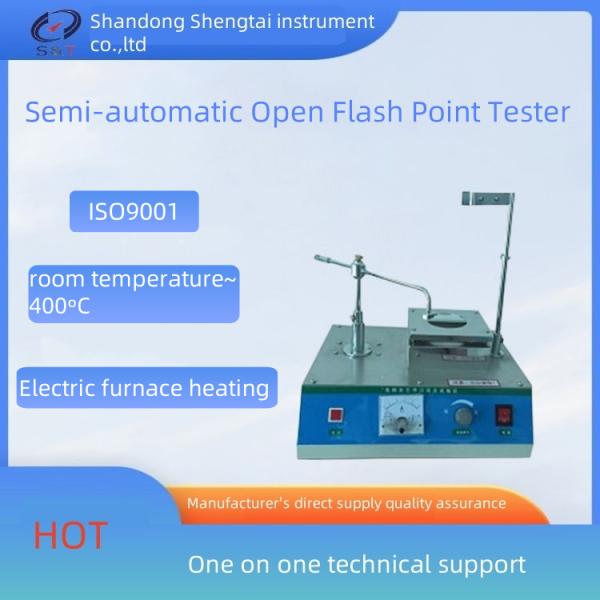

SD3536 Open Flash Point Tester Semi Automatic ASTM D92
SD3536 Open Flash Point Tester Semi Automatic ASTM D92
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SD3536
Certification :
ASTM D92
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 sets/year
Delivery Time :
7-15 work days
Packaging Details :
wooden case
Power supply :
AC(220±10%)V, 50Hz
Heating device :
electric furnace heating, no flame, explosion-proof, power 0-600W continuous adjustable
Temperature control :
room temperature ~ 400℃, grading 2℃, technical conditions in line with the technical conditions of liquid thermometer used in petroleum products test GB/T514 provisions
Temperature display :
LED screen shows temperature parameters. The range is 0ºC~400ºC, accuracy is 0.1ºC
Ignition device :
(1) Ignition source: gas (or other civil combustible gas, the same below); (2) Nozzle aperture: 0.6 〜 0.8 mm
Temperature sensor :
RTD, PT100
Ambient temperature :
(-10~50)ºC
Relative humidity :
≤85%
Maximum power consumption :
650W
Package size :
380mm * 290m * 260mm
Description

SD3536 Semi Automatic Open Flash Point Tester ASTM D92 Room Temp～400 ℃ Scale Division 2℃

SD3536 Open Flash Point Tester Semi Automatic ASTM D92

SD3536 Semi-automatic open flash point tester is in according to the standard of the People's Republic of China GB/T3536-2008 "petroleum products determination of flash point and burning point Cleveland KaiKouBei act the requirements stipulated in the design and manufacture, is suitable for the determination of the fuel oil and oil products outside the mouth flash point is below 79 ℃, flash point and burning point also support GB/T1671-2008 plasticizer on the determination of flash point.

Semi-automatic Open Flash Point Tester

Semi-Automatic Cleveland Open Cup Flash Point Tester

Semi-Automatic Cleveland Open Cup Flash Point Tester GB/T3536-2008

SD3536Semi-automatic Cleveland Open-Cup Flash Point Tester

Main technical parameters and indexes

1. Power supply AC(220±10%)V, 50Hz.
2. Heating device electric furnace heating, no flame, explosion-proof, power 0-600W continuous adjustable.
3. Temperature control room temperature ~ 400℃, grading 2℃, technical conditions in line with the technical conditions of liquid thermometer used in petroleum products test GB/T514 provisions
4. Temperature display LED screen shows temperature parameters. The range is 0ºC~400ºC, accuracy is 0.1ºC.
5. Ignition device

(1) Ignition source: gas (or other civil combustible gas, the same below);

(2) Nozzle aperture: 0.6 〜 0.8 mm.
6. Temperature sensor RTD, PT100
7. Ambient temperature (-10~50)ºC
8. Relative humidity ≤85%
9.Maximum power consumption 650W

10. Package size: 380mm * 290m * 260mm Weight: 10kg

Packing List

S/N NAME UNIT Quantity Remarks
1 Open flash point meter set 1
2 Special brass oil cup piece 1
3 Special thermometer piece 1
4 instructions copy 1
5 Certificate of conformity warranty card copy 1

Customers need to provide their own: coal gas source and coal gas source required pressure reducing valve
