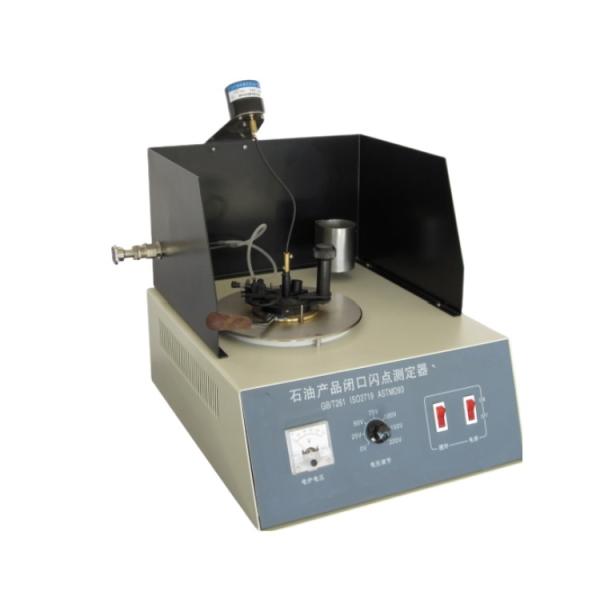

Transformer Oil Cold Pressed Oil Flash Point SD261 Closed Cup Flash Point Apparatus
Transformer Oil Cold Pressed Oil Flash Point SD261 Closed Cup Flash Point Apparatus
Transformer Oil Cold Pressed Oil Flash Point SD261 Closed Cup Flash Point Apparatus
Transformer Oil Cold Pressed Oil Flash Point SD261 Closed Cup Flash Point Apparatus
Transformer Oil Cold Pressed Oil Flash Point SD261 Closed Cup Flash Point Apparatus
Transformer Oil Cold Pressed Oil Flash Point SD261 Closed Cup Flash Point Apparatus
Specifications
Brand Name :
Shengtai Instrument
Model Number :
SD261
Certification :
ASTM D93
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000sets/year
Delivery Time :
7-15work-days
Packaging Details :
wooden case
working power supply :
AC220V±10%, 50Hz.
Heating device :
heating power from 0 ~ 600W continuously adjustable
The sample heating rate :
1 ~ 12℃/ min.
Standard oil cup :
Inner diameter: 50.7 ~ 50.8 mm. Depth: 55.7 ~ 56.0 mm. Test capacity notch depth: 33.9 ~ 34.3 mm. Test capacity: about 70 ml
Ignition device :
ignition source: gas Firearm aperture: 0.8mm
Thermometer :
bar mercury thermometer, in line with GB/T 261-2008 standard requirements.
Description

Diesel oil above 40 ℃, transformer oil, cold pressed oil flash point SD261 closed flash point meter

Transformer Oil Cold Pressed Oil Flash Point SD261 Closed Cup Flash Point Apparatus

SD261 closed mouth flash point meter is designed and manufactured in accordance with the requirements of the national standard GB/T 261-2008 "determination of flash point Binsky-Martin closed mouth cup method". It is suitable for the determination of the flash point of petroleum product samples with a flash point above 40℃ by the method specified in the GB/T 261-2008 standard.

GB/T 261-2008manual Binsky-Martin closed cup flash point tester for laboratory testing

GB/T 261-2008manual Binsky-Martin closed cup flash point tester for oil testing

Portable Manual Binsky-Martin Closed Cup Flash Point Tester Price

Product model SH105B
Test sample Petroleum, electric power, chemicals, products
Compliance with standards GB261-2008 ASTM, D93 Conforming to ISO-2719, ASTM D93, Pensky-Marten closed cup method
Simple technical features or parameters Air source ignition, manual timing and visual observation

I. Main technical features

Heating power continuous, stepless adjustable.

II. Main technical parameters and indicators

working power supply AC220V±10%, 50Hz.
Heating device heating power from 0 ~ 600W continuously adjustable.
The sample heating rate 1 ~ 12℃/ min.
Standard oil cup

Inner diameter: 50.7 ~ 50.8 mm.

Depth: 55.7 ~ 56.0 mm.

Test capacity notch depth: 33.9 ~ 34.3 mm.

Test capacity: about 70 ml
Ignition device

ignition source: gas

Firearm aperture: 0.8mm
Thermometer bar mercury thermometer, in line with GB/T 261-2008 standard requirements.

Packing list:

The host 1
Oil cup 1
Thermometer 1
Instructions 1
Certificate warranty card 1

Customers need to provide their own: coal gas source and coal gas source required pressure reducing valve
