Specifications
Certification :
CE
Cooling Design :
Double-Layer Shell with Fan Cooling
Product Type :
Laboratory Box-Type Furnace
Temperature Control :
50-Segment Programmable PID Control
Safety Protection :
Over-Heat Alarm Protection
Delivery Time :
7~15
Furnace Lining :
Polycrystalline Mullite Fiber
Max Temperature :
1200°C
Heating Element :
Resistance Wire Heating
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Working Temperature :
1100°C
Application :
Sintering, Melting and Material Analysis
MOQ :
1
Chamber Volume :
1L~729L, Customizable
Place of Origin :
CHINA
Brand Name :
TENCAN
Description

Muffle Furnace for Laboratory and Industrial Heat Treatment

Our Muffle Furnace, also known as a box-type resistance furnace or high-temperature box furnace, is designed for precise, clean, and stable heat treatment of metals, ceramics, powders, chemicals, and compound materials. Heated by electric heating elements and equipped with an independent muffle chamber, it allows samples to be sintered, ashed, melted, annealed, or heat-treated without direct contact with the heating elements, helping reduce contamination and improve process consistency.

Built for both research and production environments, this muffle furnace provides accurate temperature control, uniform heat distribution, and reliable safety performance. It is widely used in materials science, chemical analysis, ceramic processing, powder metallurgy, metal heat treatment, laboratory testing, and other high-temperature applications.

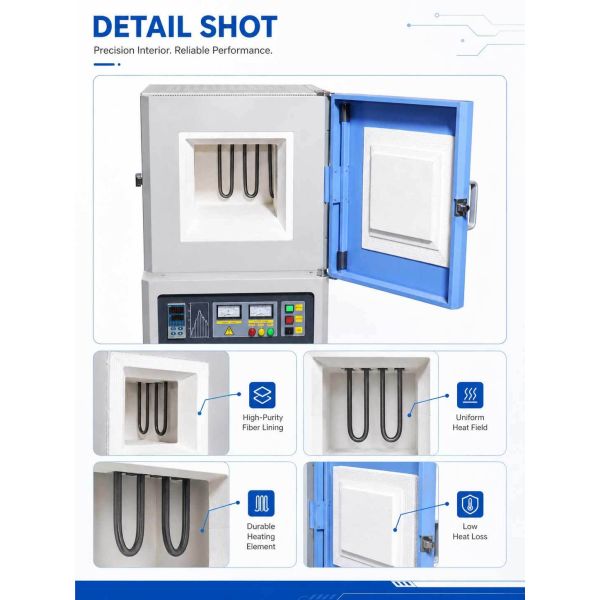

The furnace chamber is made of polycrystalline mullite fiber, offering low thermal conductivity, high structural strength, excellent thermal insulation, and improved energy efficiency. A reinforced composite furnace roof helps prevent deformation or collapse during long-term high-temperature operation, ensuring stable performance and extended service life.

This series of box furnaces is suitable for universities, research institutes, laboratories, and industrial enterprises that require dependable equipment for sintering, melting, ashing, analysis, and heat treatment of metallic, non-metallic, and composite materials.

1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications1200°C Muffle Furnace with 50-Segment PID Control and Polycrystalline Mullite Fiber Lining for High-Temperature Applications

Product Features

  • Maximum temperature range: room temperature to 1800°C.
  • Available chamber capacities from 1 L to 1000 L.
  • Heating element options include FeCrAl resistance wire, U-shaped silicon carbide heating elements, and U-shaped molybdenum disilicide heating elements.
  • Customizable top-opening or side-opening door design helps keep operators away from direct heat exposure.

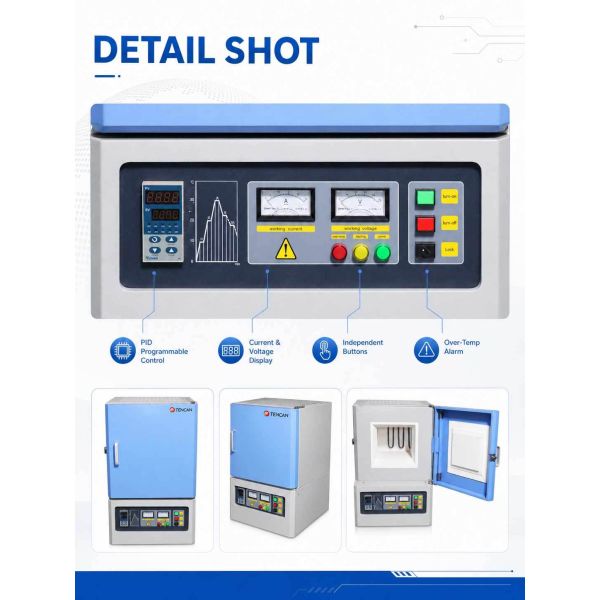

  • Intelligent 50-segment programmable automatic temperature control.
  • Built-in over-temperature alarm for safer operation.

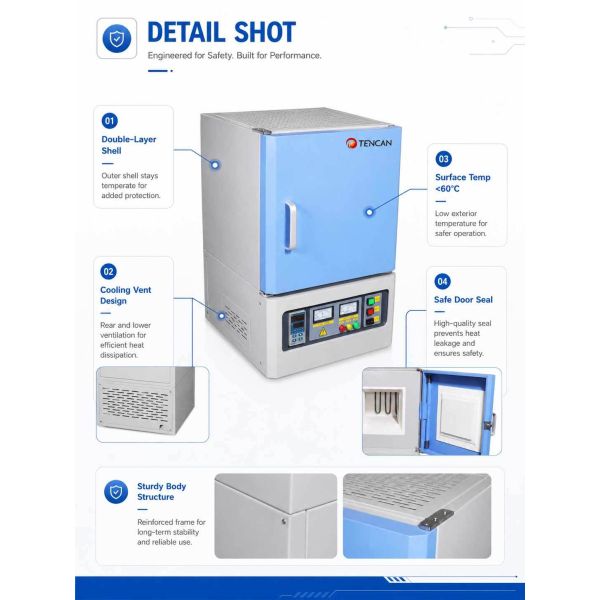

  • Double-layer air-cooling structure with cooling fans helps keep the outer shell temperature below 60°C.

1200°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
mm		 Volume
 Power
 Phase Thermocouple Type
TC-12N-1 1200 1100 100×100×100 1 0.8 1 Type K
TC-12N-3 1200 1100 150×150×150 3 2.5 1 Type K
TC-12N-8 1200 1100 200×200×200 8 5 1 Type K
TC-12N-12 1200 1100 200×200×300 12 6 1 Type K
TC-12N-36 1200 1100 300×300×400 36 10 3 Type K
TC-12N-64 1200 1100 400×400×400 64 16 3 Type K
TC-12N-125 1200 1100 500×500×500 125 25 3 Type K
TC-12N-216 1200 1100 600×600×600 216 36 3 Type K
TC-12N-512 1200 1100 800×800×800 512 64 3 Type K
TC-12N-729 1200 1100 900×900×900 729 80 3 Type K


1400°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
mm		 Volume
 Power
 Phase Thermocouple Type
TC-14S-1 1400 1300 100×100×100 1 1 1 Type S
TC-14S-3 1400 1300 150×150×150 3 3 1 Type S
TC-14S-8 1400 1300 200×200×200 8 5 1 Type S
TC-14S-12 1400 1300 200×200×300 12 7 1 Type S
TC-14S-36 1400 1300 300×300×400 36 11 3 Type S
TC-14S-64 1400 1300 400×400×400 64 18 3 Type S
TC-14S-125 1400 1300 500×500×500 125 27 3 Type S
TC-14S-216 1400 1300 600×600×600 216 40 3 Type S
TC-14S-512 1400 1300 800×800×800 512 70 3 Type S
TC-14S-729 1400 1300 900×900×900 729 88 3 Type S

1700°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
mm		 Volume
 Power
 Phase Thermocouple Type
TC-17M-1 1700 1600 100×100×100 1 1 1 Type B
TC-17M-3 1700 1600 150×150×150 3 4 1 Type B
TC-17M-8 1700 1600 200×200×200 8 7 1 Type B
TC-17M-12 1700 1600 200×200×300 12 8 1 Type B
TC-17M-36 1700 1600 300×300×400 36 12 3 Type B
TC-17M-64 1700 1600 400×400×400 64 20 3 Type B
TC-17M-125 1700 1600 500×500×500 125 30 3 Type B
TC-17M-216 1700 1600 600×600×600 216 45 3 Type B
TC-17M-512 1700 1600 800×800×800 512 80 3 Type B
TC-17M-729 1700 1600 900×900×900 729 96 3 Type B

1800°C Box Furnace Technical Specifications

Model Max. Temperature
 Working Temperature
 Chamber Size
mm		 Volume
 Power
 Phase Thermocouple Type
TC-18HM-1 1800 1700 100×100×100 1 2 1 Type B
TC-18HM-3 1800 1700 150×150×150 3 6 1 Type B
TC-18HM-8 1800 1700 200×200×200 8 8 1 Type B
TC-18HM-12 1800 1700 200×200×300 12 9 1 Type B
TC-18HM-36 1800 1700 300×300×400 36 15 3 Type B
TC-18HM-64 1800 1700 400×400×400 64 25 3 Type B
TC-18HM-125 1800 1700 500×500×500 125 35 3 Type B
TC-18HM-216 1800 1700 600×600×600 216 50 3 Type B

Note: The above specifications are standard models. Custom chamber sizes and configurations are available upon request.


Related Accessories

Standard Accessories

  • Furnace door insulation brick
  • High-temperature gloves
  • Crucible tongs
  • User manual
  • Spare heating elements for 1400°C and 1700°C models

Optional Accessories

  • HD touchscreen controller
  • Exhaust port
  • Observation window
  • Multi-layer kiln furniture
  • Alumina crucible
  • Communication software
