Specifications
Model Number :
TC-14ST
Furnace Tube :
High-Purity Quartz Tube or Alumina Tube
Safety Protection :
Over-Temperature, Leakage Protection and Auto Power-Off
Delivery Time :
7~15
Control Accuracy :
±1°C Stable Temperature Control
Tube Size Options :
40~120mm Diameter, 300~450mm Heating Zone
Certification :
CE
Cooling Structure :
Double-Layer Air-Cooled Shell, Surface Below 50°C
MOQ :
1
Heating Temperature :
1200°C / 1400°C / 1600°C Models Available
Control System :
30-Segment Programmable Temperature Controller
Place of Origin :
CHINA
Atmosphere Control :
Vacuum, Nitrogen, Argon and Other Inert Gases Available
Heating System :
Resistance Wire / SiC / MoSi2 Heating Optional
Brand Name :
TENCAN
Vacuum Capability :
Vacuum Degree Up to -0.1MPa
Description

Product Introduction

The TENCAN high-temperature vacuum tube furnace is built with a high-purity quartz tube or high-purity alumina tube as the furnace tube. With selectable temperature ranges from 300°C to 1600°C, it can meet different processing requirements for laboratory research, material testing, heat treatment, and small-scale production.

This series is designed for users who need a clean, stable, and controllable heating environment. It features reliable operation, simple control, accurate temperature regulation, excellent thermal insulation, and good temperature uniformity across the heating zone. The furnace can also work under vacuum conditions or with gas atmosphere protection, making it suitable for vacuum sintering, inert atmosphere processing, reducing atmosphere experiments, and high-temperature material treatment.

TENCAN vacuum tube furnaces are widely used in universities, research institutes, material laboratories, industrial and mining enterprises, and production facilities. They are suitable for metal material processing, high-temperature sintering experiments, quality inspection, ceramic material research, powder metallurgy testing, and small-batch thermal processing applications.


TENCAN TC-14ST 1400C Vacuum Tube Furnace SiC Heater S-Type Thermocouple High-Temp Alumina Tube Lab Split Sintering Oven

Technical Parameters

Standard 1200°C Series

Model Tube Diameter × Heating Zone Length Power Max. Temperature Working Temperature Thermocouple Furnace Tube Material
TC-12NT-40/300 40 × 300 mm 3 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-60/300 60 × 300 mm 3 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-80/300 80 × 300 mm 5 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-100/300 100 × 300 mm 5 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-120/300 120 × 300 mm 6 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-40/450 40 × 450 mm 3 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-60/450 60 × 450 mm 3 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-80/450 80 × 450 mm 5 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-100/450 100 × 450 mm 5 kW 1200°C 1100°C Type K Quartz Tube
TC-12NT-120/450 120 × 450 mm 6 kW 1200°C 1100°C Type K Quartz Tube

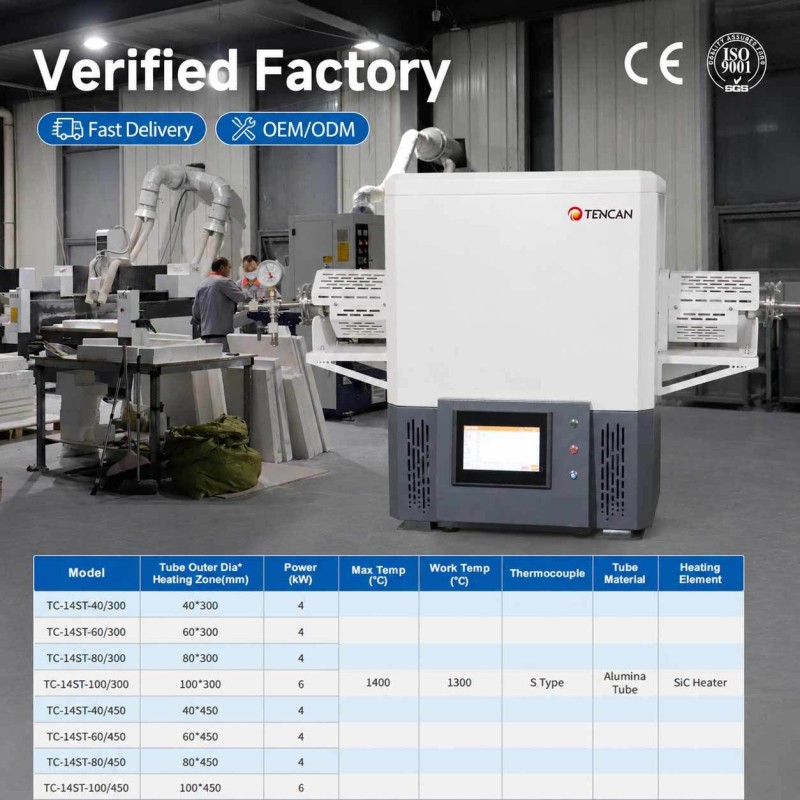

Standard 1400°C Series

Model Tube Diameter × Heating Zone Length Power Max. Temperature Working Temperature Thermocouple Furnace Tube Material Heating Element
TC-14ST-40/300 40 × 300 mm 4 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-60/300 60 × 300 mm 4 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-80/300 80 × 300 mm 4 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-100/300 100 × 300 mm 6 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-120/300 120 × 300 mm 6 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-40/450 40 × 450 mm 4 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-60/450 60 × 450 mm 4 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-80/450 80 × 450 mm 4 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-100/450 100 × 450 mm 6 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod
TC-14ST-120/450 120 × 450 mm 6 kW 1400°C 1300°C Type S Corundum Tube Silicon Carbide Rod

Standard 1600°C Series

Model Tube Diameter × Heating Zone Length Power Max. Temperature Working Temperature Thermocouple Furnace Tube Material Heating Element
TC-16MT-40/300 40 × 300 mm 4 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-60/300 60 × 300 mm 4 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-80/300 80 × 300 mm 4 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-100/300 100 × 300 mm 6 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-120/300 120 × 300 mm 6 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-40/450 40 × 450 mm 5 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-60/450 60 × 450 mm 5 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-80/450 80 × 450 mm 5 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-100/450 100 × 450 mm 7 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element
TC-16MT-120/450 120 × 450 mm 7 kW 1600°C 1500°C Type B Corundum Tube MoSi₂ Heating Element

TENCAN TC-14ST 1400C Vacuum Tube Furnace SiC Heater S-Type Thermocouple High-Temp Alumina Tube Lab Split Sintering Oven

Product Features

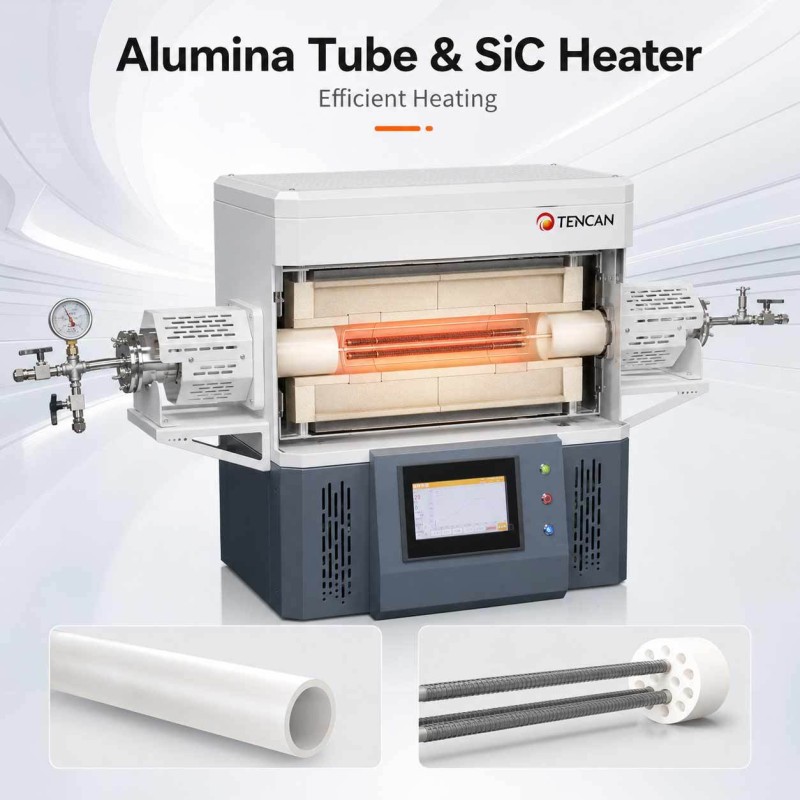

Available maximum temperature options: 1200°C with resistance wire heating, 1400°C with silicon carbide heating elements, and 1600°C with MoSi₂ heating elements.

Equipped with an intelligent 50-segment programmable temperature controller for automatic heating programs and precise process control.

The furnace shell adopts a double-layer air-cooling structure, helping keep the external surface temperature below 50°C during operation.

The furnace chamber is made of high-quality alumina polycrystalline fiber insulation, formed by vacuum-forming technology for excellent heat preservation, low heat loss, and improved energy efficiency.

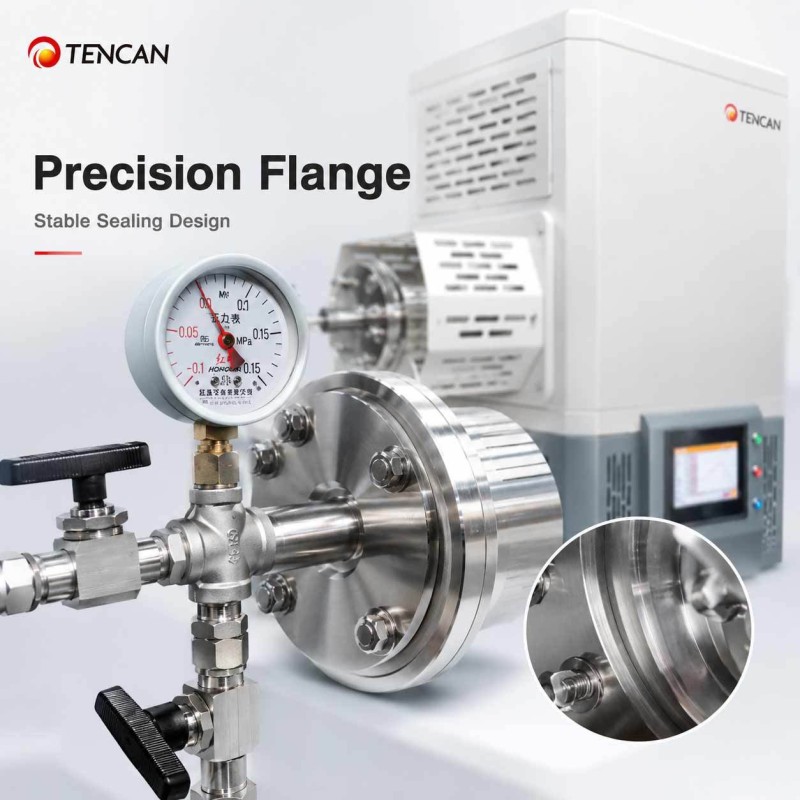

304 stainless steel double-sealed flanges provide reliable sealing performance for vacuum and controlled atmosphere applications.

Adjustable flange support structures at both ends help reduce stress on the furnace tube and extend tube service life.

Over-temperature protection automatically cuts off power when the temperature exceeds the allowed setting value.

Electrical leakage protection automatically shuts off the power when leakage is detected, improving operational safety.

Heating rate: ≤20°C/min.

Temperature control accuracy: ±1°C.

Maximum vacuum level: -0.1 MPa.

Optional molecular pump system is available, with vacuum level up to 7 × 10⁻⁴ Pa.
