TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth
Specifications
Model Number :
TC-BDF-1L
Maximum Temperature :
1700°C (3092°F)
Heating Speed :
0 - 40°C/min (Adjustable)
Thermocouple Type :
B Type (Platinum Rhodium)
Delivery Time :
7~15
Power Supply :
2kW (Domestic Circuit Compatible)
Heating Element :
4 Pcs Ring-shaped MoSi2
Loading Type :
Electric Bottom Lifting Platform
Chamber Dimensions :
100mm * 100mm (H)
MOQ :
1
Temperature Accuracy :
±1°C
Application Range :
Zirconia Dentures & Structural Ceramics
Control System :
7" HD Touch Screen (30 Programs)
Place of Origin :
CHINA
Certification :
CE
Brand Name :
TENCAN
Description

Product Introduction

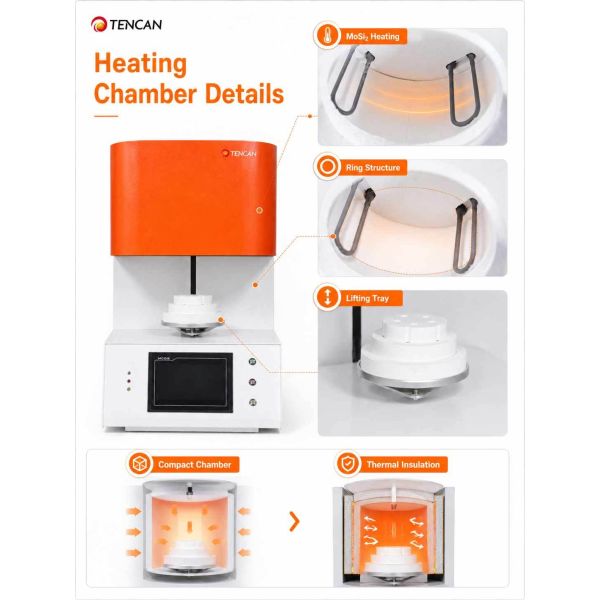

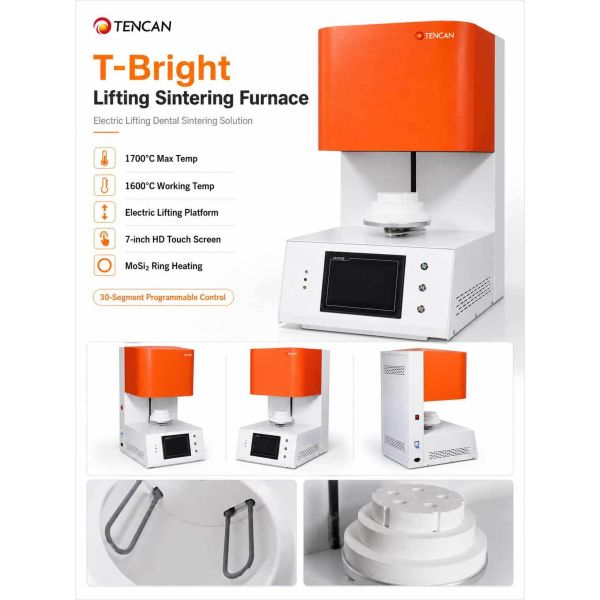

The TENCAN Lifting Dental Sintering Furnace features an electrically driven lifting platform that positions the sintering crucible accurately and quickly inside the furnace chamber. Four molybdenum disilicide heating elements are arranged in a circular configuration to provide uniform heat distribution and consistent sintering results.

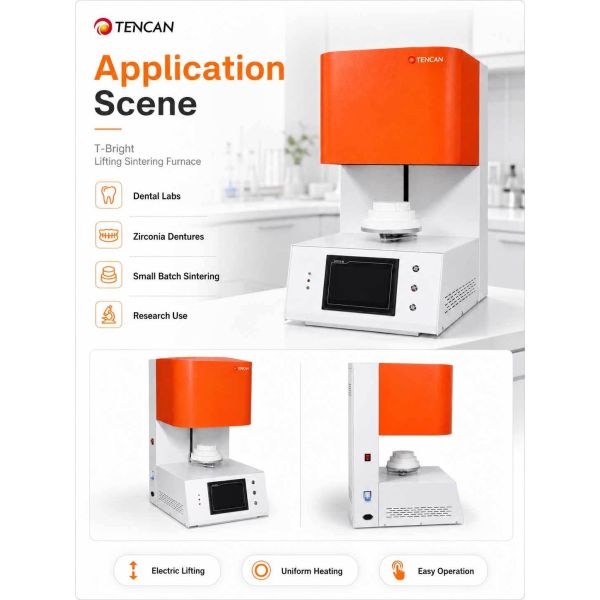

Specially designed for zirconia dental restorations, the furnace helps produce crowns, bridges, and dentures with improved translucency, uniform coloration, and a more natural appearance. Its stable temperature control and even heating performance make it suitable for dental laboratories and zirconia restoration processing centers.

TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth

TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth

TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth

TENCAN TC-BDF-1L 1700C Dental Lab Zirconia Porcelain Sintering Furnace 1C Accuracy MoSi2 Heating Elements for Tooth

Product Features

  • Specially designed for sintering zirconia dental restorations, structural ceramics, polymer ceramics, and other small-batch laboratory samples.
  • With a rated power of only 2 kW, the furnace does not require a high-capacity industrial power supply and can operate using a standard household electrical circuit.
  • Fast heating performance with an adjustable heating rate of 0–40°C/min.
  • Equipped with a 7-inch high-definition touchscreen for convenient operation and storage of up to 30 customizable heating programs.
  • Four molybdenum disilicide heating elements are arranged in a circular configuration to provide excellent temperature uniformity throughout the furnace chamber.

Technical Specifications

Chamber Dimensions Ø100 × 100 mm (Diameter × Height)
Maximum Temperature 1700°C (maximum holding time: 2 hours)
Working Temperature 1600°C
Temperature Control Intelligent 50-segment programmable temperature controller
Thermocouple Type B
Temperature Control Accuracy ±1°C
Rated Power 2 kW
Net Weight 75 kg
Overall Dimensions 420 × 570 × 825 mm

Related Accessories

Standard Accessories

  • 1 molybdenum disilicide (MoSi₂) heating element
  • 1 alumina crucible
  • 1 pack of zirconia beads
