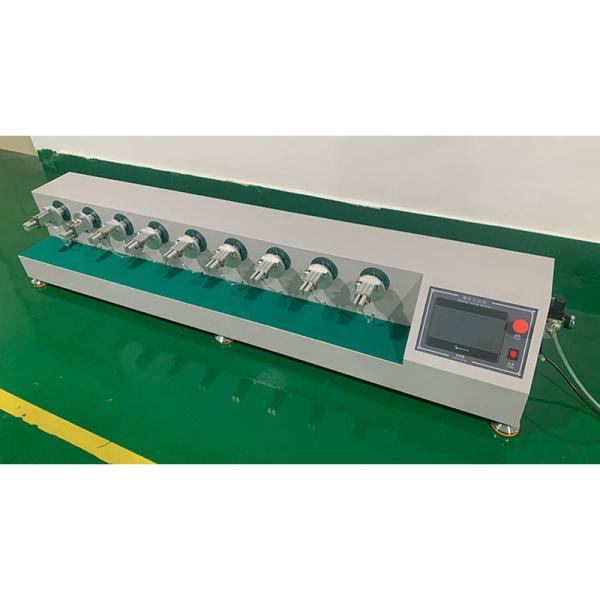

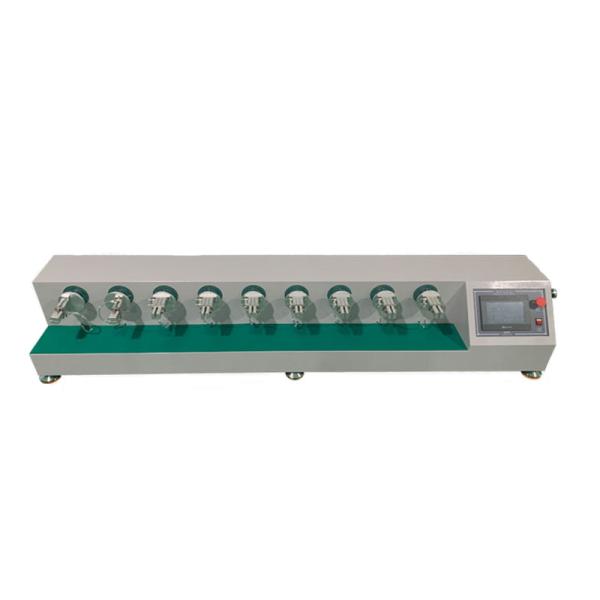

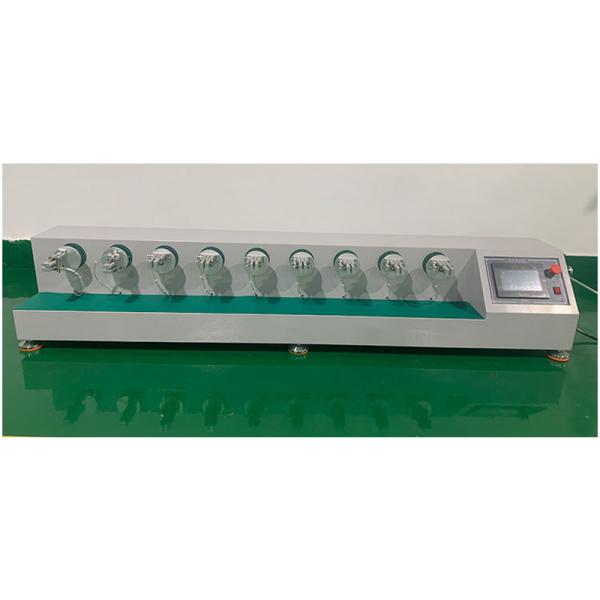

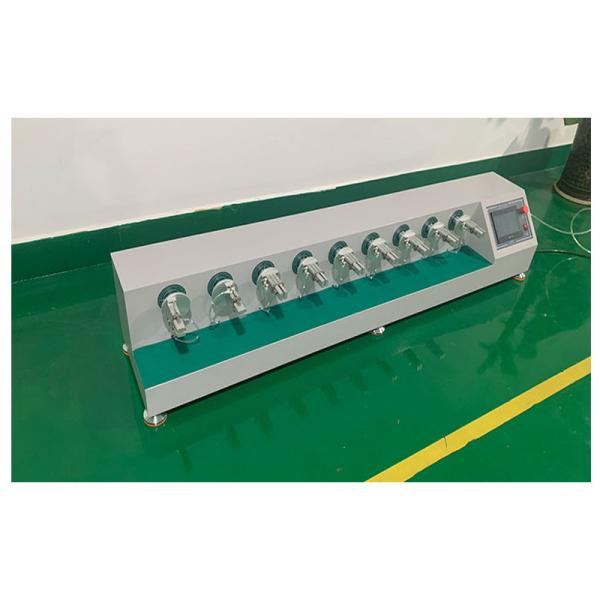

Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Lr-Q001 GB4706 New Energy Bend Test Equipment Bending Endurance Testing Machine
Specifications
Brand Name :
Lonroy
Model Number :
LR-Q001
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiate
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 PCS
Delivery Time :
5-8 Workdays
Packaging Details :
wooden package
Swing amplitude :
90° left and right, totaling 180
Operating mode :
Pneumatic fixture, manual reset via touch screen
Maximum allowable specimen weight :
3kg (customizable)
Overall dimensions :
2000 × 400 × 350
Net weight :
80kg
Description

1. Product Description

This series of Lr-Q001 GB4706 New Energy Bending Testing Machine Bending Endurance Tester is mainly used to simulate electronic instruments and meters, new materials, electrical engineering, vehicles, metals, electronic products, aerospace materials and other materials, as well as to test the possible damage and shortened service life caused by the endurance and folding endurance of materials, accessories or instrument equipment.Lr-Q001 GB4706 New Energy Bending Testing Machine Bending Endurance Tester's testing scope covers domestic and international technical standards such as GB4706 and BS6387. Through simulating the repeated bending process of the wire, the durability of the product is evaluated .The core function of Lr-Q001 GB4706 New Energy Bending Testing Machine Bending Endurance Tester remains focused on repeated bending tests.

2. Product Parameters

Swing amplitude

90° left and right, totaling 180(customizable)

Maximum allowable specimen weight

3kg (customizable)

Maximum allowable specimen size

80×800

Impact panel size

1750 × 153 × 5mm (solid iron base, 5mm thickness)

Operating mode

Pneumatic fixture, manual reset via touch screen

Overall dimensions

2000 × 400 × 350, Net weight,approximately 80kg

Power supply

220V 50Hz

Power

4KW
