BGD 227/H Horizontal Automatic Panel Spray Cabinet Automated Flat Panel Coating Chamber
BGD 227/H Horizontal Automatic Panel Spray Cabinet Automated Flat Panel Coating Chamber
BGD 227/H Horizontal Automatic Panel Spray Cabinet Automated Flat Panel Coating Chamber
BGD 227/H Horizontal Automatic Panel Spray Cabinet Automated Flat Panel Coating Chamber
BGD 227/H Horizontal Automatic Panel Spray Cabinet Automated Flat Panel Coating Chamber
BGD 227/H Horizontal Automatic Panel Spray Cabinet Automated Flat Panel Coating Chamber
Specifications
Brand Name :
LONROY
Model Number :
BGD 227/H
Certification :
CE ISO ASTM
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 pieces
Delivery Time :
5-8 work days
Packaging Details :
Wooden pakage
Overall Dimensions :
1260mm×1300mm×1860mm (W×D×H)
Power Supply :
220V; 50HZ
 Net Weight :
220KG
Total Power :
1.5KW;
 Rotation Angle of Spray Gun :
±50°
Color :
Grey
Description

BGD 227/H Horizontal Automatic Panel Spray Cabinet Automated Flat Panel Coating Chamber Horizontal Robotic Surface Application System

1.Description:This is a horizontal automatic plate spraying machine, compared with the vertical automatic plate spraying machine, it has the following characteristics:

* More suitable for spraying shaped workpieces.

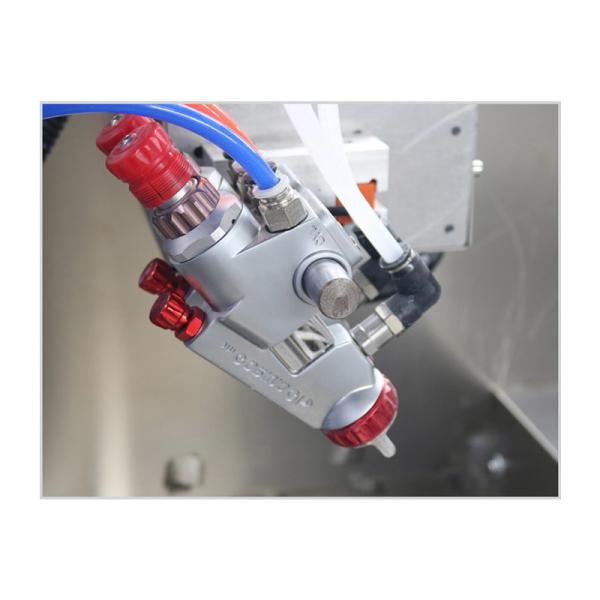

* Adopt double spray guns (semi-automatic) design, gravity feed design spray guns, spray volume is more stable, more convenient and precise adjustment;

* All stainless steel cabinet, easy to clean

* Workshop is equipped with water tank and water curtain system, which can absorb most of the spraying paint mist, less odor evaporation, reducing the pressure of laboratory gas emissions; closed spraying operations, the operator and paint mist completely isolated, health and environmental protection;

* Various spraying paths can be edited, such as zigzag, straight line, point type, arc type, which can be adapted to different shapes of samples or workpieces, convenient and practical;

* 10-inch touch screen control, program editing at a glance, the operation is simple and clear, easy to learn and easy to start;

* The test plate bracket can be set at any rotating angle, with automatic feeding into position function, the spray gun can be rotated within the range of ± 50 °, which greatly improves the flexibility of spraying.

2.Technical Parameter

Max. Spraying Area 620mm × 720mm, sample tray can rotate 360 degrees;
Gun Moving Speed 0-500mm/s;
Spraying Distance 95mm-215mm (can be adjusted)
Rotation Angle of Spray Gun ±50°
Spray Gun 2pcs, semi-automatic Gravity-type
Overall Size 1260mm×1300mm×1860mm (W×D×H)
Air Outlet Pipe Diameter 200mm (also can be customized)
Power Supply 220V; 50HZ
Total Power 1.5KW;
Net Weight 220KG
Main Cabinet Material simple welding with 304# stainless steel, glass door in front, totally enclosed.
