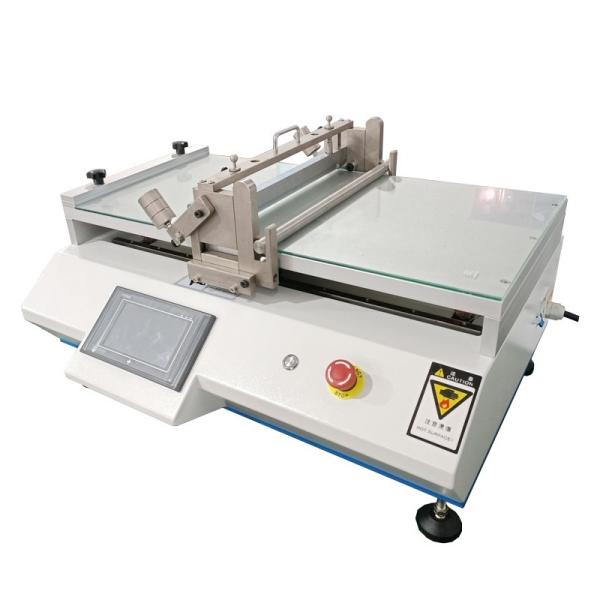

Heated Knife Coating Test Machine Film Coating Machine 2000W
Heated Knife Coating Test Machine Film Coating Machine 2000W
Specifications
Brand Name :
Lonroy
Model Number :
P-T100
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Power :
2000w
Packing weight :
55KG
Coating width :
300*450M
Coating accuracy :
±0.0025mm
Price :
Negotaible
Description

Heated Knife Coating Test Machine Film Coating Machine
1.Application
Since the main factors affecting the coating are coating speed and pressure applied to the coating applicator, the coatings applied manually often have inconsistencies, especially between different people, which makes it difficult to compare the test results between samples. Our company's automatic coating applicator is carefully designed to enable operators to easily apply precise wet films on different substrates, which greatly improves the reproducibility of the coating.
The laboratory small coating machine uses all imported accessories and is inexpensive. It has been favored by many multinational corporate R&D institutions and many well-known universities at home and abroad.
The coating effect is guaranteed by controlling the speed and stable pressure to ensure the uniformity and stability of the coating.
The biggest feature of the laboratory small coating machine is that it can be used for coating experiments on various flat materials such as paper, plastic, metal, PVC, PET, cloth, aluminum alloy plate, etc.

2. Product Parameter

Control system 5-inch PLC touch screen
Coating thickness 0.005-3mm wet film
Coating accuracy ±0.0025mm
Power supply 220V 50Hz
Power 2000w
Coating speed 0-10m/min (digital preset)
Length Digital preset
Coating width 300*450M
Heating temperature Normal temperature~160 degrees (constant temperature setting)
Coating method Scraper/wire rod alternate use
Scraper material Carbide scraper (easy to disassemble and clean)
Packing weight 55KG
