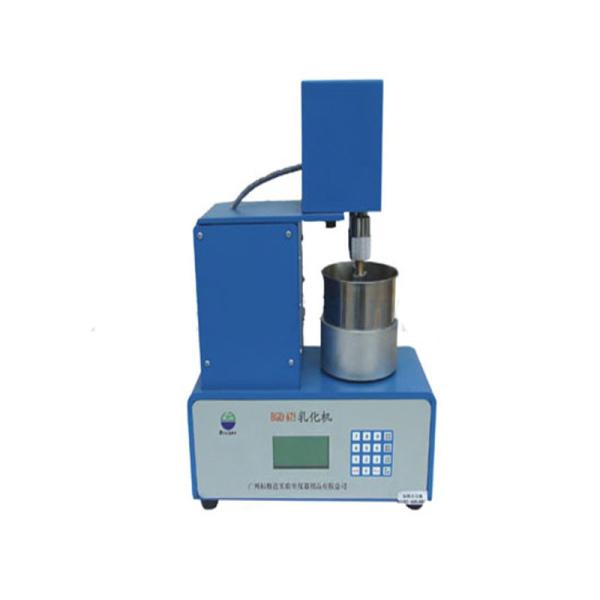

BGD 675 Digital Emulsification Tester Ink Emulsion Device
BGD 675 Digital Emulsification Tester Ink Emulsion Device
Specifications
Brand Name :
Lonroy
Model Number :
BGD 675
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Dimensions of Machine :
330mm×150mm×460mm
Weight :
20KG
Power Supply :
AC220V 50HZ
Stirrer rake Size :
56mm×100mm
Container Size :
100mm×100mm
Warranty :
1 Year
Description

BGD 675 Digital Emulsification Tester Ink Emulsion Device

1.Description

The Digital Emulsification Tester is specially designed to comply with the ASTM D 4942 standard and is used for the rapid determination of water absorption of offset printing inks and their binders in the laboratory. The instrument adopts a double-frame planetary stirring method. Through the shearing and dispersion effects, the non-miscible liquid droplets in the tank are refined and dispersed, and circulate within the tank to achieve a uniform emulsified state. The instrument adopts programmable control, and the LCD screen displays the working parameters and operating status of the instrument. It features simple operation, reliable performance and flexible and convenient use. If the user has special requirements for the rotational speed of the stirring paddle, they can also be met by modifying the programming parameters (this needs to be specified separately when placing an order).

2.Technical Parameter

Power Supply

AC220V 50HZ

Stirring Rotating Speed

90/100/150 r. p. m

Container Size(Inner Diameter ×Height)

100mm×100mm

Stirrer rake Size(w ×h)

56mm×100mm

Overall Size

330mm×150mm×460mm

Weight

20KG

Ordering Information

BGD 675---Digital Emulsification Tester
