Specifications
Brand Name :
LONROY
Model Number :
BGD 564
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200 pieces
Delivery Time :
5-8 work days
Packaging Details :
Wooden pakage
Length :
120mm-150mm
Width :
≤80mm
Thickness :
≤1.0mm
Mandrel Specifications :
12 pcs stainless steel mandrels with diameters
Description

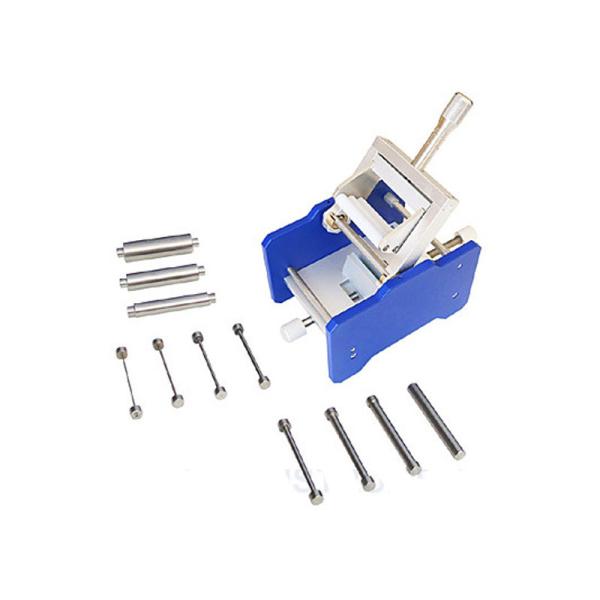

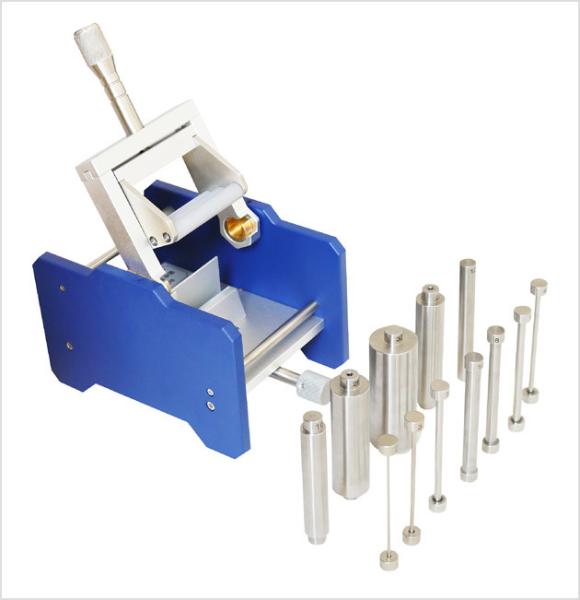

BGD 564 ISO 1519 Cylindrical Mandrel Tester Paint Film Bending Device

1.Description:Designed in accordance with the requirements of "Type II" instruments in the latest standard GB/T 6742-2007 and ISO 1519:2002, it is used to evaluate the crack resistance of coatings of paints, varnishes or related products when bending around a cylindrical axis under standard conditions and/or the performance of peeling off from metal or plastic substrates.

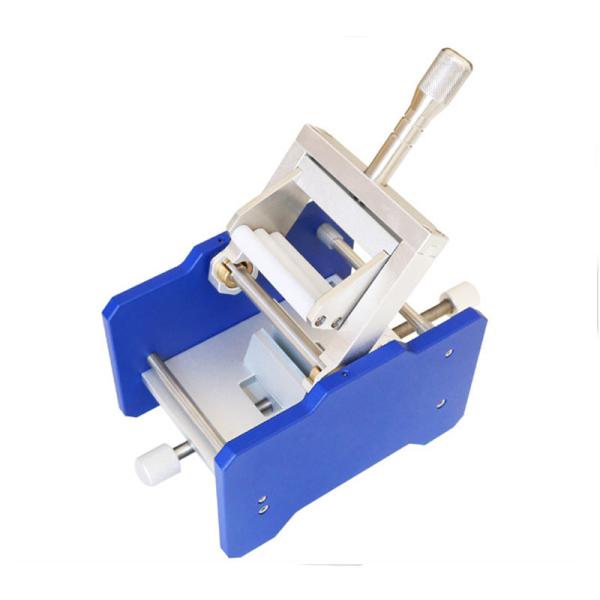

This instrument is composed of three PVC rollers arranged side by side and rotating around the pivot, which can effectively prevent the coating from being damaged and subjected to shear stress during the test process.

The test results are expressed in the following two ways:

1. "Pass/Fail" test, that is, test with a shaft of specified diameter to determine whether the coating meets specific requirements;

2. Conduct tests in sequence with shafts to determine the maximum shaft diameter that causes the coating to crack and/or peel off from the substrate

2.Technical Parameter

Design Latest humanization design, convenient and quick to operate
Mandrel Specifications 12 pcs stainless steel mandrels with diameters: Φ2, Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12, Φ16, Φ20, Φ25, Φ32mm
Material & Processing - Machined from high-hardness stainless steel
- Φ2mm and Φ3mm mandrels undergo hardening treatment (anti-deformation for thick test panels)
Test Panel Compatibility - Length: 120mm-150mm
- Width: ≤80mm
- Thickness: ≤1.0mm
Certification Includes Calibration Certification
