BGD 760 Coating Fast Mixer Paint Testing Equipment Fast Dispersing Machine 550W
BGD 760 Coating Fast Mixer Paint Testing Equipment Fast Dispersing Machine 550W
Specifications
Brand Name :
Lonroy
Model Number :
BGD 760
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Overall Size :
790mm×520mm×1090mm
Weight :
80KG
Motor :
550W 220V 50Hz
Head Arm Swinging Angle :
30°
Warranty :
1 Year
Description

BGD 760 Coating Fast Mixer Paint Fast Dispersing Machine

1.Description

The Coating Fast Mixer, commonly known as the "Quick Hand," is used in laboratories for paints, dyes, inks, and other materials to achieve rapid and efficient agitation and dispersion. Its efficiency is 2-3 times that of sand mills, three-roll mills, ball mills, and other equipment. It can also simultaneously conduct comparative tests on multiple pigments and formulations, significantly reducing testing time.
This equipment complies with national standards GB/T 9287, GB/T 21868.2, and ISO standards ISO 787, ISO 8780-2. Additionally, it can be used to prepare diluted-color coatings for comparing the strength of color pigmentation.

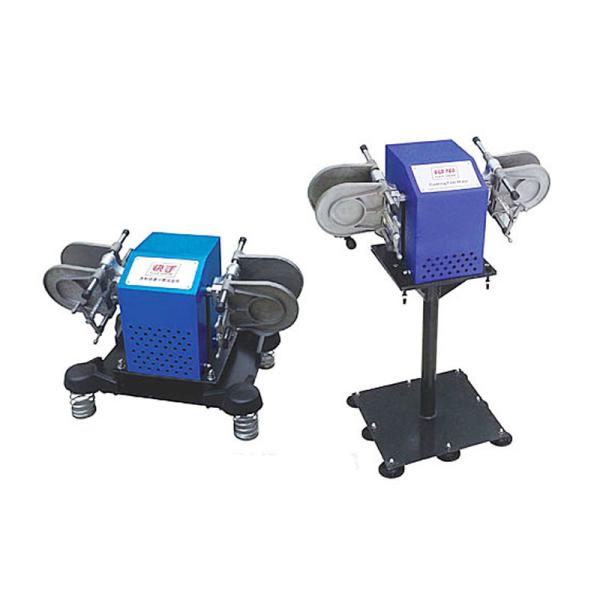

The Coating Rapid Dispersion Tester is available in two types: column-mounted and floor-standing. The clamping plates can hold containers in two styles: bottles and cans:
Clamp-can: The clamp plate can hold containers of various shapes and sizes (users must provide their own containers, with a maximum diameter of 180 mm and a height ranging from 65 mm to 180 mm).
Clamp-bottle: Each clamp arm is pre-equipped with four glass bottles of approximately 200 ml capacity (totaling eight glass bottles, with each bottle capable of holding up to 150 ml of sample).

2.Technical Parameter.

Motor 550W 220V 50Hz
Crankshaft Revolution 660 r/min
Main Shaft Reciprocating Stroke 16 mm
Upper and lower maximum Amplitude 8 mm
Head Arm Swinging Angle 30°
Overall Dimension 790mm×520mm×1090mm (length by width by height)
Weight 80KG

Ordering Information		 BGD 760/1 Coating Fast Dispersing Tester (Column type with carrying can)
BGD 760/2 Coating Fast Dispersing Tester (Column type with carrying bottle)
BGD 760/3 Coating Fast Dispersing Tester (Floor type with carrying can)
BGD 760/4 Coating Fast Dispersing Tester (Floor type with carrying bottle)
