Specifications
Brand Name :
Lonroy
Model Number :
BGD 506
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Pencil Tip Pressure :
500g / 750g / 765g / 1000g (selectable)
Pencil Angle :
45° between pencil and tested surface
Contact Points :
Three points (roller, pencil core) touch the tested surface
Color :
Blue
Description

BGD 506 ISO 15184 Pencil Hardness Tester Coating Paint Hardness Testing Machine

1.Description:

Designed in accordance with GB/T 6739, ISO 15184 and ASTM D 3363, scratches are made on the dried coating film with a pencil of a certain hardness grade, and the hardest pencil grade that does not cause damage to the coating film is indicated. This instrument features a compact size, light weight, simple and scientific operation, etc. It can be used in both laboratories and construction sites, and is capable of testing the hardness of coating films in any direction.

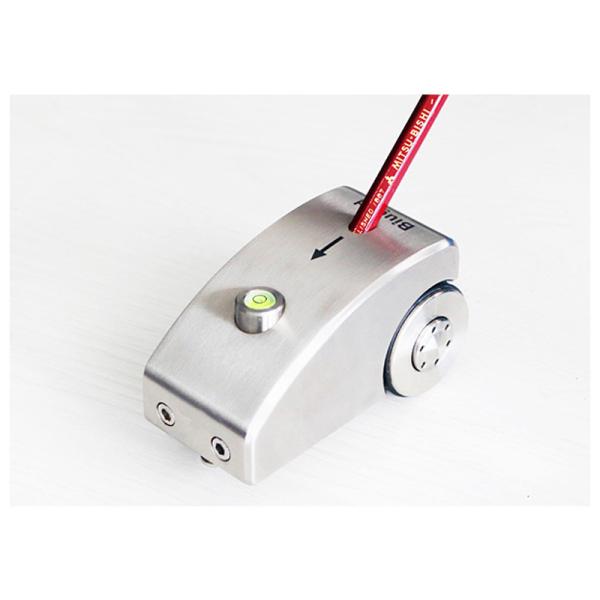

Meanwhile, we have also designed the BGD 506/2S pencil hardness tester with an all-stainless steel body. Besides the above-mentioned features, the pad for adjusting the level of this instrument is designed as an integrated unit and can automatically lock the pencil, which greatly facilitates the operators to load and unload the pencil and adjust the level of the instrument.

2.Technical Parameter

Contact Points Three points (roller, pencil lead) touch the tested surface
Pencil Angle 45° between pencil and tested surface
Leveling Assistance Built-in spirit bubble for easy horizontal alignment during testing
Pencil Tip Pressure 500g / 750g / 765g / 1000g (selectable)
Ordering/Packing List Included Items:
① Pencil Hardness Tester Body
② 1 Set of Pencils (13 grades: 6B-5B-4B-3B-2B-B-HB-H-2H-3H-4H-5H-6H) Chunghwa brand
  *(BGD 506/2S includes Mitsubishi pencils)*
③ Special Pencil Sharpener
④ 400-grit Abrasive Paper
⑤ Calibration Certificate
