BGD 755 Lab Paint Testing Instruments Basket Mill Machine 1100W 1500W 2200W
BGD 755 Lab Paint Testing Instruments Basket Mill Machine 1100W 1500W 2200W
BGD 755 Lab Paint Testing Instruments Basket Mill Machine 1100W 1500W 2200W
BGD 755 Lab Paint Testing Instruments Basket Mill Machine 1100W 1500W 2200W
BGD 755 Lab Paint Testing Instruments Basket Mill Machine 1100W 1500W 2200W
BGD 755 Lab Paint Testing Instruments Basket Mill Machine 1100W 1500W 2200W
Specifications
Brand Name :
Lonroy
Model Number :
BGD 755
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Parameter of Motor :
1100W/1500W/2200W; 220V 50Hz
Rotation Speed :
900 r.p.m-2,800 r.p.m
Processing Capacity :
0.8L-20L
Warranty :
1 Year
Description

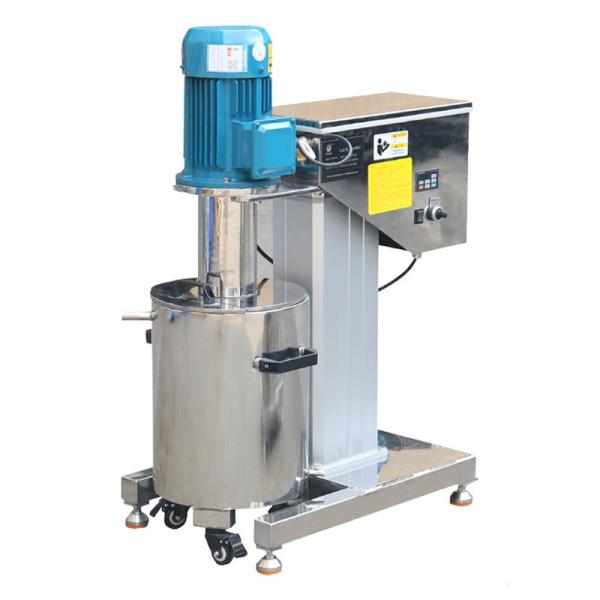

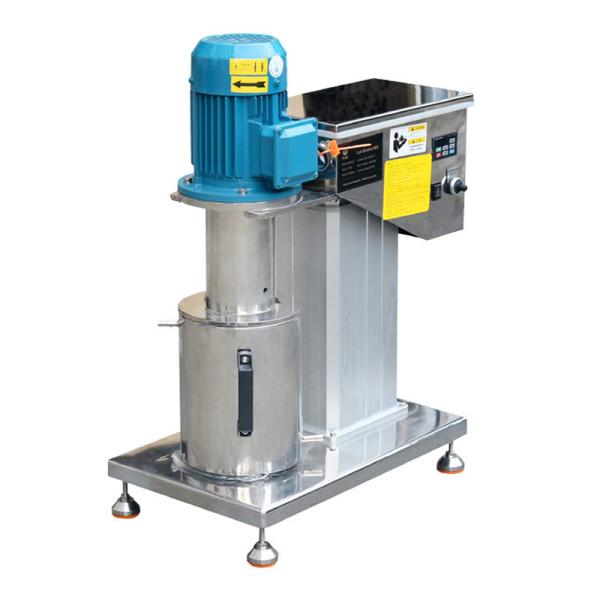

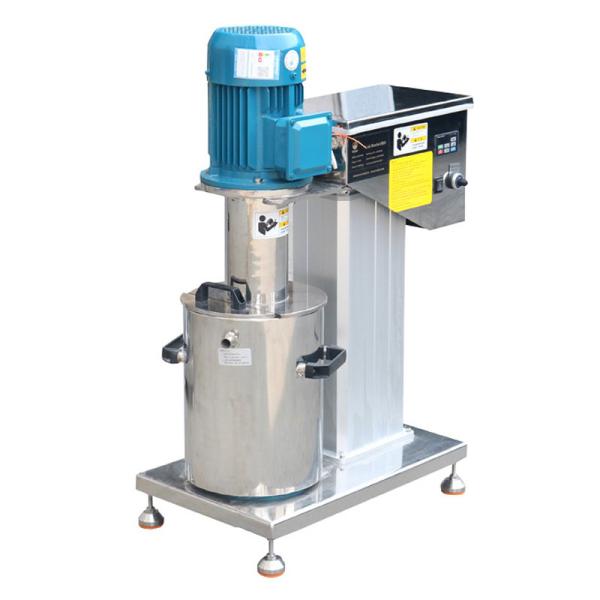

BGD 755 Lab Basket Mill Basket Mill Machine

1.Description

Since vertical sand mills require the separation of material and grinding media after grinding, basket-type sand mills effectively address this issue.
Working principle: The grinding basket, filled with grinding media, is immersed in the material. Driven by the dispersing disc and suction pump wheel, the material rapidly circulates through the grinding basket, achieving thorough grinding and yielding an extremely narrow particle size distribution range.
Feature:
* Dispersion and grinding of the base material are completed in a single container using a single machine; no circulation dead zones
* No additional pumps, pipes, valves, or containers required
* Easy to clean, minimal residue, and convenient for product changeovers
* Minimal grinding media addition
* High grinding efficiency and excellent results; extremely high output rate
* Low energy consumption

2.Technical Parameter.

Parameter of Motor 1,100W/1,500W/2,200W; 220V 50Hz
Rotation Speed 900 r.p.m-2,800 r.p.m
Processing Capacity 0.8L-20L
Control Method Stepless speed control, with digital speed display
Suitable Grinding Medium 95% Zirconia beads, 1.6mm-1.8mm
Material The part contacting with material is SS304
Lifting System Electric Lift automatically.
Ordering Information BGD 755/3 1,100W Basket Mill(5L)
BGD 755/4 1,100W Basket Mill(5L)
BGD 755/5 2,200W Basket Mill(20L)
