BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
BGD 750 Sand Milling Dispersing Agitator Hybrid Sand Grinding Dispersion Mixer
Specifications
Brand Name :
Lonroy
Model Number :
BGD 750
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Motor Power :
550-2200W
Container Capacity :
1.25-5L
Lift Distance :
240-520mm
Warranty :
1 Year
Description

BGD 750 Versatile Sand-Milling Dispersing-Agitator Hybrid Sand Grinding-Dispersion Mixer

1.Description

BGD 750 series Versatile Sand-Milling Dispersing-agitator is a new product designed by our company. It is equipped with two sand-milling discs, two dispersing blades and a double-layer stainless steel container. With only one machine, operator can finish such as sand-milling, high speed dispersing and mixing. Furthermore, electric lift design is very convenient for female operator.
Features:
* With high quality squirrel-cage motor and use frequency converter to adjust working speed
* Direct digits display axis revolution through display screen of frequency converter installed on the machine.
* BGD 750/1 & BGD 750/2 have lifting lever marked with scale, which are convenient to adjust
the distance of dispersing blade to container bottom.
* No carbon brush, no produce any flame when working
* Lower noise, bigger torque and wider adjustable speed
* Main parts are all made up of stainless steel, with perfect corrosion resistance
* Inlet and outlet of cooling water are equipped with fast joints, convenient for operator to install or remove quickly.
* Container is produced by a whole special mould, no welding line and bottom is arc structure, can be cleaned completely. Very convenient for operatore to do the different color sample.

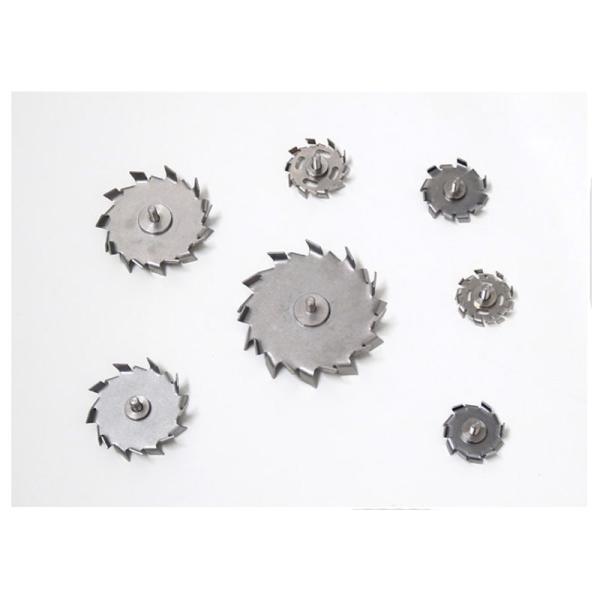

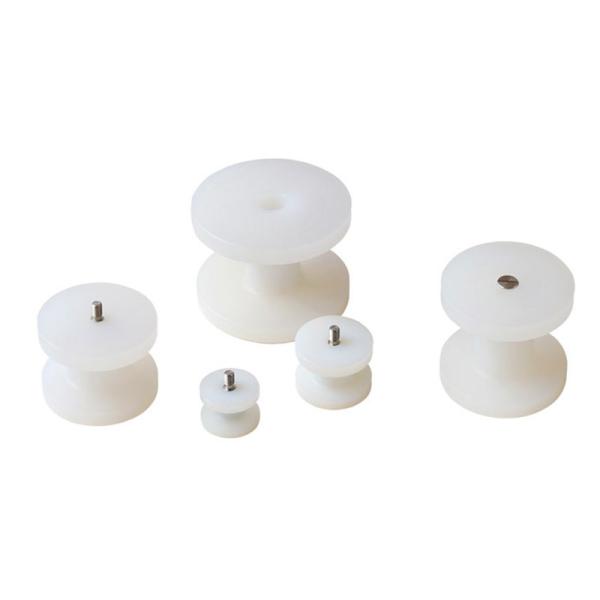

* Standard Configuration:Two or four(only for 550W&750W)different size dispersing blades , two different size sand-milling blades , a stainless steel double jacket container.
* Power Supply:220V 50H

2.Technical Parameter.

Ordering
Information

Motor

Power

 Speed
(r/min)		 Container
Capacity

Lift

Distance

 Lift
System		 Dispersing
blades		 Sand-Mill blades

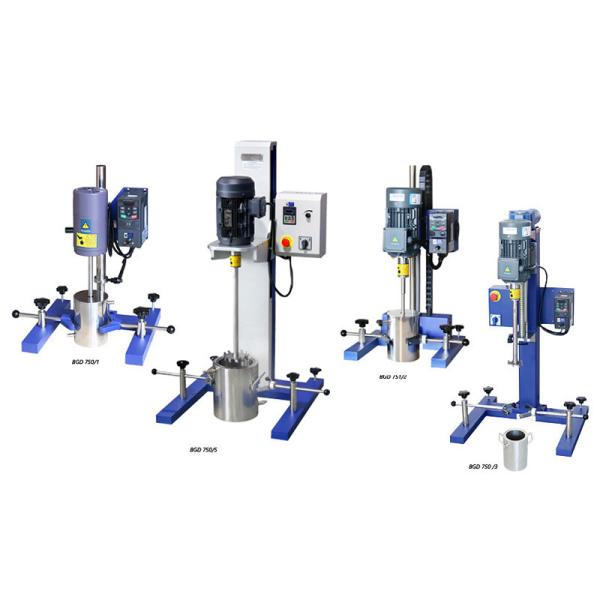

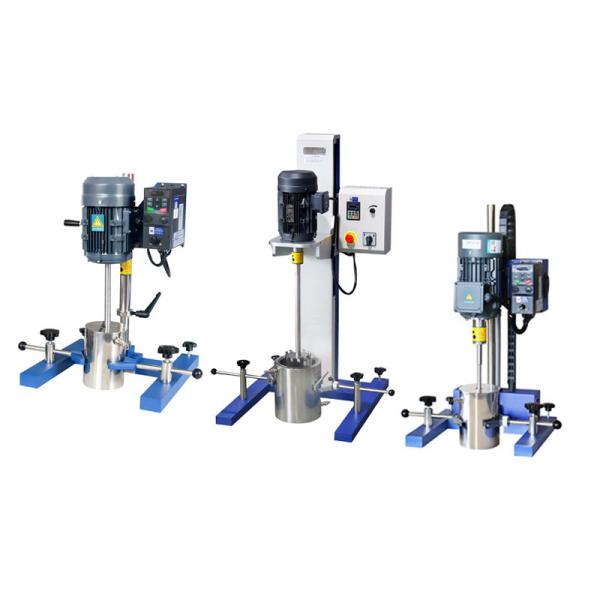

BGD 750/1 550W 0-7,500 1.25 L 240 mm Spring lift by hand 50mm&60mm 50mm&60mm
BGD 750/2 750W 0-6,000 1.25 L 245 mm Spring lift by hand 50mm&60mm 50mm&60mm
BGD 750/3 1,100W 0-6,000 3 L 320 mm Electric 60mm&80mm 90mm&100mm
BGD 750/4 1,500W 00-5,000 3 L 320 mm Electric 80mm&100mm 90mm&100mm
BGD 750/5 2,200W 0-4,000 5 L 520 mm Electric 100mm&120mm 100mm&130mm
