BGD 294 ASTM D 5682 Conductivity Tester for Paint
BGD 294 ASTM D 5682 Conductivity Tester for Paint
Specifications
Brand Name :
Lonroy
Model Number :
BGD 294
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Probe Dimensions :
Φ42mm × 250mm
Display :
Digital direct reading
Test Standard :
ASTM D 5682
Measuring Range :
0~199.9MΩ
Warranty :
1 Year
Description

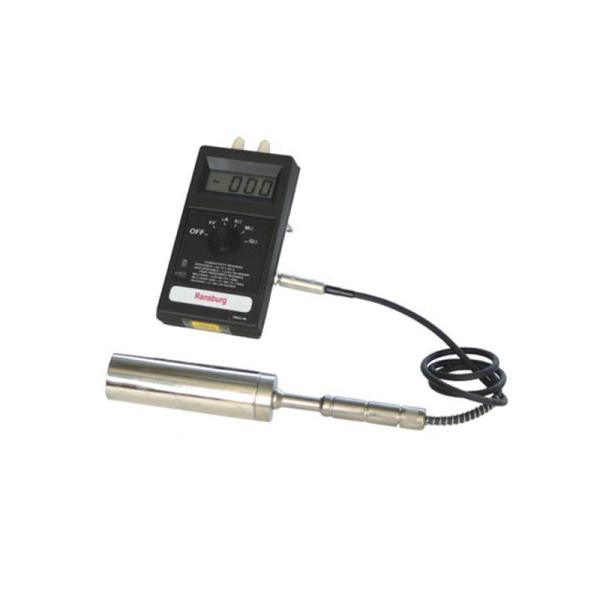

BGD 294 ASTM D 5682 Conductivity Tester for Paint

1.Description

Conforms to ASTM D 5682 test specification, specially designed and manufactured for the conductivity evaluation of paints/inks, with a large measuring range covering almost all paint and ink conductivity values, it is a powerful tool for formulators and electrostatic spraying process designers.
* Stainless steel specific resistance/conductivity probe is immune to the corrosion of organic solvents found in most paints and inks, making specific resistance/conductivity testing possible.
* Smooth, easy-to-clean probe surface
* The four-ring structure of the probe ensures that the electrode constants are consistent over time.
* Different test probes can be selected to expand the functions of the main unit.
*Large measuring range of specific resistance/conductivity, can measure the conductivity of almost all paints and inks.

2.Technical Parameter

Measurement Parameters Specific Resistance (Conductivity), SCI (Short-Circuit Current), Static Voltage
Measuring Range Specific Resistance:
1~1999kΩ (3 ranges);
0~199.9MΩ;
0~19.99GΩ
- SCI: 0~250μA (Optional Gun terminal)
- Static Voltage: 0~199.9kV (Optional HV test terminal)
Display Digital direct reading
Electrode for Specific Resistance Stainless steel tubular probe
Probe Dimensions Φ42mm × 250mm
Test Standard ASTM D 5682
Ordering Information BGD 294---Conductivity Tester for Paint
