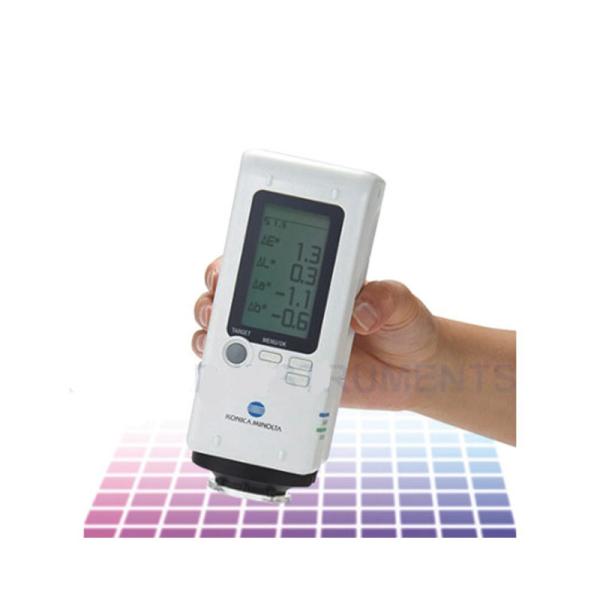

Konica Minolta CR-10 Plus Color Reader Portable Colorimeter
Konica Minolta CR-10 Plus Color Reader Portable Colorimeter
Specifications
Brand Name :
Lonroy
Model Number :
CR-10
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Dimension :
66mm (W) × 158mm (H) × 85mm (D)
Weight :
420g
Power Supply :
4 AA batteries
Display Modes :
Δ(L*a*b), ΔEab, Δ(LCh*)
Warranty :
1 Year
Description

Konica Minolta CR-10 Plus Color Reader

1.Description

KONICA MINOLTA CR-10 Plus Color Reader, as a new generation of economical portable colorimeter, is an upgraded model of CR-10 (currently discontinued). On the basis of the original lightweight, flexible and portable, it has a built-in computer application program, which realizes the connection with the computer and further expands the scope of data management, meets the frequent and rapid on-site measurements of the quality inspectors and gives them instant results, and helps enterprises achieve efficient supplier and product quality control.
KONICA MINOLTA CR-10 Plus Color Reader adds a Chinese language interface with a larger LCD display for easy reading of test data, and a standard LED indicator for pass/fail determination. At the same time, its parameters can also be set by computer (with software), the instrument can store up to 1000 sets of data and can be uploaded to the user's computer through the standard USB cable.

2.Technical Parameter

Illumination/Observation Optical System 8/d (8° illumination angle/diffuse receiving mode; includes specular reflection, compliant with ISO 7724/1F, CIE No.15, ASTM E 1164)
Measuring Aperture Standard: 8mm aperture; Optional: 5mm aperture
Display Modes Δ(L*a*b), ΔEab, Δ(LCh*)
Display Content Color difference value, average value (up to 10 measurements), pass/fail judgment
Languages Chinese, English, Japanese
Repeatability Standard deviation ΔE*ab ≤ 0.1 (when measuring white calibration plate)
Measurement Conditions CIE 10° standard observer; CIE D65 light source
Measurement Time Approx. 1 second
Power Supply 4 AA batteries (alkaline or Ni-MH rechargeable), USB bus power, or optional dedicated power adapter
Dimensions/Weight 66mm (W) × 158mm (H) × 85mm (D); 420g (without batteries)
