Hydrogen Air Nitrogen Integrated Machine
Hydrogen Air Nitrogen Integrated Machine
Specifications
Brand Name :
Lonroy
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Dimensions :
460mm × 440mm × 370mm
Net Weight :
Approx. 40KG
Power Consumption :
330W
Power Supply :
220V ±10%; 50Hz ±5%
Warranty :
1 Year
Description

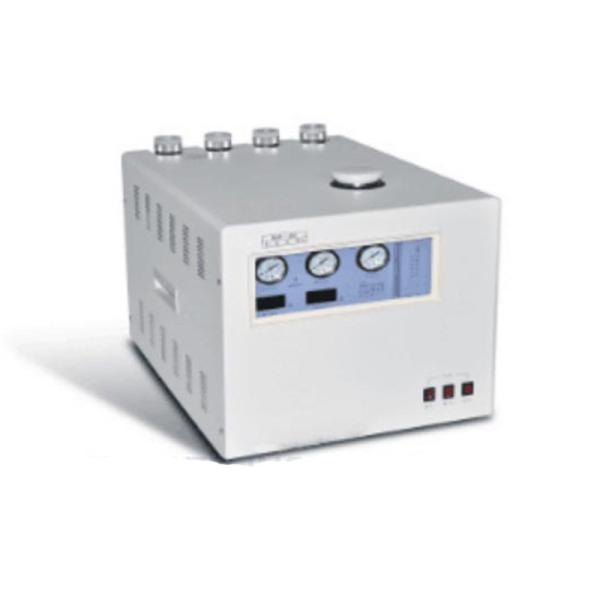

Hydrogen-Air-Nitrogen Integrated Machine

1.Description

Hydrogen-air-nitrogen all-in-one machine (gas generator) is a compact combination instrument integrating nitrogen generator, hydrogen generator and air generator, with compact structure, simple operation and built-in multi-stage protection device, suitable for providing stable, high-quality and safe gas for gas chromatograph.

Characteristics:
* It can replace the high-pressure cylinder and instrumentalize the laboratory;
* Easy operation, stable output pressure, equipped with flow rate display;
* No consumption of electrolyte solute, only need to replenish distilled water;
* Safe, reliable and convenient performance, equipped with multi-level protection device;
* It can be used continuously for a long time.

2.Technical Parameter

Nitrogen Purity >99.999%
Hydrogen Purity >99.999%
Air Quality Dry, oil-free, triple-purified clean gas
Output Flow Rate Nitrogen, Hydrogen → 0-300ml/min; Air → 0-2000ml/min
Output Pressure Hydrogen → 0-0.4MPa (factory preset: 0.3MPa); Nitrogen → 0-0.5MPa (factory preset: 0.4MPa); Air → 0-0.4MPa
Power Supply 220V ±10%; 50Hz ±5%
Operating Environment Temperature: 10ºC-40ºC; Relative Humidity ≤85%; Dust-free, non-corrosive atmosphere
Power Consumption 330W
Dimensions 460mm × 440mm × 370mm
Net Weight Approx. 40KG
Standard Configuration Main unit ×1; Spare parts set ×1; Power cable ×1
