Specifications
Brand Name :
Lonroy
Model Number :
BGD 583
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Size :
114mm×32mm×64mm
Weight :
180g
Accuracy :
±1 unit or 1% of full scale
Resolution :
0.10%
Window Size :
12mm×17mm (ellipse)
Application :
Paint Testing Equipment
Description

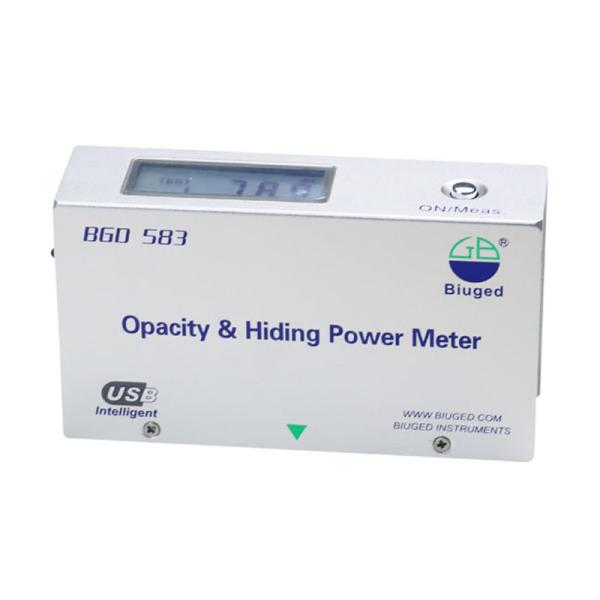

BGD 583 ISO 2814 Opacity Meter Intelligent Reflectometer Hiding Power Machine

1. Description:BGD 583 Intelligent Reflectance Tester is our newly developed portable microcomputer type product, which is the upgraded product of BGD 581. It can carry out 45/0 reflectance as well as covering power test and calculate the contrast value automatically.

2.Mainly used for

① Reflectance measurement:

→ Colour shades of paints, inks and coatings.

→ Fading of textile and plastic.

→ Chalking of paint

→ the effect of cleaning agents and bleach

→ whiteness of recycled paper

→ cleanliness and oxidisation of metal surfaces

② Measurement of hiding power:

→ hiding power of paints, inks and coatings

→ transparency of plastic films

→ opacity of paper

3.Product features

◆ Automatic calibration; automatic judgement

◆ Automatic calibration; automatic judgement of the zero point and the whiteboard standard

◆ Instant measurement, one key to switch on/measure.

◆ Simple measurement mode and statistical measurement mode.

◆ Automatic calculation of reflectance value

◆ Foolproof measurement, automatic correction of black and white working board value.

◆ USB interface, data transmission software technical parameters

4.Main Technical Parameters

■ Working Angle 45°(irradiate),0°(receive)；CIE Illuminant C
■ Range of Measurement 0-99.9%
■ Resolution 0.10%
■ Accuracy ±1 unit or 1% of full scale
■ Repeatability ≤ 0.5%
■ Power Supply One 1.5V alkaline battery or rechargeable
■ Window Size 12mm×17mm (ellipse)
■ Size 114mm×32mm×64mm
■ Weight 180g
■ Testing Environment 10℃～40℃, relative humidity should not be over 85%.
