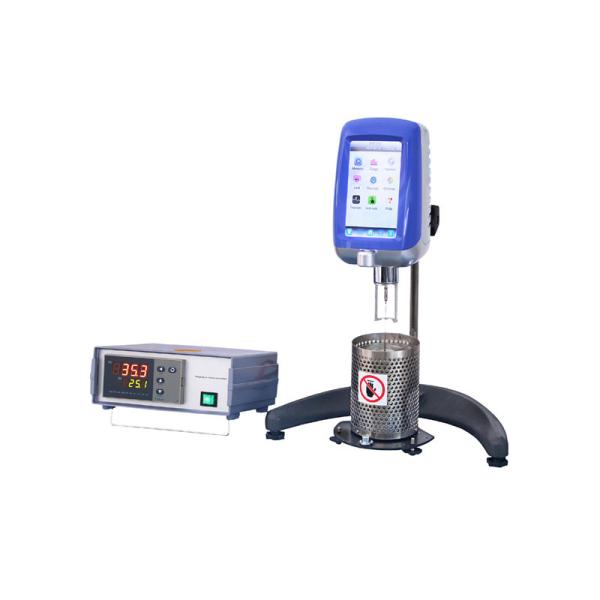

BGD 155-TS High Temperature Intelligent Touch Screen Viscometer
BGD 155-TS High Temperature Intelligent Touch Screen Viscometer
BGD 155-TS High Temperature Intelligent Touch Screen Viscometer
BGD 155-TS High Temperature Intelligent Touch Screen Viscometer
Specifications
Brand Name :
Lonroy
Model Number :
BGD 155-TS
Certification :
Includes Calibration Certification
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
Wooden package
Electrical Power :
110V & 220V / 50Hz & 60Hz
Repeatability :
0.2% of full range
Rotate Speed :
0.1 – 200 RPM
Warranty :
1 Year
Description

BGD 155-TS High-temperature Intelligent Touch-screen Viscometer

1.Description

This High Temperature Intelligent Touch-screen Viscometer comes with a heating device(thermosal) which can heat sample to a appointed temperature. It is used to test hot melt adhesive, asphalt, paraffin and hot polymer.

Feature:
*7 inch high definition touch scree, easy to operate and display rich information. Powerful human-machine interface and various humanized operation menu for conversion.
*Anti-static shell and PC material lifting pole
*Simple operation for temperature control, sample container with thermal insulation and steady temperature control
*ARM chip processor: higher data processing speed
*New designed durable small axles
*Come with a gigabit ethernet interface to transfer data, reliable and quick.
*Support external storage: single point, continuous and timing data
*Calibrated by user, temperature and viscosity correction factor are protected by password, also can be modified by user when they have reliable and accurate data.
*Can measure viscosity by infinitely variable speed, input any speed, the instrument would display the max. measuring range under different rotors. Convenient for user to choose suitable testing parameters.
*Convert freely between various viscosity units, dynamic viscosity convert kinematic viscosity automatically
*Accompanied with detailed operation instruction

2.Technical Parameter

Measurement Range (mPa·s)

Two ranges (customizable):

1.Medium viscosity: 50–10M (mPa·s/cP)

2.Low viscosity: 5–1M (mPa·s/cP)
Rotors Standard: SC4-21#, 27#, 28#, 29# (4 spindles)
Optional SC4-14, 15, 16, 18, 25, 31, 34
Rotate Speed 0.1 – 200 RPM (stepless speed regulation)
Measurement Accuracy ±1.0% of full range
Repeatability 0.2% of full range
Thermostatic Temperature Range RT +10℃ ~250℃ or RT +10℃ ~500℃ (precision: 0.1℃)
Electrical Power 110V & 220V / 50Hz & 60Hz
