Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Roller Width :
420 mm
Dimensions :
850 mm * 680 mm * 1100 mm (Length * Width * Height)
Roller Hardness :
Shore 70
Power Supply :
AC220V/50Hz
MOQ :
1
Description

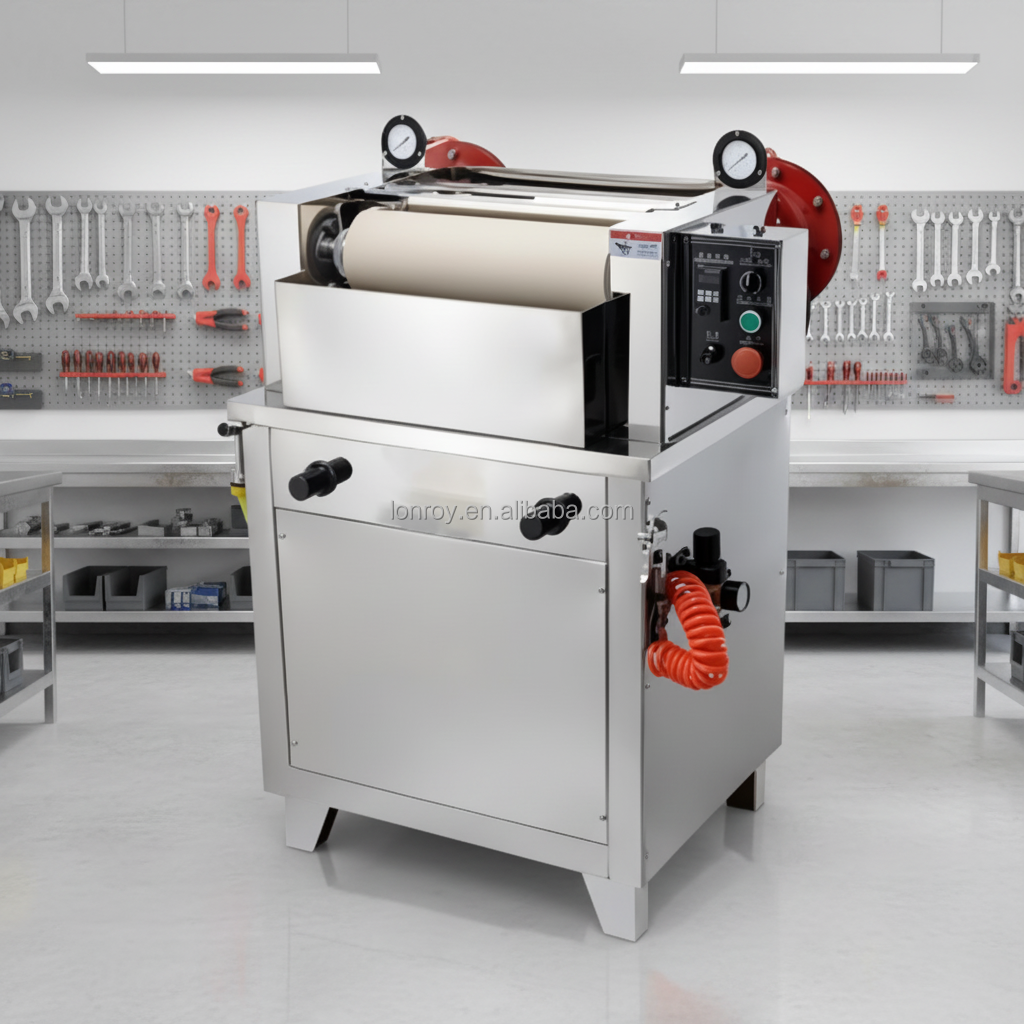

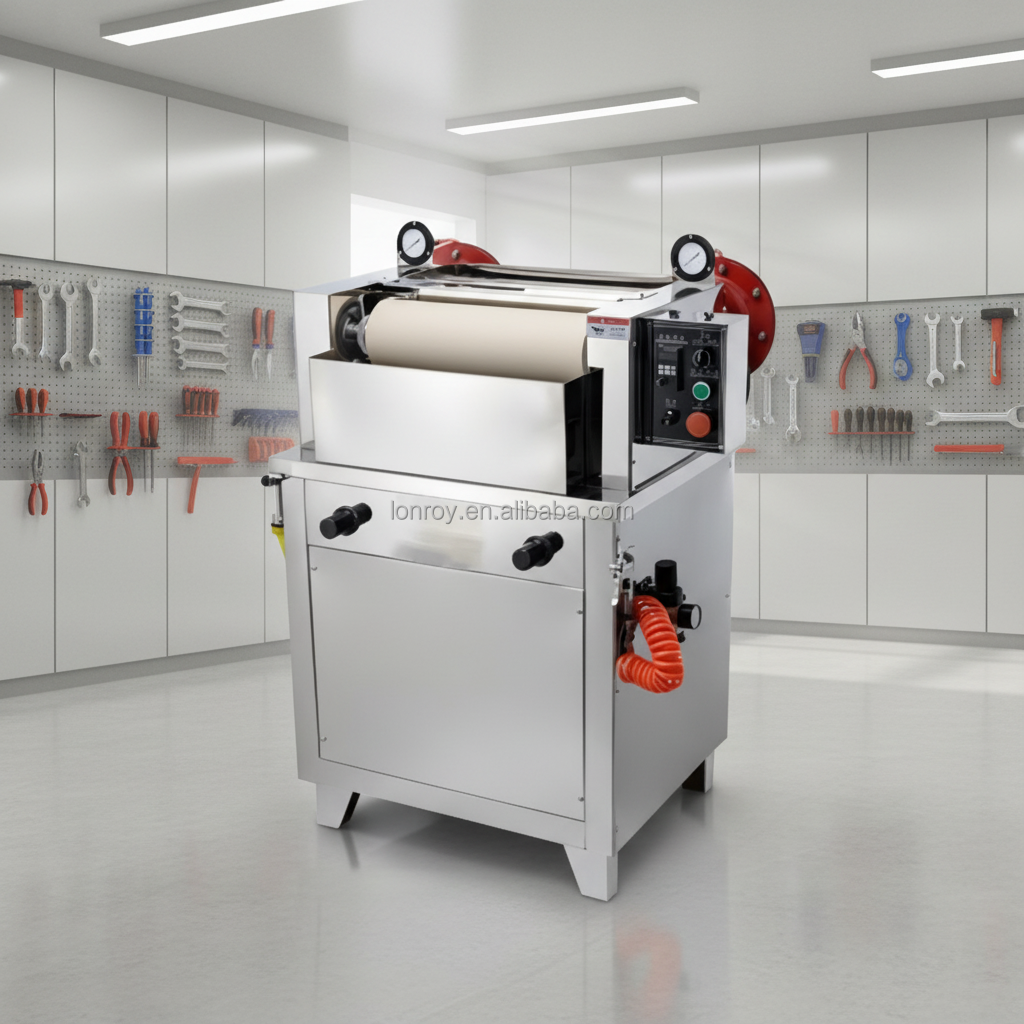

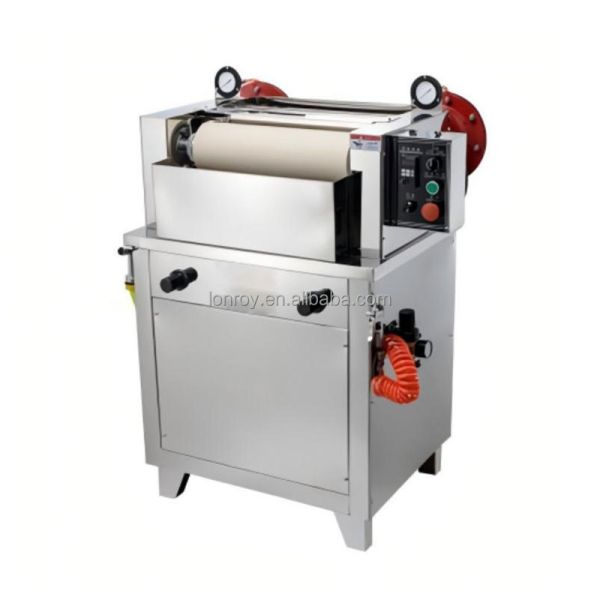

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester

Product Description

Product Overview

This machine is suitable for small-batch, multi-variety fabric testing and sampling in textile laboratories. It is mainly used to test the padding rate of fabrics or to evaluate the dyeing, finishing effects, and quality of fabrics.

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester

Technical Specification

Material

The entire machine is made of SUS304 stainless steel

Roller Material

Nitrile rubber

Roller Hardness

Shore 70

Roller Width

420 mm

Roller Diameter

Φ130 mm

Roller Pressure

0.03~0.6 MPa (approximately 0.3 kg/cm²~6 kg/cm²)

Working Speed

Variable frequency speed control, 0~18 rpm

Power Supply

AC220V/50Hz

Padding Rate

25%~110%, selected according to process requirements

Working State

The rollers are driven by large-section diaphragm cylinders on both sides, powered by compressed air, and the pressure is controlled by a pressure regulating valve to meet production process requirements

Safety Protection System

Panel emergency stop switch, knee-operated emergency stop switch, providing comprehensive protection during use

Dimensions

850 mm × 680 mm × 1100 mm (Length × Width × Height)

Resin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing TesterResin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing TesterResin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing TesterResin Padding Machine Horizontal Padding Mangle Fabrics Padding Rate test Equipment Fabrics Dyeing Tester
