Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
---
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Product name :
Wool Fiber Impurity Analyzer
Model Number :
LR-FZ101
Size(length * width * height) :
1019*715*874mm
Machine weight :
280kg
MOQ :
1
Description

Wool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection Equipment

Product Description

Application Scope

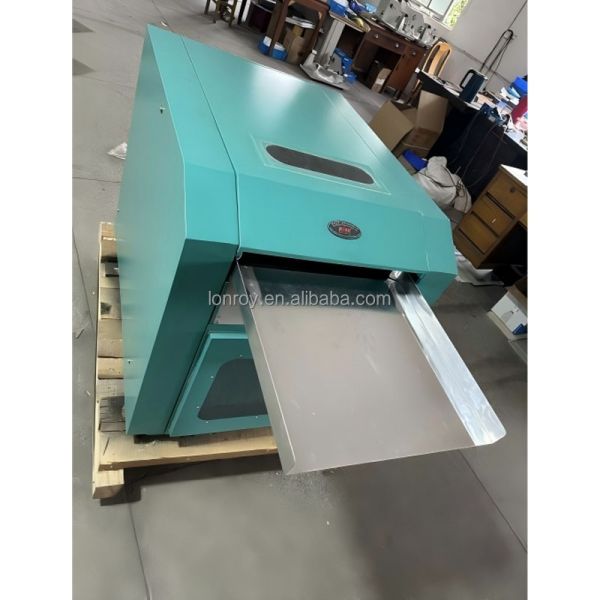

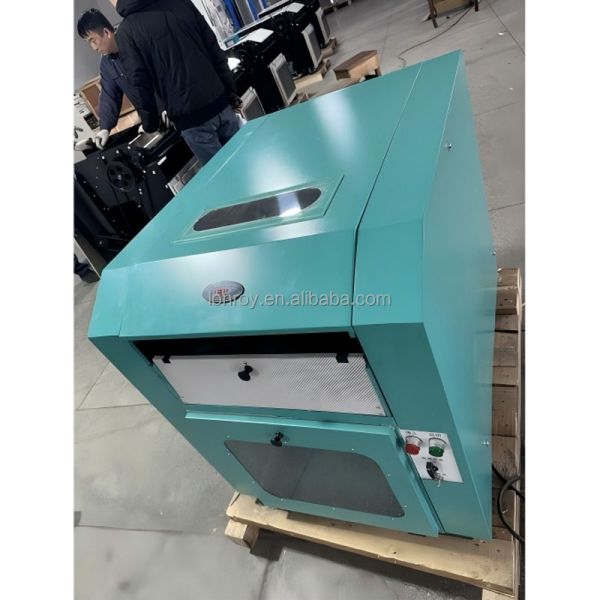

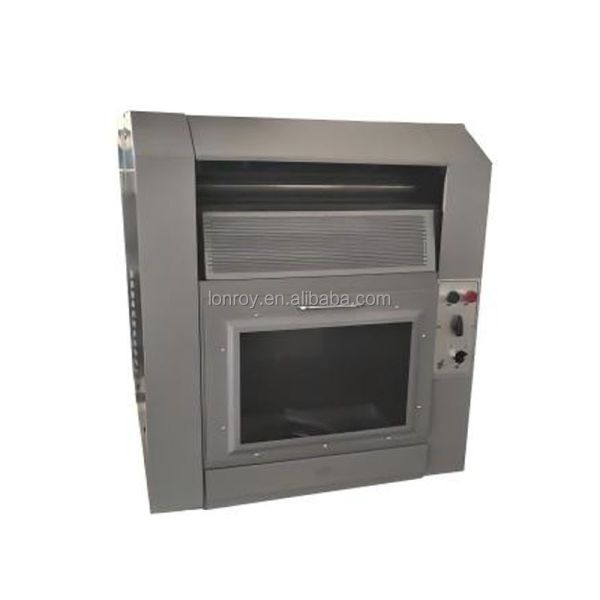

The wool fiber impurity analyzer is a key piece of equipment for testing wool fibers in the textile industry and quality inspection departments. This equipment features a compact structure, convenient operation, stable performance, few wearing parts, and easy maintenance, making it the preferred equipment for various textile factories and laboratories. It is used for impurity analysis of loose wool fibers with a length of 35mm and above.

Relevant Standards

Complies with GB18267-2013, GB/T6499-2022, DB15/T2105-2021, GB1523 and other standards.

Two Motor Drives

1. Carding roller and fan operation: Motor model JFO2-21-4, Power 1.1 kW

Speed: 1410 rpm (full load)

2. Feeding roller operation: Motor model 90YYJS90-4, Power 0.09 kW, Speed 1250 rpm

Wool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection Equipment

Technical Specification

NO

Name

Unit

Parameter

1

Machine width

mm

490

2

Feeding roller

Diameter

mm

57.15

Rotational speed

r/min

0.9

3

Carding roller

Diameter

mm

238.76

Rotational speed

r/min

900

Groove spacing

mm

3.175

Lead

mm

25.40

4

Distance between the cotton feeding table and the spiked roller

mm

0.18~0.23

5

Distance between the dust removal blade and the spiked roller

mm

Inlet: 0.53–0.61

6

Distance between the streamlined blade and the spiked roller

mm

Inlet: 0.15–0.23

7

Adjustment gap of the upper airflow regulating plate

mm

0.2~0.4

8

Motor-spiked roller V-belt model

A1524

9

Motor-fan V-belt model

A1000

10

Overall dimensions (length × width × height)

mm

1019×715×874

11

Machine weight

Kg

280

Wool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection EquipmentWool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection EquipmentWool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection EquipmentWool Fiber Impurity Tester Wool Fiber Impurity Analyzer Laboratory Wool Impurity Detection Equipment
