JIS L1096 FZ/T 01076 Planar Pressurized Shrinkage Rate Testing Machine Flat Textile Shrinkage Tester
JIS L1096 FZ/T 01076 Planar Pressurized Shrinkage Rate Testing Machine Flat Textile Shrinkage Tester
Specifications
Brand Name :
Lonroy
Model Number :
LR-A049
Certification :
ISO ASTM CE
Place of Origin :
China
MOQ :
1
Price :
Negotaible
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
200
Delivery Time :
5-8 work days
Packaging Details :
wooden package
Power supply :
3-phase 380V 50Hz
Overall dimensions :
W1200 × D1200 × H1500 mm
Upper mold heater :
3KW
Maximum temperature :
180℃ (equipped with temperature regulator)
Description

JIS L1096 FZ/T 01076 Planar Pressurized Shrinkage Rate Testing Machine Flat Textile Shrinkage Tester

Introduction

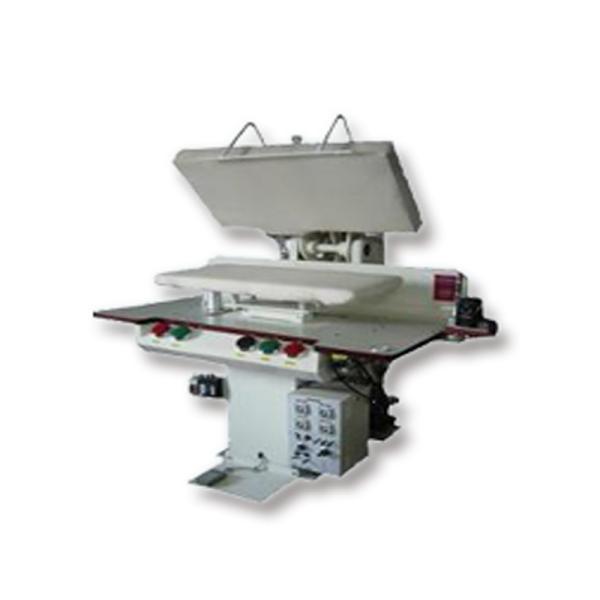

This machine is a fully automatic flat pressurized shrinkage rate testing machine designed for measuring the pressurized shrinkage rate of textiles. It was developed to meet all the test methods specified in the Japanese Industrial Standard (JIS L 1096) "Size Changes of Textiles - Pressurized Treatment (Method H)".

The heating, steam injection, steam suction, and final suction have different test durations. These can be set arbitrarily by four timers. After the sample is installed, all the operation processes will be carried out automatically.


Compliant with standards

JIS L 1096;FZ/T 01076-2010

Technical Specification

Pressurization method

Air compressor

Pressurization range

10 - 40 KPa/cm²

Ironing mold surface specification

W800 × D400 mm

Steam jetting method

Up and down mold jetting type

Adjustment of blown steam

Manual regulating valve (common steam pressure: 490 KPa)

Upper mold heater

3KW

Maximum temperature

180℃ (equipped with temperature regulator)

Time counter for tests

Steam jetting timer, heat treatment timer, timer for attracting after the upper mold rises and attracting

Timer setting range

0 - 30 seconds

Overall dimensions (approximate)

W1200 × D1200 × H1500 mm

Power supply

3-phase 380V 50Hz
