Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Rotation Speed :
0-200 rpm, continuously adjustable up to 500 rpm
Dimensions :
30mm*7mm*6mm±0.1 mm
Load :
196N ± 0.2% (expandable to 392N)
Counter :
0-9999 hours
MOQ :
1
Description

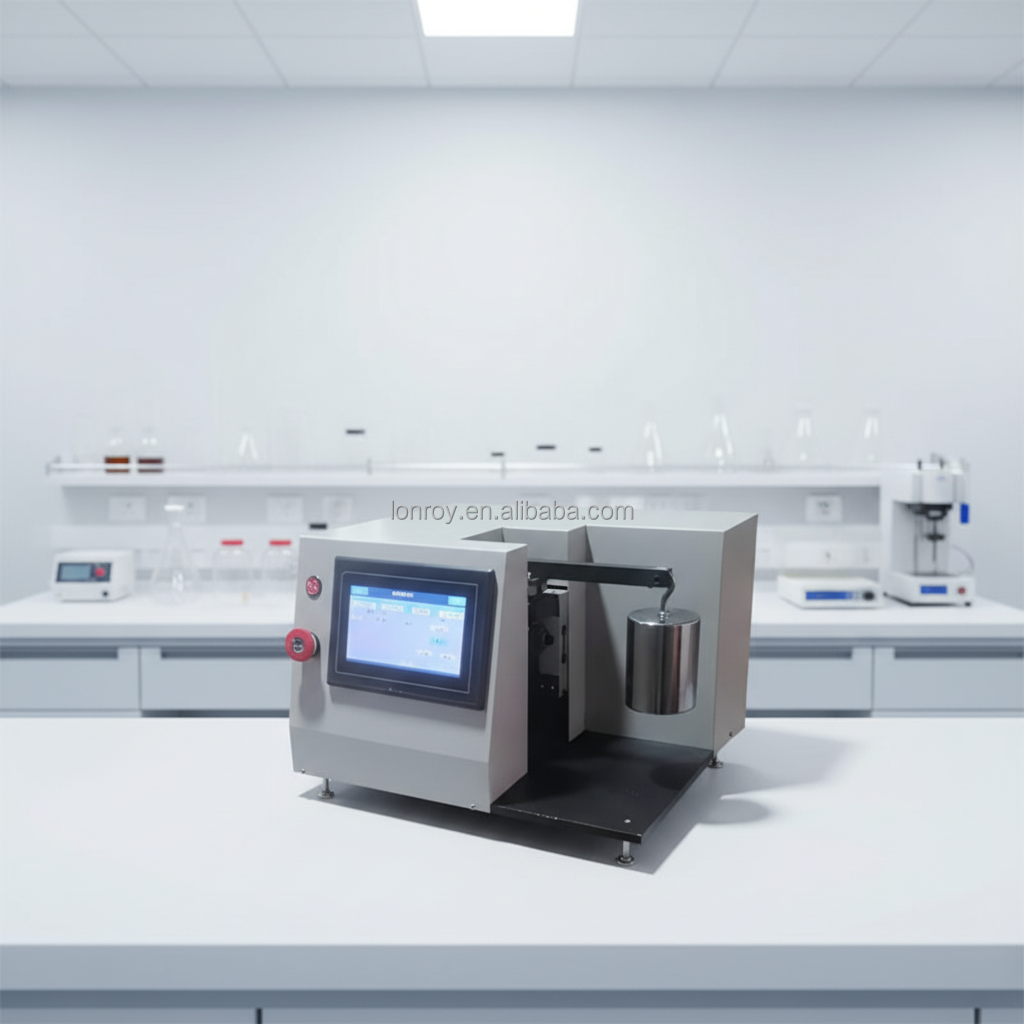

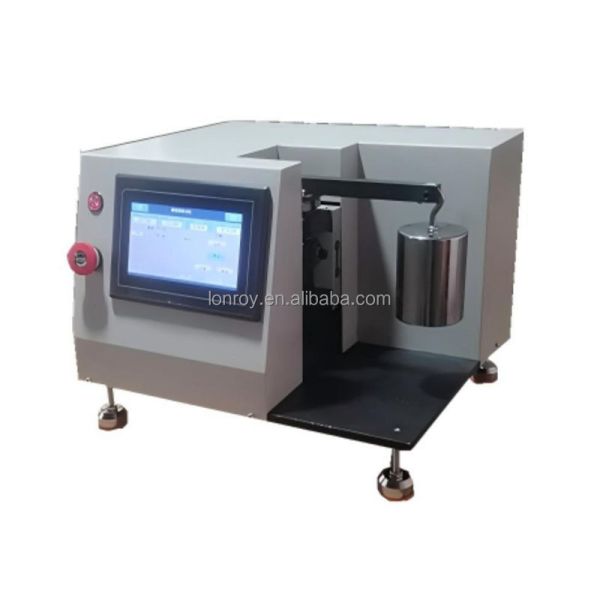

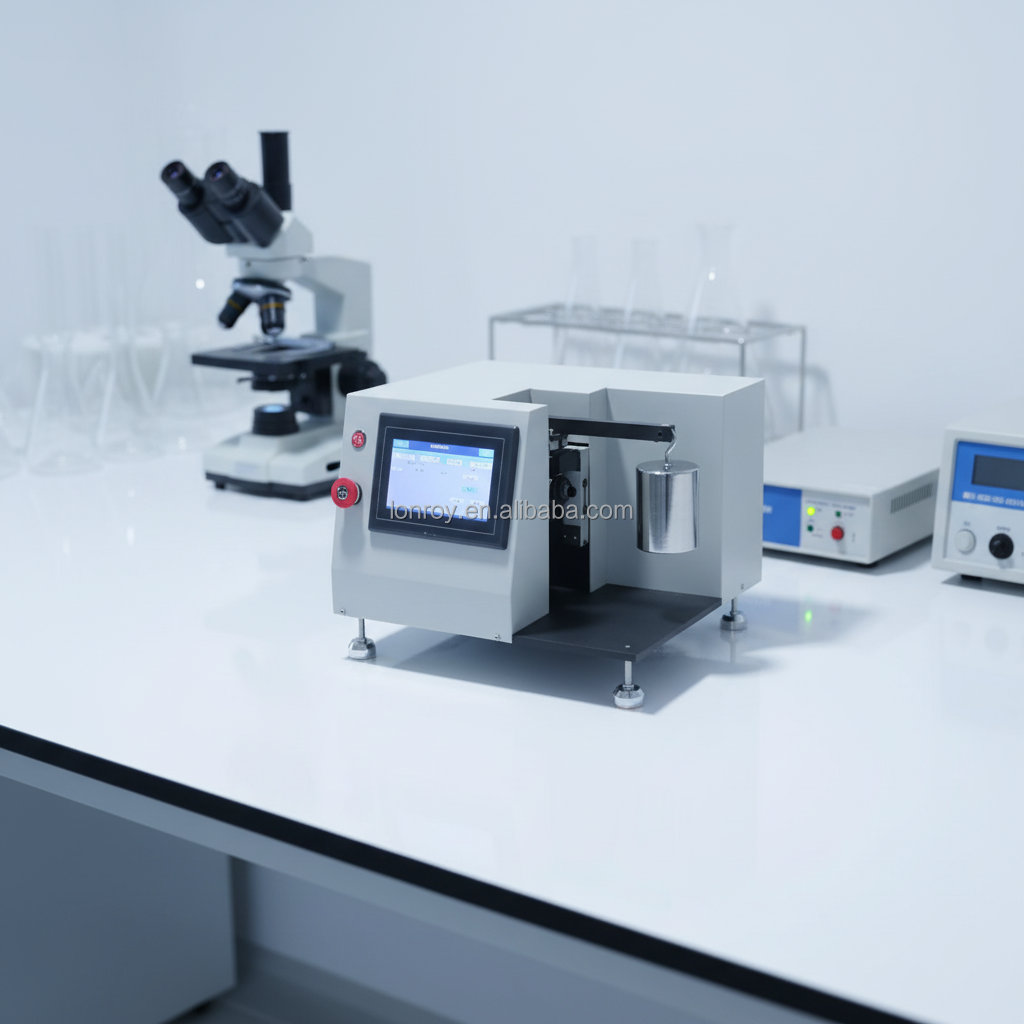

Plastic Sliding Friction and Wear Tester Flexible Graphite Sheets Friction Coefficient Testing Machine Tribometer

Product Description

I. Product Overview

This machine conforms to the standards: GB/T 3960-2016 Standard Test Method for Sliding Friction and Wear of Plastics, GB/T 9141.8-1999 Test Method for Sliding Friction Coefficient of Flexible Graphite Sheets. It is suitable for testing the sliding friction and wear performance of plastic products, rubber products, graphite sheets, or other composite materials. It can also measure the friction force, friction coefficient, and wear amount of the test samples.

This machine uses a high-precision torque sensor and a 16-bit single-chip microcomputer electronic processing system, resulting in very high accuracy for all test indicators. Due to its high degree of integration, the equipment itself has good stability. This machine features one-time setting, fully automatic operation, automatic shutdown after the experiment, and detection of wear degree. It is an essential testing equipment for various research institutions, universities, and enterprise laboratories.

II. Main Application Scope

Suitable for testing the sliding friction and wear performance of plastic products, rubber products, or other composite materials. It can also measure the friction force, friction coefficient, and wear amount of the test samples.

Manufacturing Standard: GB3960 Standard Test Method for Sliding Friction and Wear of Plastics

III. Accuracy

1. Speed accuracy: 1%

2. Load accuracy: 0.5%

3. Friction torque accuracy: 1%

4. Counter accuracy: 1S

5. Sensor measurement accuracy: 1% FS

Plastic Sliding Friction and Wear Tester Flexible Graphite Sheets Friction Coefficient Testing Machine Tribometer

Technical Specification

Sample Size

30mm*7mm*6mm±0.1 mm

Rotation Speed

0-200 rpm, continuously adjustable up to 500 rpm

Load

196N ± 0.2% (expandable to 392N)

Friction Ring Size

40×10mm, chamfer 0.5×45°, concentricity deviation between outer and inner circles less than 0.01

Friction Torque

0--4 N·m ±0.5%

Counter

0-9999 hours

Weight

One 4KG weight or four 1KG weights, allowing for weight stacking.

Plastic Sliding Friction and Wear Tester Flexible Graphite Sheets Friction Coefficient Testing Machine TribometerPlastic Sliding Friction and Wear Tester Flexible Graphite Sheets Friction Coefficient Testing Machine TribometerPlastic Sliding Friction and Wear Tester Flexible Graphite Sheets Friction Coefficient Testing Machine TribometerPlastic Sliding Friction and Wear Tester Flexible Graphite Sheets Friction Coefficient Testing Machine Tribometer
