Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
40 W
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Blackboard Rotation Speed :
200-400 r/min
Dimensions :
L620*W370*H340mm
Power Supply :
AC 220 V, 40 W
Weight :
22Kg
MOQ :
1
Description

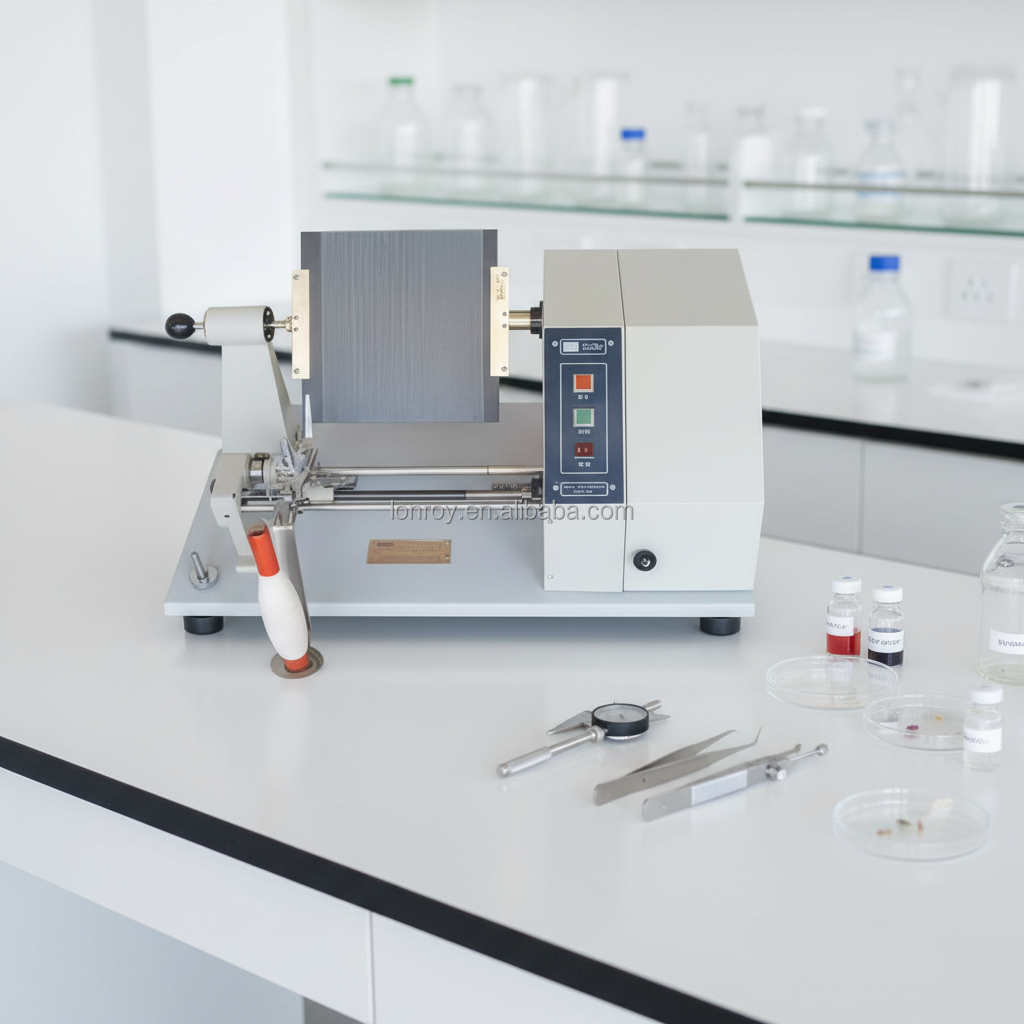

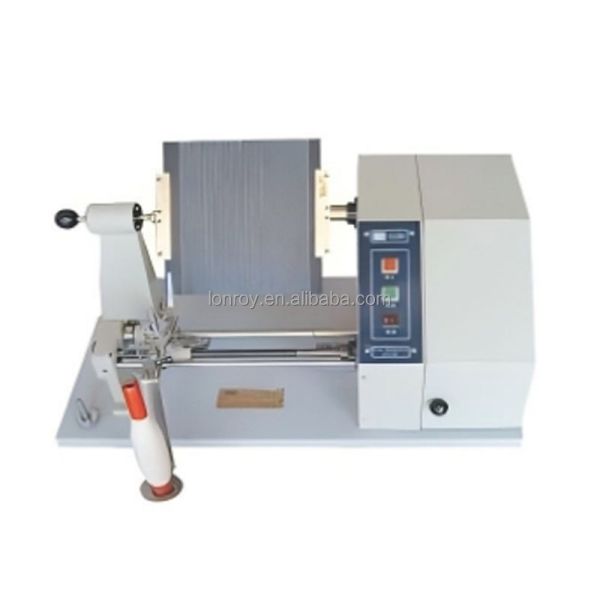

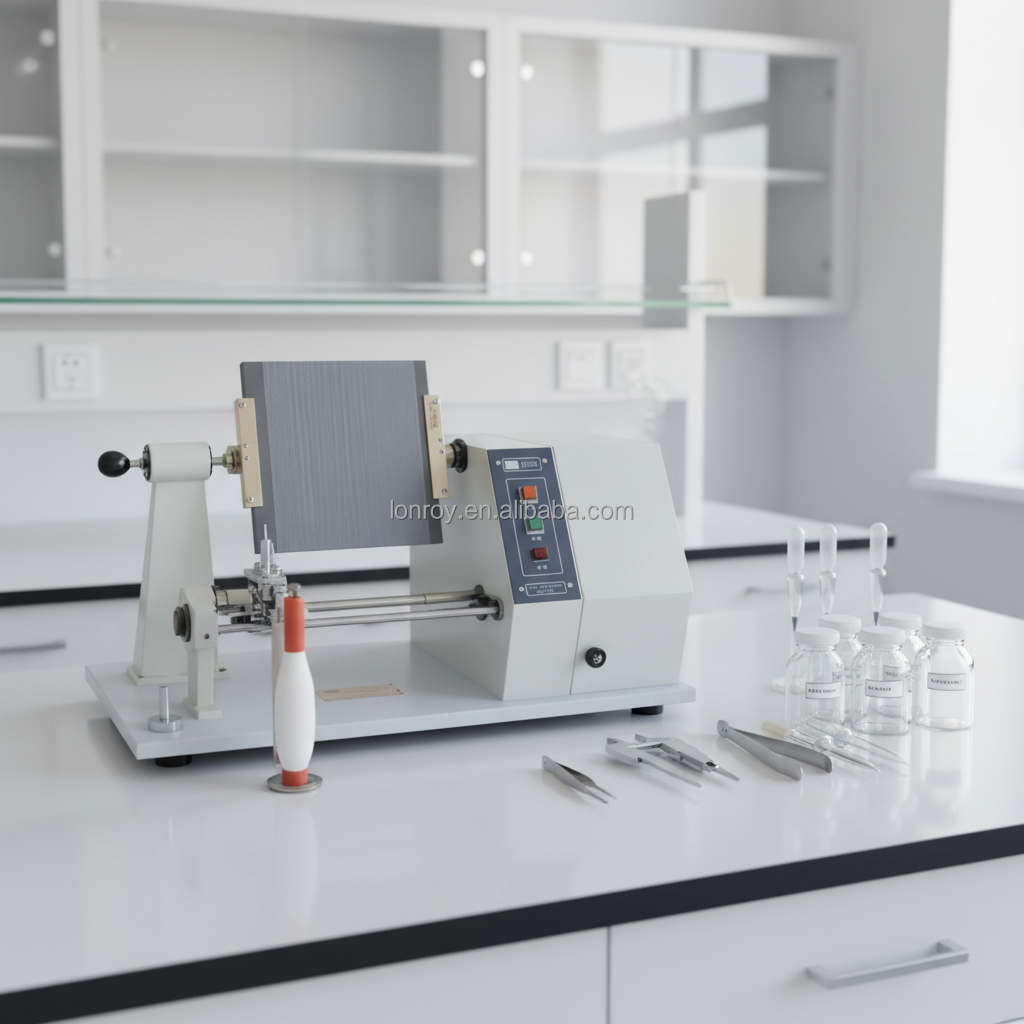

FZ/T 32004 FZ/T 32005 Winder Automatic Yarn Winding Machine Yarn Winder Textile Winding Equipment

Product Description

Application

Used for winding various yarns onto standard blackboards to inspect and evaluate the appearance quality grade of the yarn.

Relevant Standards

GB/T9996, GB/T398, GB/T5324, FZ/T32004, FZ/T32005, etc.

IFZ/T 32004 FZ/T 32005 Winder Automatic Yarn Winding Machine Yarn Winder Textile Winding Equipment

Technical Specification

Blackboard Specifications

250×180 mm / 250×220 mm

Yarn Winding Density

7, 9, 11, 13, 15, 19/cm, 20 threads/45 mm

Pre-tension

10–90 cN

Blackboard Rotation Speed

200–400 r/min

Dimensions

L620×W370×H340 mm

Weight

22 Kg

Power Supply

AC 220 V, 40 W
