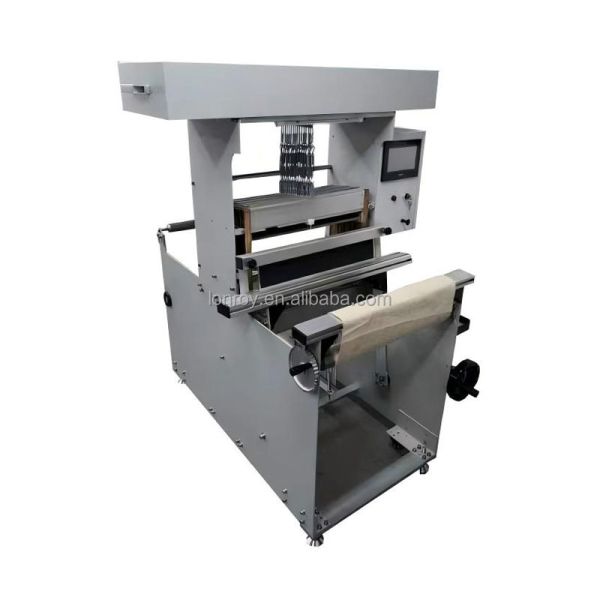

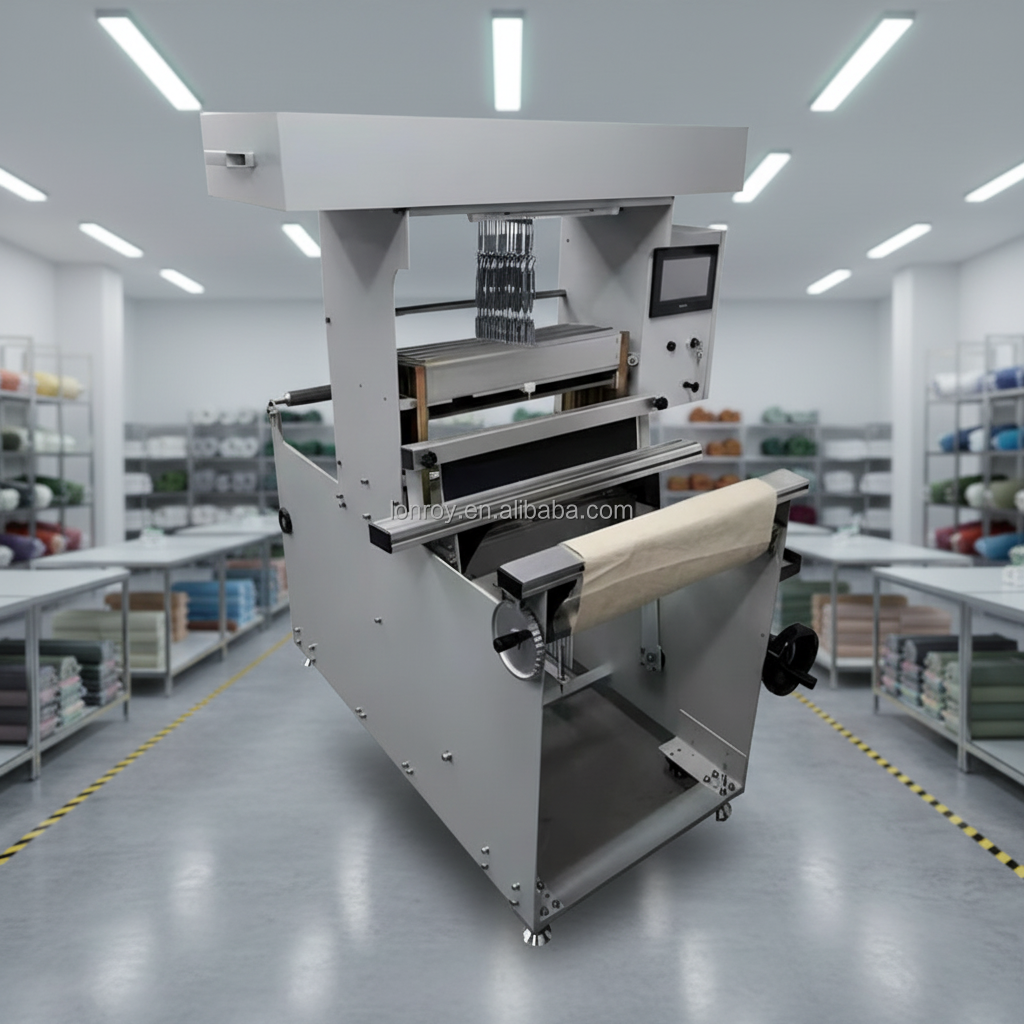

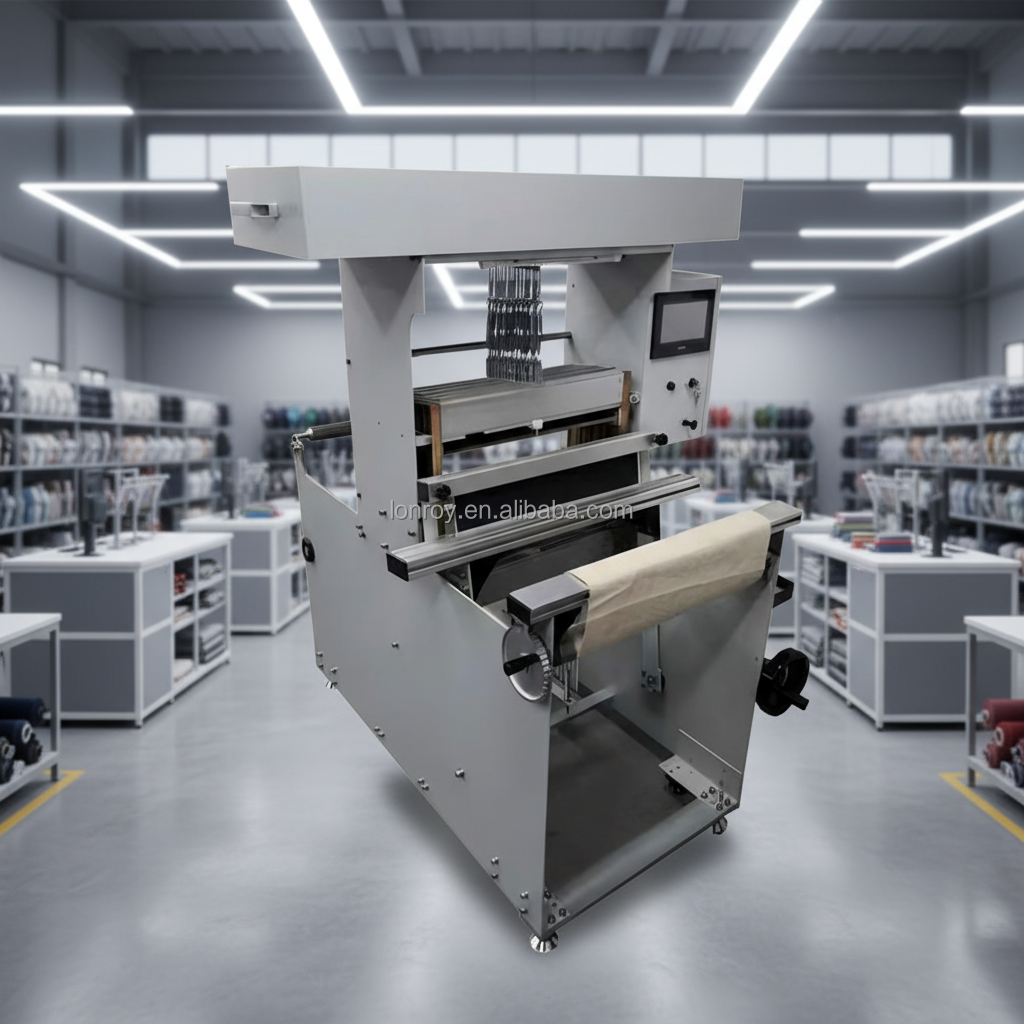

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Warp Feeding :
Manual
Number of Heddle Frames :
16 frames
Power Supply :
Rated power 220V, frequency 50Hz
Weaving Width :
Reed width 40 cm
MOQ :
1
Description

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment

Product Description

Scope of Application

Used for sample weaving of various fabrics such as cotton, wool, silk, linen, chemical fibers, and blends. This equipment features low noise, reliable and wear-resistant structure, and stable performance. It is widely used in the textile, printing and dyeing, and yarn-dyed industries, as well as in related teaching and research units of universities and colleges.

Instrument Features

(1) Adopts a pneumatic shedding device, avoiding the drawbacks of traditional mechanical structures that are prone to wear; features smooth operation, low noise, and high reliability;

(2) The electrical system uses PLC control and a touch screen interface for operation, with a reserved computer interface for PC and PLC communication, making operation simple and convenient.

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment

Technical Specification

Weaving Width

Reed width 40 cm

Number of Heddle Frames

16 frames

Shedding

(Computer) PLC control, pneumatic opening; electronic dobby shedding, photoelectric control. The structure adopts pneumatic opening with slow start and slow release mechanisms for smooth shedding; pattern input via touch screen, storage and use of at least 50 pattern files, patterns are not lost (unless actively deleted). Organizational cycles of 1000 wefts or more can be set.

Take-up

Manual take-up

Warp Feeding

Manual

Weft Insertion

Manual

Color Selection

Manual

Machine Body Structure

Uses seamless rectangular steel tube integral welding, and the machine surface is treated with baked paint.

Weft Insertion Bracket

Uses a rigid aluminum alloy weft insertion bracket, with bearings on the bracket base.

Air Source Control

Air pressure 0.45-0.8 MPa, maximum air consumption 200 L/min

Power Supply

Rated power 220V, frequency 50Hz

Semi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving EquipmentSemi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving EquipmentSemi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving EquipmentSemi-Automatic Sample Weaving Machine Laboratory Electrical Various Fabrics Sample Weaving Equipment
