Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Rotation speed :
0.5-10 rpm
Main unit dimensions (mm) :
approximately 400*400*800
Main unit weight :
approximately 40 KG
Friction torque measurement error :
±1
MOQ :
1
Description

Bearing Friction Torque Tester High-precision Bearings Friction Torque Measuring Instrument Machine

Product Description

Product Overview and Applications

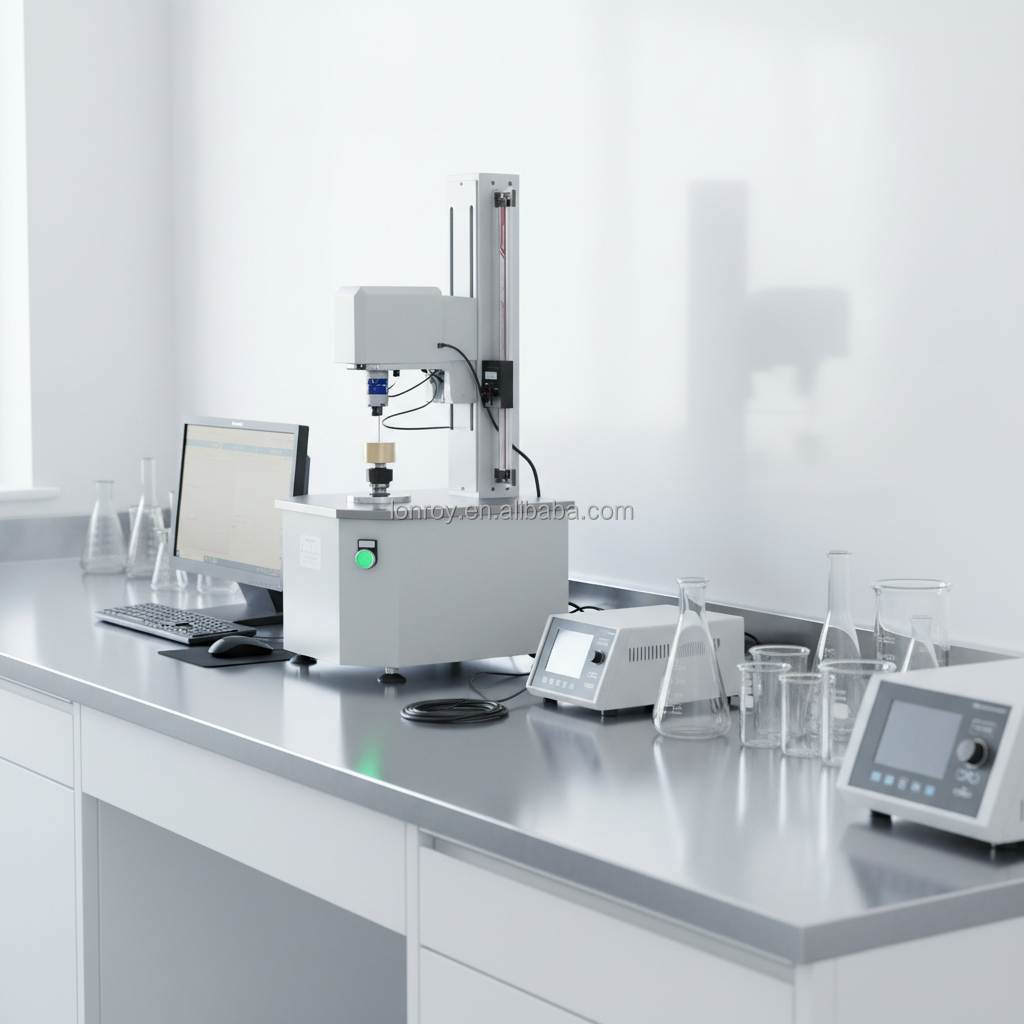

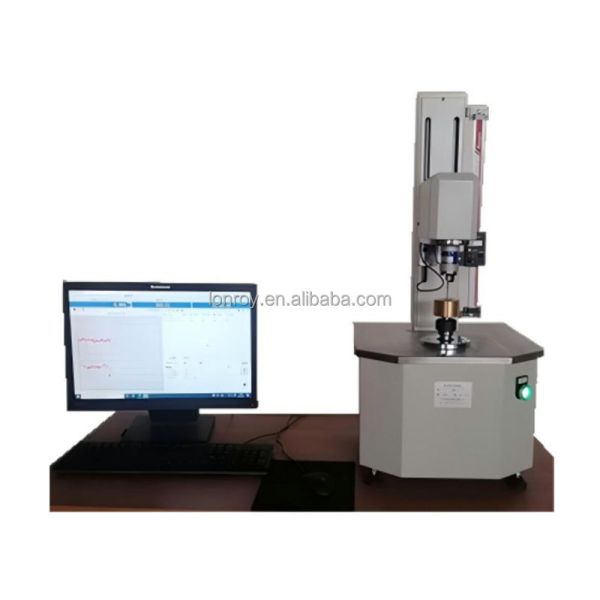

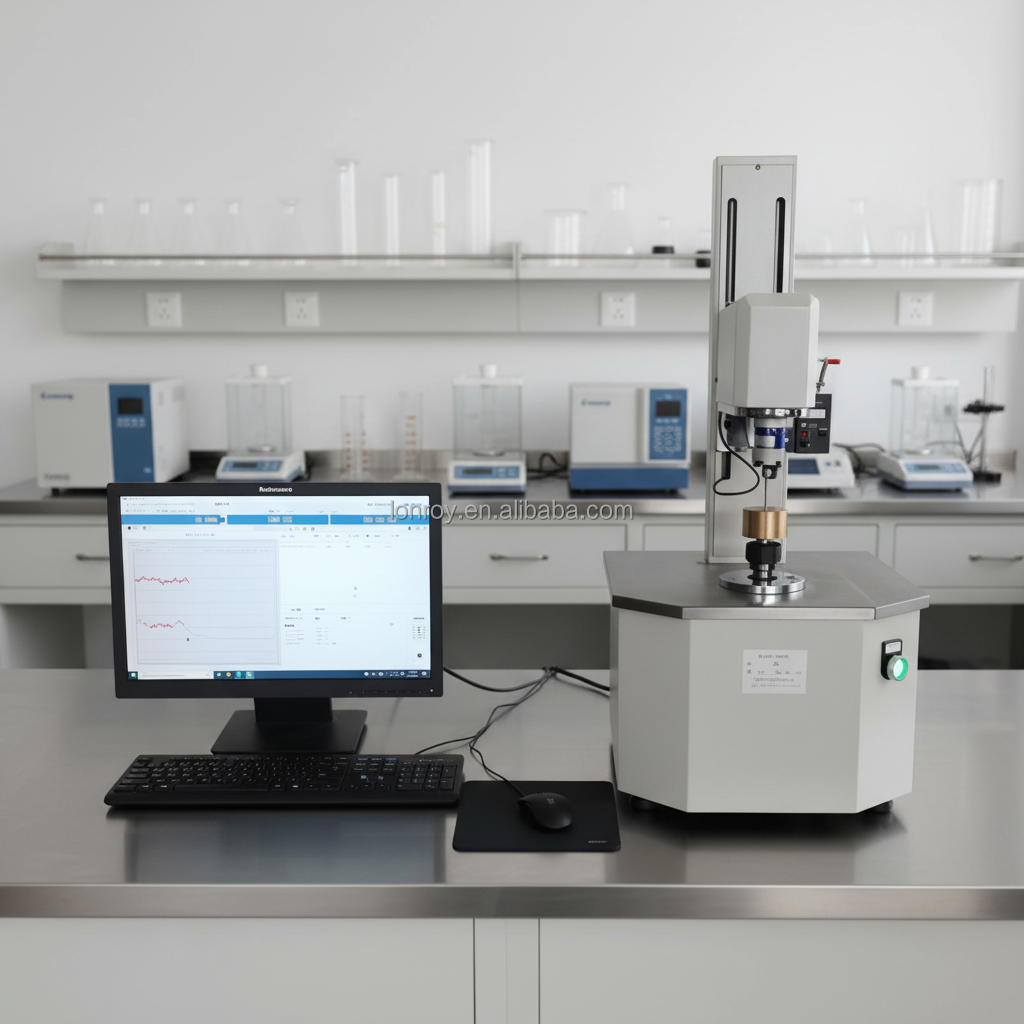

1. This instrument is primarily used for testing or comparative testing and analysis of bearing friction torque. It mainly consists of a test head, sensing system, transmission and speed change system, loading block, and computer control system. It is suitable for bearing manufacturers to test the friction torque performance of bearings.

2. Advanced computer technology combined with the bearing test head makes testing operations very convenient.

3. The system consists of an advanced computer and a standard bearing test head. The test head includes a torque sensor, optical encoder, and variable speed drive. This design allows the system to maintain a constant rotation (0.5-10 rpm) while simultaneously measuring the bearing's torque and position.

4. The friction torque, rotation angle, and rotation time parameters of the tester are all controlled by the computer interface, and it has automatic forward and reverse rotation testing functions. Test data is collected in real time, and corresponding test curves (such as torque-time, torque-angle curves, etc.) can be plotted. Data can be stored, retrieved, and printed, ensuring accuracy and reliability without human error.

5. The equipment is equipped with an emergency stop device and overload, overvoltage, and overcurrent protection functions. When any parameter exceeds the preset value, the testing machine stops rotating.

RBearing Friction Torque Tester High-precision Bearings Friction Torque Measuring Instrument Machine

Technical Specification

Friction torque range

500 mN.m

Friction torque measurement error

±1

Friction torque measurement accuracy

0.01 mN.m

Rotation angle measurement range

0-999999°

Angle measurement error

±1

Angle measurement accuracy

0.1°

Rotation speed

0.5-10 rpm

Measuring bearing outer diameter range

0-260 mm

Main unit dimensions (mm)

approximately 400*400*800

Main unit weight

approximately 40 KG
