ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
0.75 kW
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Test Load :
0-225 N
Test Force Error :
±1%
Input Power :
0.75 kW
Power Supply :
AC 220V ± 10%
MOQ :
1
Description

ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester

Product Description

Product Overview and Structure

The LR-E101 dry and wet sand rubber wheel abrasion testing machine conforms to the requirements of the American ASTM-G65 standard (Standard Test Method for Measuring Abrasion Using the Dry Sand/Rubber Wheel Apparatus), and also to the JBT_7705-1995 standard (Test Method for Abrasive Wear of Loose Abrasive Particles - Rubber Wheel Method). This machine is a dry and wet sand semi-free abrasive wear testing machine. The working principle for wet sand testing: It uses a counter-clockwise rotating rubber wheel to drive abrasive materials such as mineral sand, gravel, and mud to abrade various metal or non-metal materials, thereby testing the wear resistance of the materials. The working principle for dry sand testing: Quartz sand falls freely along a metal nozzle, and a clockwise rotating rubber wheel drives the quartz sand (mineral sand, gravel, sand) and other abrasive materials to abrade various metal or non-metal materials, thereby testing the wear resistance of the materials. It can be used in various industries such as mining machinery, construction machinery, excavating machinery, transportation machinery, and agricultural machinery for screening wear-resistant materials in the laboratory. This machine can also be better used by research departments for studying the mechanism of abrasive wear.

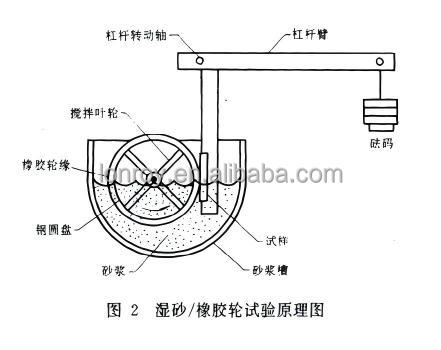

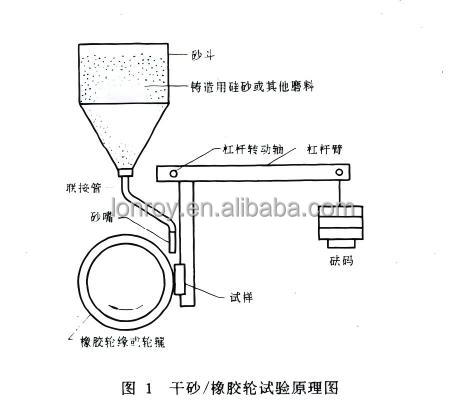

The schematic diagram of the test principle is as follows:

ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion TesterASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester

RASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester

Technical Specification

Test Load

0-225 N

Test Force Error

±1%

Rubber Wheel Rotation Speed

1 r/min - 500 r/min (stepless speed regulation)

Spindle Speed Accuracy

±2 r/min

Rubber Wheel Diameter

Dry sand 240 mm, Wet sand 178 mm

Rubber Wheel Thickness

12.7 mm

Rubber Wheel Hardness

60 ± 2 Shore hardness

Rubber Wheel Rotation Direction

Counterclockwise for wet sand, clockwise for dry sand

Friction Motion Linear Velocity

3.3-16.7 Km/h

Testing Machine Control Method

Time, speed, and number of rotations are adjustable and controllable; test force is manually loaded using graded weights.

Sample Dimensions (mm)

Dry sand 7525(3-8), Wet sand 5825(3-8)

Abrasive Specifications

60 mesh particle size (212-425 μm) Hukou sand, Xinhui sand, or quartz sand

Input Voltage

AC 220V ± 10%

Input Power

0.75 kW

ASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion TesterASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion TesterASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion TesterASTM G65 Rubber Wheel Dry and Wet Sand Abrasion Test Machine Laboratory Rubber Wheel Abrasion Tester
