Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
2.0 kW
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Temperature resolution :
0.01 °C
Specimen flatness :
0.1 mm
Pressure range :
0-400 N
Power supply :
AC 220 V±10%, 2.0 kW
MOQ :
1
Description

Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer

Product Description

Description

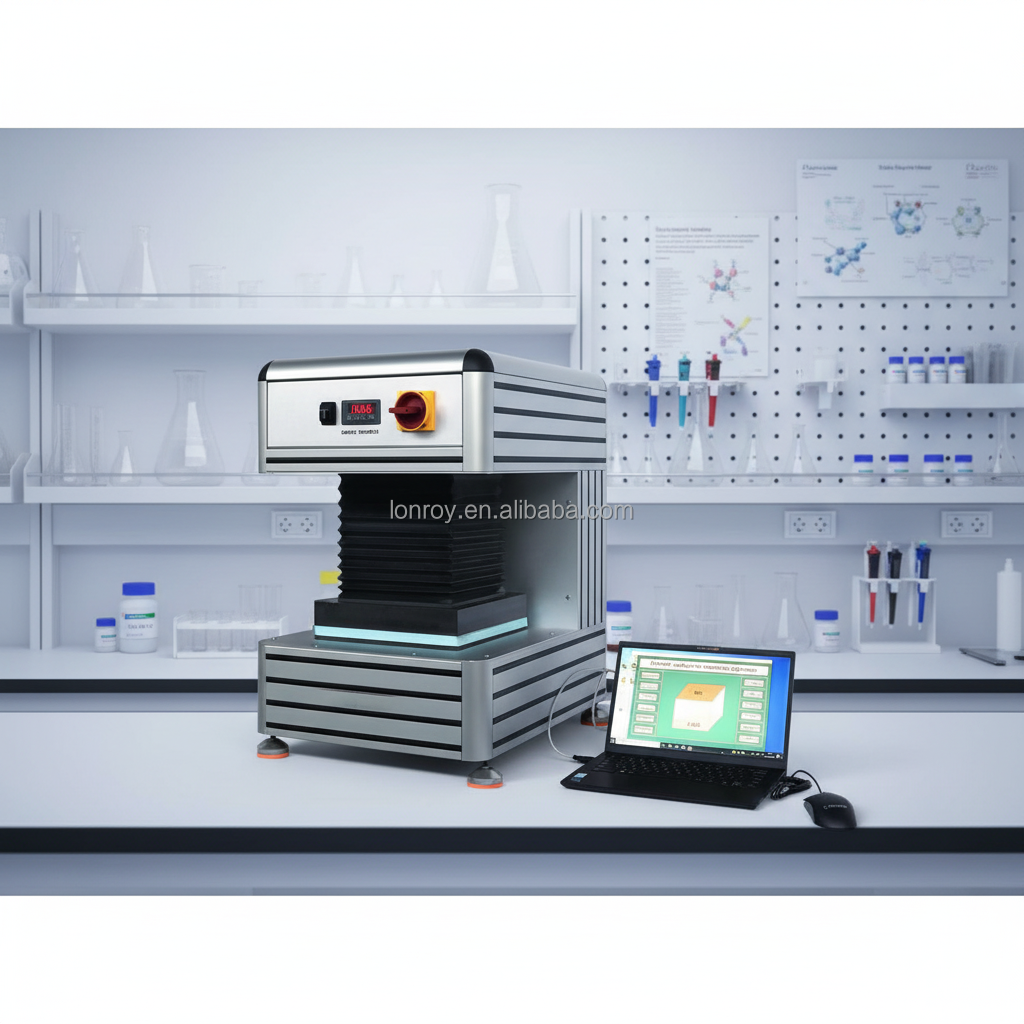

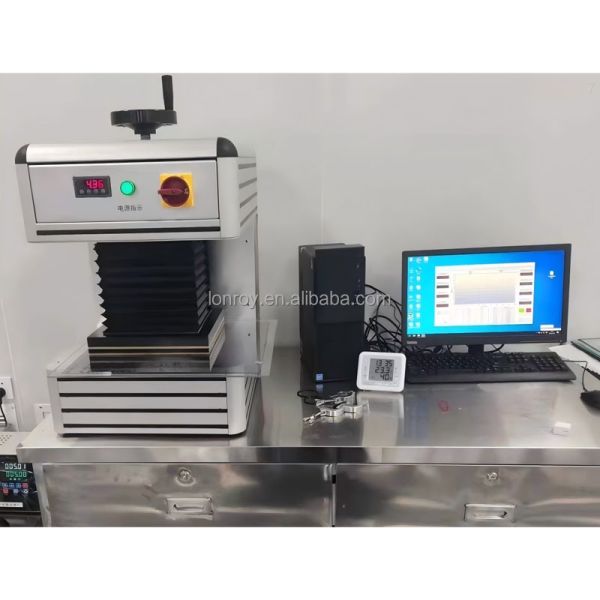

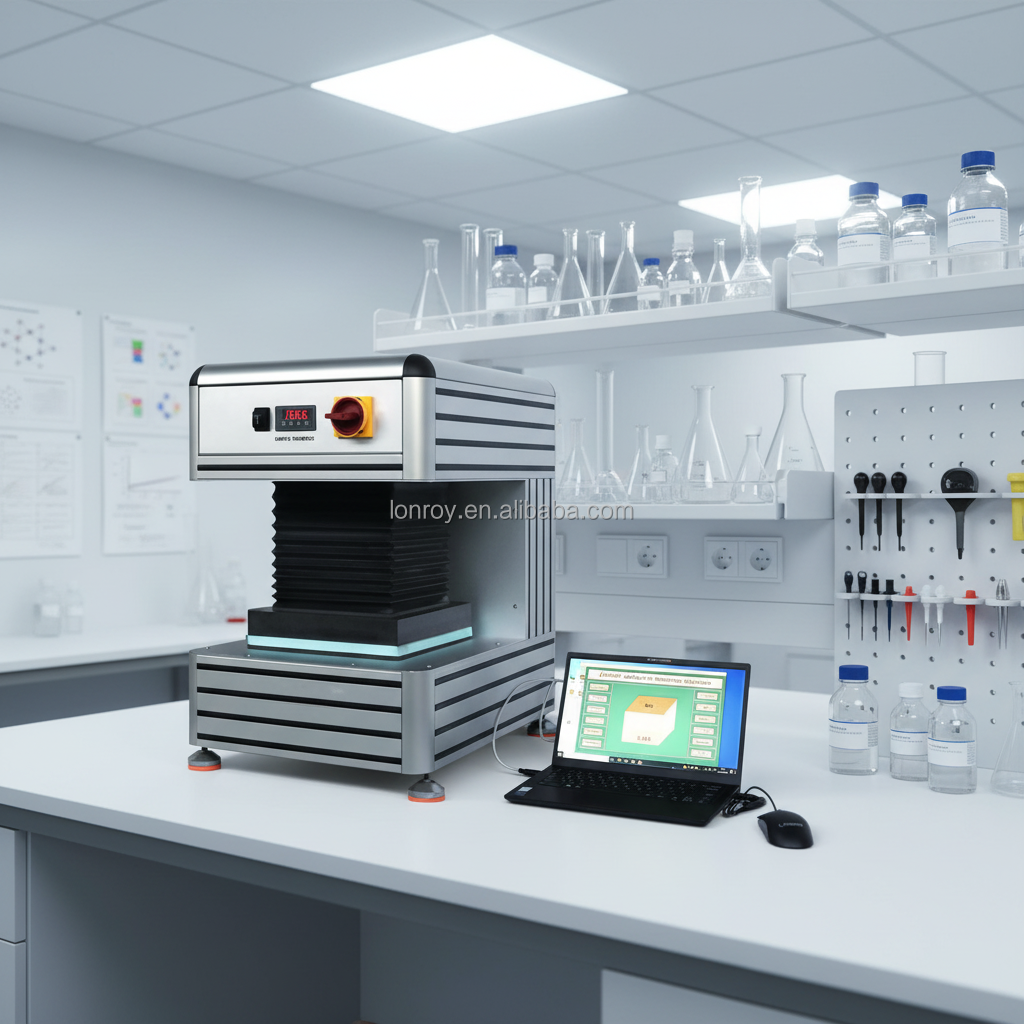

This thermal insulation coating thermal conductivity meter is designed to measure the thermal conductivity of reflective insulation coatings for buildings in accordance with GB25261-2018. It features simple operation, high accuracy, and fast testing speed.

Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer

Technical Specification

Heat flow fluctuation

0.005–0.05 mV

Thermal conductivity measurement display range

(0.001–3.000) W/(m·K)

Thermal conductivity measurement accuracy

±3%

Thermal conductivity measurement repeatability

±1%

Temperature measurement range

-5 °C to 100 °C

Temperature resolution

0.01 °C

Temperature control accuracy

0.05 °C

Specimen thickness

Standard 25 mm, range: (5–40) mm

Measurement range

0–50 mm

Measurement accuracy

1 µm

Specimen flatness

0.1 mm

Pressure range

0–400 N

Pressure measurement accuracy

0.1 N

Test chamber temperature

Standard temperature (23±2) °C

Test chamber humidity

Standard humidity (40–60) %RH

Power supply

AC 220 V±10%, 2.0 kW

Thermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity AnalyzerThermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity AnalyzerThermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity AnalyzerThermal Insulation Coating Thermal Conductivity Meter High Accuracy Thermal Insulation Paints Thermal Conductivity Analyzer
