Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Operating Conditions :
Ambient Temperature: 10-35 °C
Power Supply :
220 V, 50 Hz
Relative Humidity :
≤ 80%
Measurement Accuracy :
±3%
MOQ :
1
Description

Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment

Product Description

Description

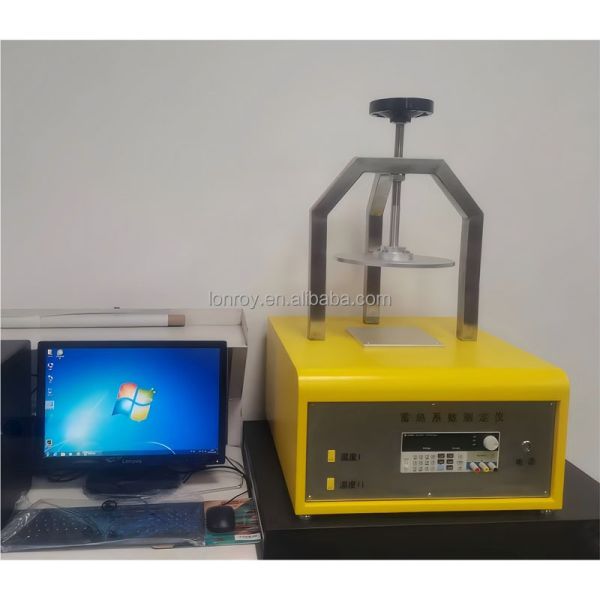

The heat pulse method thermal conductivity tester is used to measure the thermal conductivity, thermal storage coefficient, thermal diffusivity, and specific heat capacity of homogeneous plate-like, colloidal, powdered, and granular materials, either dry or at varying moisture levels. It is suitable for testing insulation materials, concrete, plastics, rubber, graphite, and other inorganic materials.

Product Features

The heat pulse method thermal conductivity tester offers simple setup, high accuracy, and fast testing (one test takes approximately ten minutes). It can simultaneously measure a material's thermal conductivity, thermal storage coefficient, thermal diffusivity, and specific heat capacity in a single test, and can also measure thermophysical properties under varying moisture levels.

Reference Standards

JGJ/T 12-2019 "Technical Specification for Lightweight Aggregate Concrete"

JG158-2004 "Glue Powder Polystyrene Granule External Wall Insulation System"

JG/T283-2010 "Expanded Vitrified Microsphere Lightweight Mortar" - Appendix B covers the determination of thermal storage coefficient.

Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment

Technical Specification

Thermal Conductivity Test Range

0.001–10 W/(m²·K)

Thermal Storage Coefficient Test Range

0.1–100 W/(m²·K)

Specimen Size

One thin specimen: 20 × 20 × (1.5–3) cm

Two thick specimens

20 × 20 × (4–10) cm

Power Supply

220 V, 50 Hz

Operating Conditions

Ambient Temperature: 10–35 °C

Relative Humidity

≤ 80%

Measurement Accuracy

±3%

Control & Output

Computer-controlled automatic testing and data printout

Heat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test EquipmentHeat Pulse Method Thermal Conductivity Tester Thermal Storage Coefficient Test Machine Thermal Diffusivity Test Equipment
