Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Preset time :
5 min
Drum length :
126 ± 0.5 mm
Motor power :
0.55 KW
Power Supply Voltage and Frequency :
380/220V
MOQ :
1
Description

Granular Activated Carbon Strength Tester Coal-Based Granular Activated Carbon Abrasion Resistance Analyzer

Product Description

Product Details

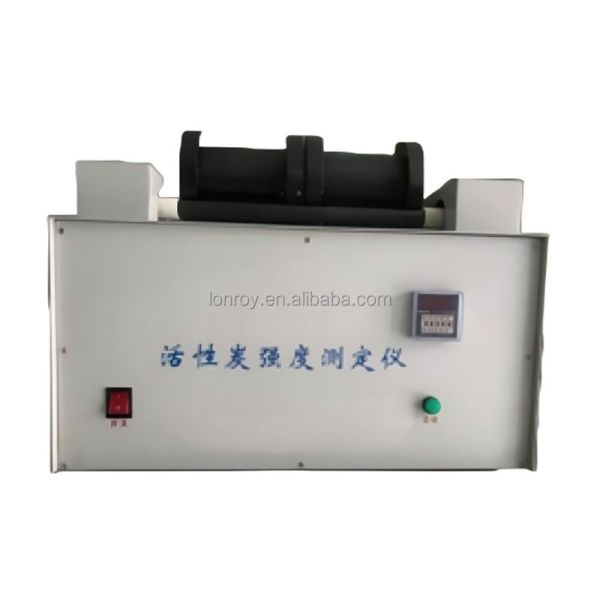

The Granular Activated Carbon Strength Tester is a specialized instrument for measuring the abrasion resistance of activated carbon. It is designed and manufactured in accordance with the national standard GB/T 12496.6-1999 "Test Methods for Wood-Based Activated Carbon - Determination of Strength" and also complies with national standard GB/T 7702.3-2008 "Test Methods for Coal-Based Granular Activated Carbon - Determination of Strength". It is also suitable for the measurement and analysis of granular materials with similar properties.

It can measure the strength of various granules, such as spherical, extruded, and flake-shaped materials, catalysts, and catalyst carriers; it provides data analysis for improving the proportioning of granular materials.

Remarks

1. In accordance with standards GB/T 12496.6 and GB/T 7702.3-2008.

2. For coal-based activated carbon, a special activated carbon strength drum with longitudinal ribs is used. 3. For wood-based activated carbon in columnar form, use a special activated carbon strength cylinder with internal longitudinal ribs.

4. For wood-based activated carbon in irregular granular form, use a special activated carbon strength cylinder without internal longitudinal ribs.

5. If both coal-based and wood-based activated carbon strengths are to be measured, it is recommended to have two additional cylinders, i.e., two activated carbon strength cylinders with longitudinal ribs and two without longitudinal ribs.

HGranular Activated Carbon Strength Tester Coal-Based Granular Activated Carbon Abrasion Resistance Analyzer

Technical Specification

Drum rotation speed

50 r/min ± 2 r/min

The drum contains five solid steel balls

The drum contains five solid steel balls

Steel ball diameter

φ14.3 mm ± 0.2 mm

Drum inner diameter

φ80 mm ± 0.2 mm

Drum depth

126 mm ± 0.5 mm

Drum wall thickness

3 mm ± 0.3 mm

Drum end cap outer diameter

120 mm ± 0.5 mm

Drum inner surface roughness

Ra1.6-Ra5.3

Drum length

126 ± 0.5 mm

Motor power

0.55 KW

Input voltage

380/220V

Preset time

5 min
