Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Temperature Control Range :
1.0℃-99.9℃
Dimensions (Length * Width * Height) :
Temperature Control Unit: 255 mm * 550 mm * 450 mm
Total Power :
≤2500W
Power Supply :
AC220V
MOQ :
1
Description

Activated Carbon Carbon Dioxide Adsorption Rate Analyzer Laboratory Carbon Dioxide Adsorption Capacity Tester

Product Description

Product Details

The activated carbon carbon dioxide adsorption rate analyzer is suitable for the determination of the carbon dioxide adsorption rate of activated carbon, conforming to the national standard LYT 1971-2011 "Activated Carbon for Pressure Swing Adsorption Hydrogen Purification (Carbon Dioxide Adsorption Capacity)".

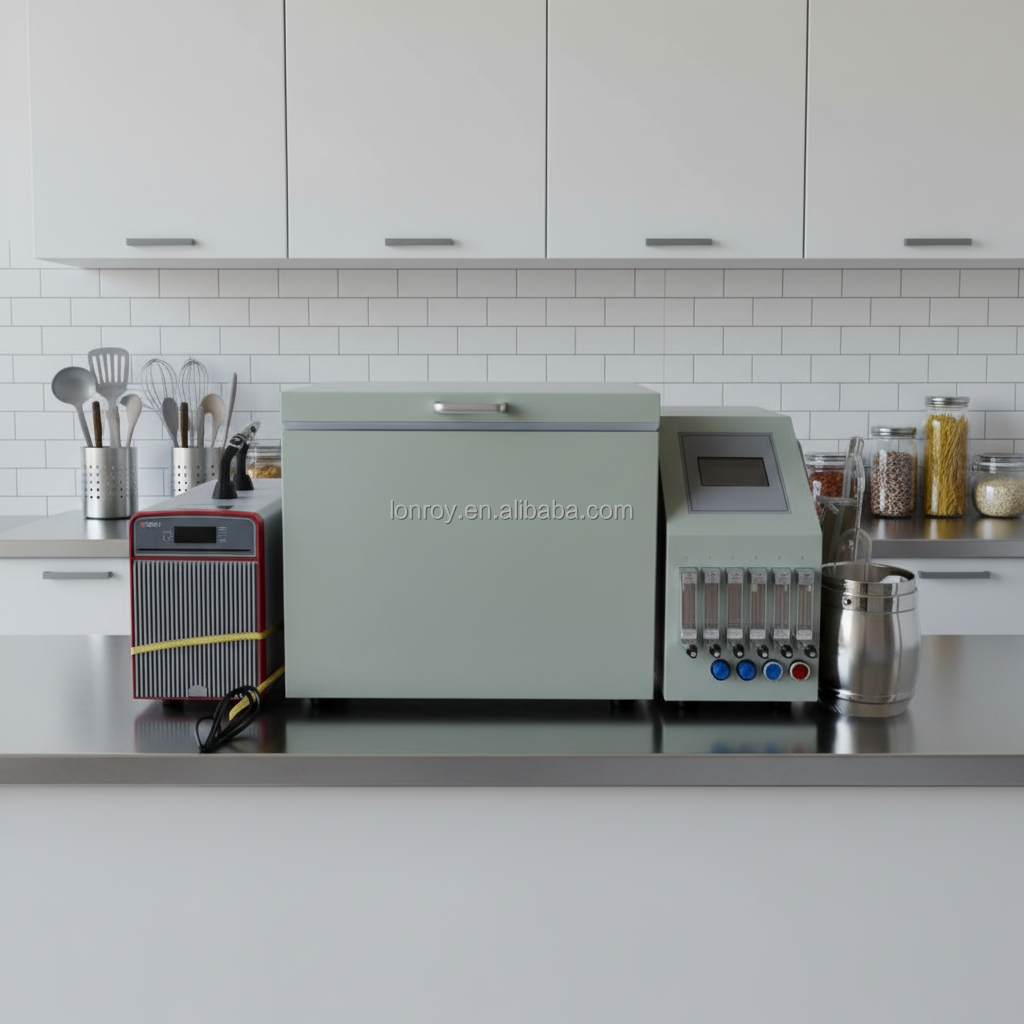

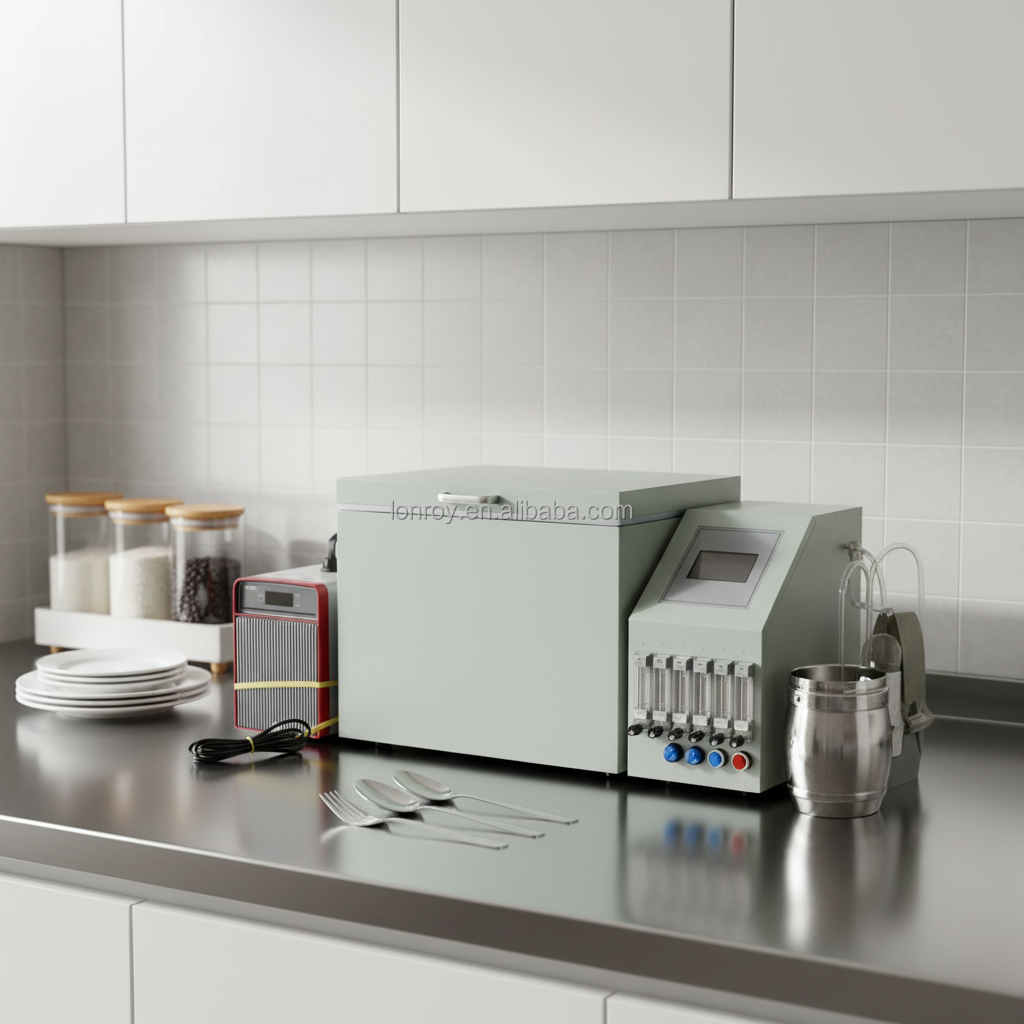

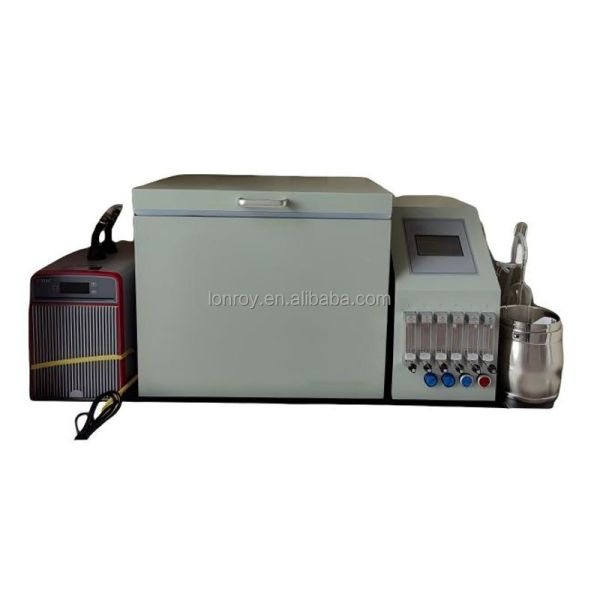

The instrument features a 4.3-inch intelligent touch screen human-machine interface design and is equipped with a standard compressor refrigeration circulation device. It automatically controls the heating and cooling functions of the water bath, ensuring the water bath temperature remains constant at the set temperature. The instrument has a modular design, consisting of an intelligent screen integrated circuit control unit, vacuum pump body, purification unit, constant temperature water bath unit, and compressor refrigeration circulation unit, forming an intelligent detection device.

It features 6 channels, allowing for simultaneous testing and analysis of 6 samples, greatly improving the efficiency of experimental operations. Temperature acquisition uses high-precision platinum probes; the non-fixed probe design allows for real-time monitoring of temperature data at every point in the water bath. The water bath unit adopts a double-layer design with environmentally friendly insulation material, providing excellent temperature control and thus greater energy efficiency.

A

Activated Carbon Carbon Dioxide Adsorption Rate Analyzer Laboratory Carbon Dioxide Adsorption Capacity Tester

Technical Specification

Voltage

AC220V

Standard

LYT 1971-2011

Heating Method

Electric heating

Display Method

4.3-inch intelligent touch screen

Temperature Control Method

Fully automatic heating and cooling

Cooling Method

Compressor cooling

Drying Device

(50mm*320mm)*2

Vacuum Degree

0.093Mpa

Safety Measures

Leakage protection switch

Flowmeter Material

Agate

Gas Flow Rate

(1670±70) mL/min

Temperature Control Accuracy

25℃±0.1℃

Temperature Control Range

1.0℃-99.9℃

Dimensions (Length × Width × Height)

Temperature Control Unit: 255 mm × 550 mm × 450 mm

Water Bath Unit

570 mm × 525 mm × 510 mm

Cooling Unit

200 mm × 340 mm × 300 mm

Total Power

≤2500W

Activated Carbon Carbon Dioxide Adsorption Rate Analyzer Laboratory Carbon Dioxide Adsorption Capacity TesterActivated Carbon Carbon Dioxide Adsorption Rate Analyzer Laboratory Carbon Dioxide Adsorption Capacity TesterActivated Carbon Carbon Dioxide Adsorption Rate Analyzer Laboratory Carbon Dioxide Adsorption Capacity TesterActivated Carbon Carbon Dioxide Adsorption Rate Analyzer Laboratory Carbon Dioxide Adsorption Capacity Tester
