Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
150W
Protection Class :
Ip56
Voltage :
220V Electrical Equipment
warranty :
1 Year
Product name :
Intelligent Siphon Sand Washing Machine (Single Channel)
Model Number :
LR-G141
Intermediate Program Settling Time :
0.5-1 min
MOQ :
1
Description

Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester

Product Description

Features and Functions

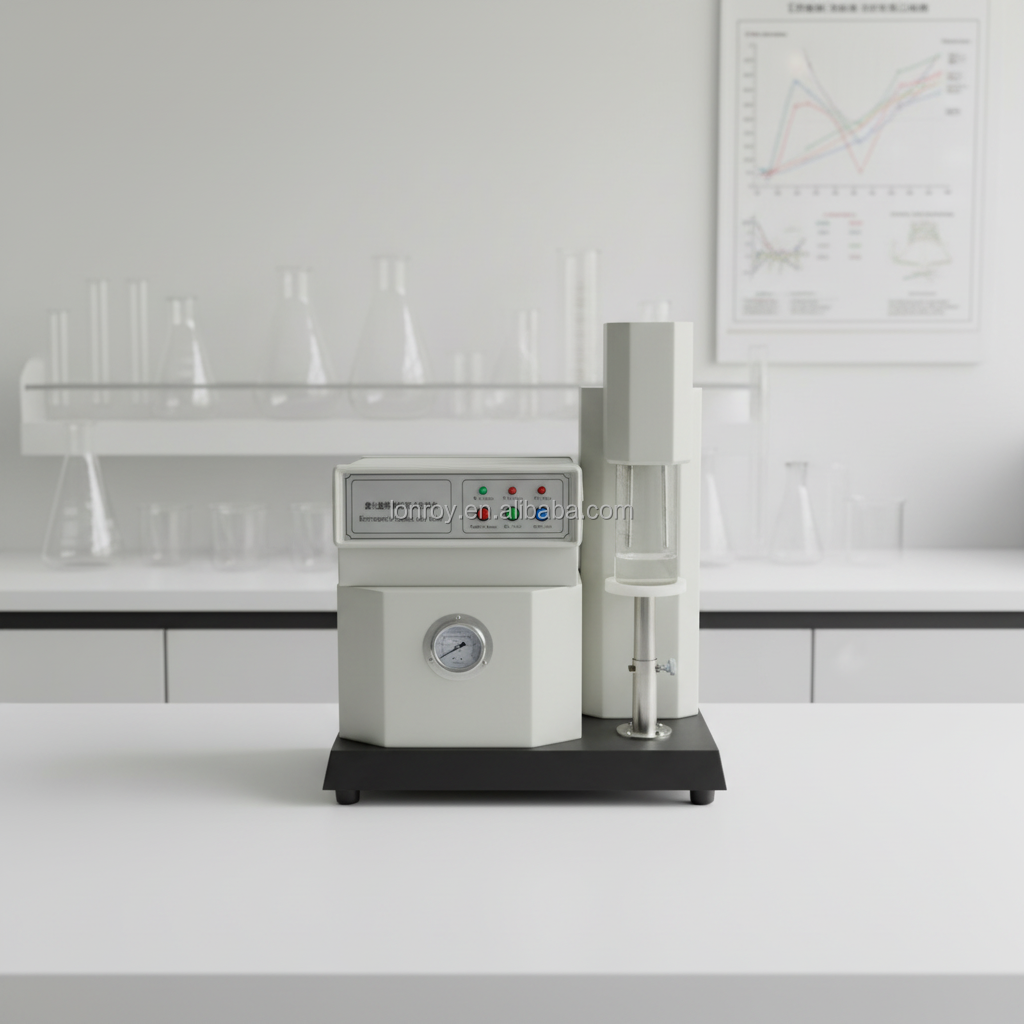

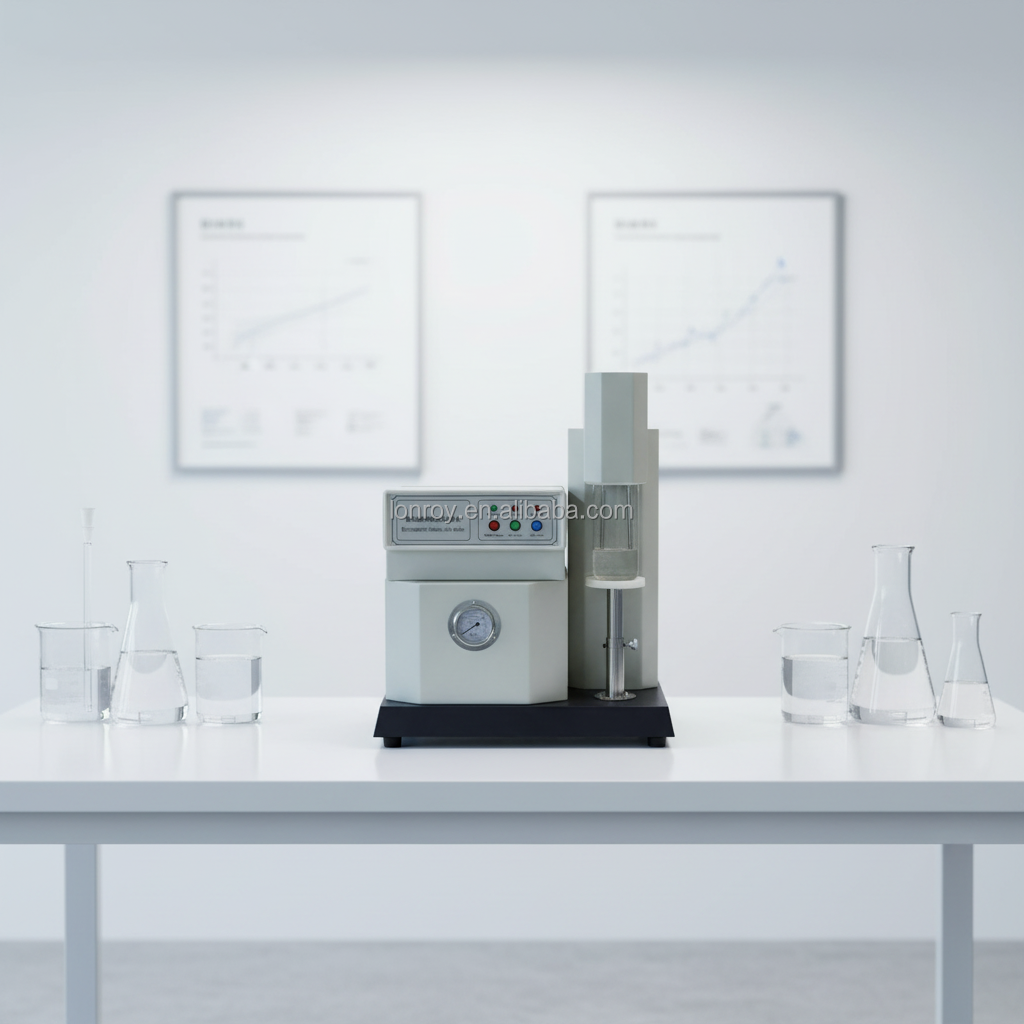

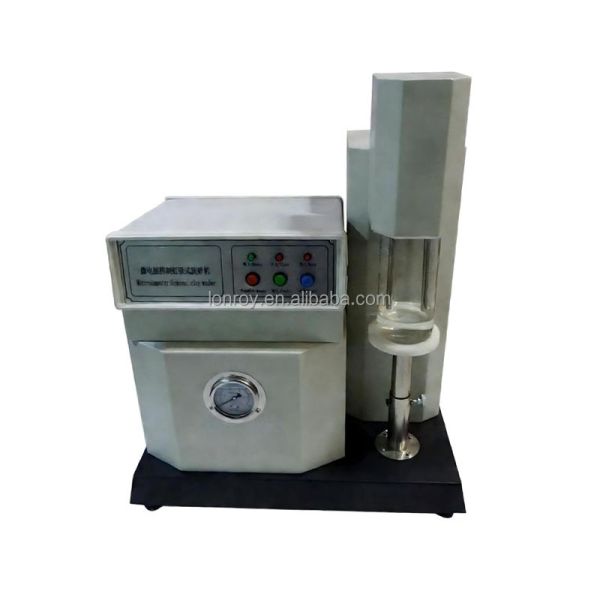

This instrument is used to determine the percentage of clay content in raw or used sand. It is an automated device controlled by a microcomputer, following the manual clay removal procedure. The instrument adds automatic timed stirring, reset, and manual interruption and drainage functions. The main components, the flushing and suction pipes, are resistant to acid and alkali corrosion, preventing sand particles (especially coal dust sand) from adhering and affecting accuracy. The controller is housed in a luxurious aluminum alloy casing, which can be easily detached for maintenance. The structure is simpler, operation is convenient, and the test results are stable, improving efficiency.

PvSingle Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester

Technical Specification

Settling Time

10 min ± 10 s (2 times)

5 min ± 5 s (n times)

Intermediate Program Settling Time

0.5–1 min

Program Control

Automatic flushing → Siphoning (according to the standard method: GB/T2684-2009)

Siphon Outlet Height from Water Surface

100 mm

Siphon Outlet Distance from Cup Bottom

35 mm

Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content TesterSingle Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content TesterSingle Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content TesterSingle Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester
