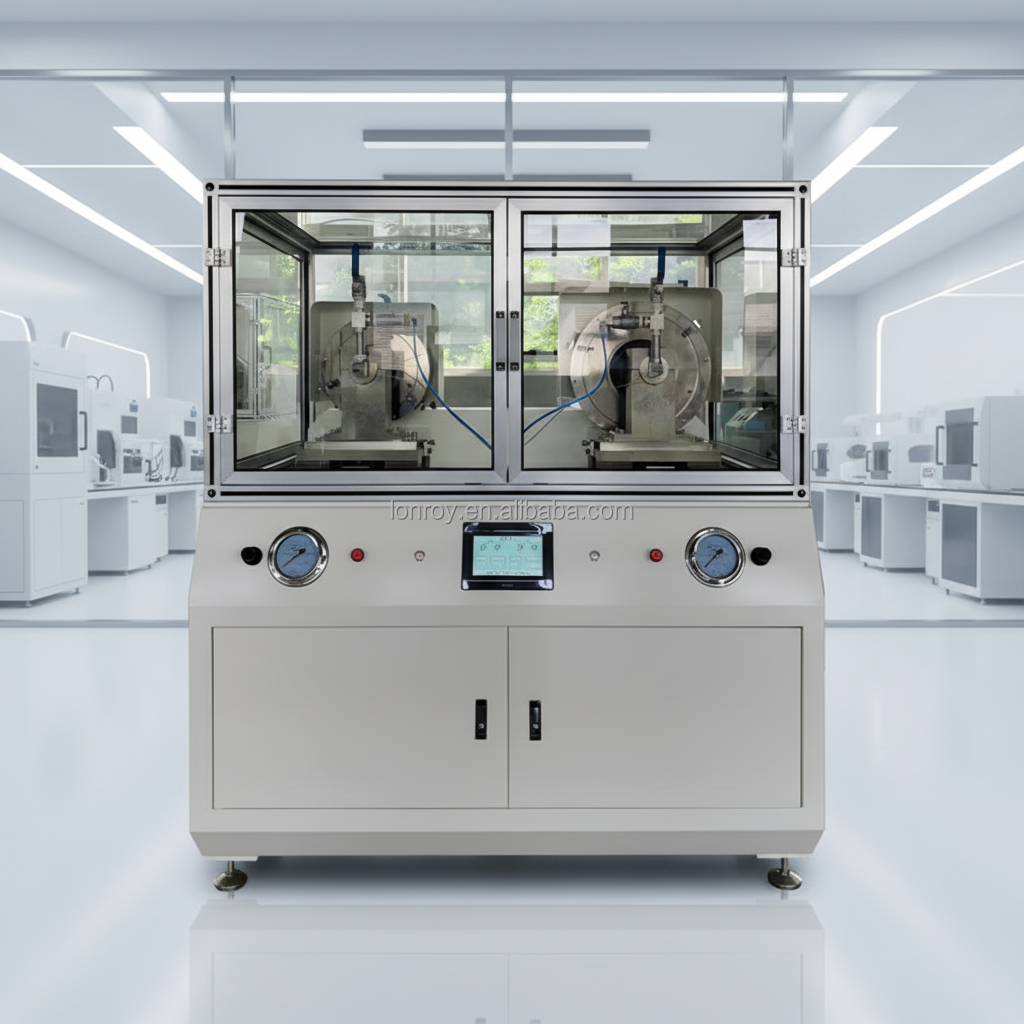

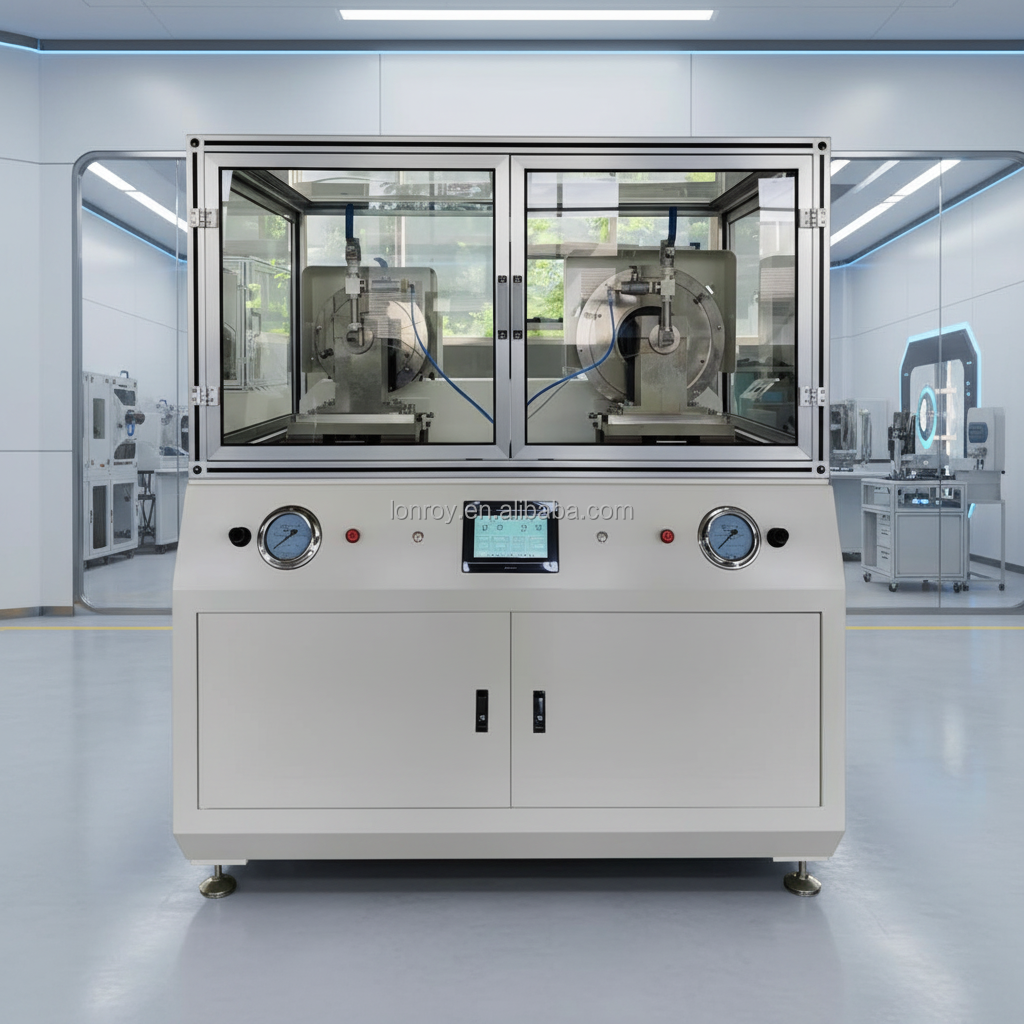

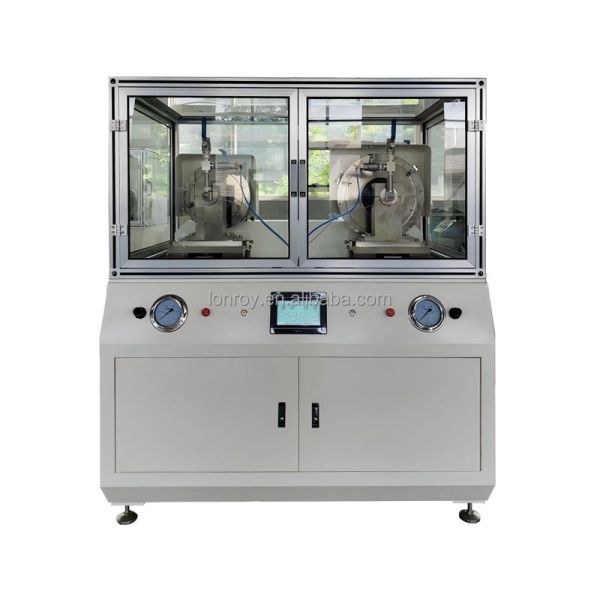

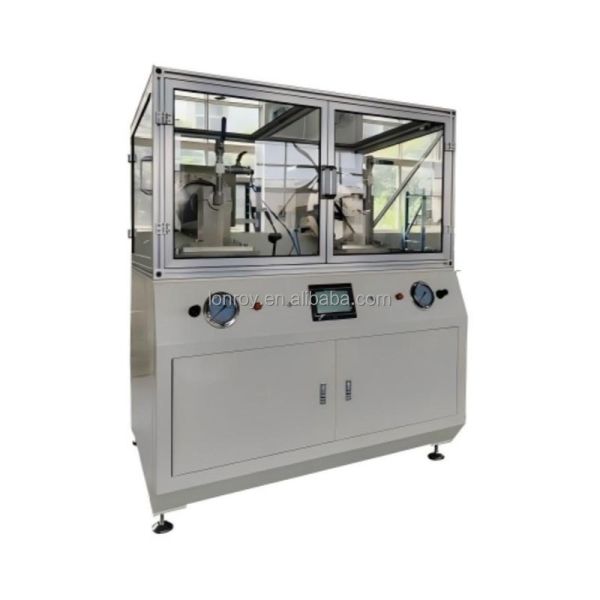

Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
Specifications
Type :
Testing Machine
Accuracy Class :
High Accuracy
Accuracy :
----
Brand Name :
LONROY
Place of Origin :
Guangdong, China
Application :
Auto Testing, Laboratory Testing, Lab Testing
customized support :
OEM, ODM, OBM
power :
---
Protection Class :
Ip56
Voltage :
380 V
warranty :
1 Year
Test chamber runout error :
≤0.03 mm
Shaft center offset adjustment range :
0~2 mm
Pressure range :
0~0.05 MPa
Power supply :
AC380V three-phase four-wire system (neutral wire required) ±10% 50Hz
MOQ :
1
Description

Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber

Product Description

Features and Applications

The oil seal dynamic testing machine is suitable for testing and researching the sealing performance of various rotary oil seals. The oil seal is installed on the test chamber, and the main shaft drives the test chamber to rotate at a certain speed. After a certain period of operation, it is observed whether the oil seal leaks. Two oil seals can be tested at a time.

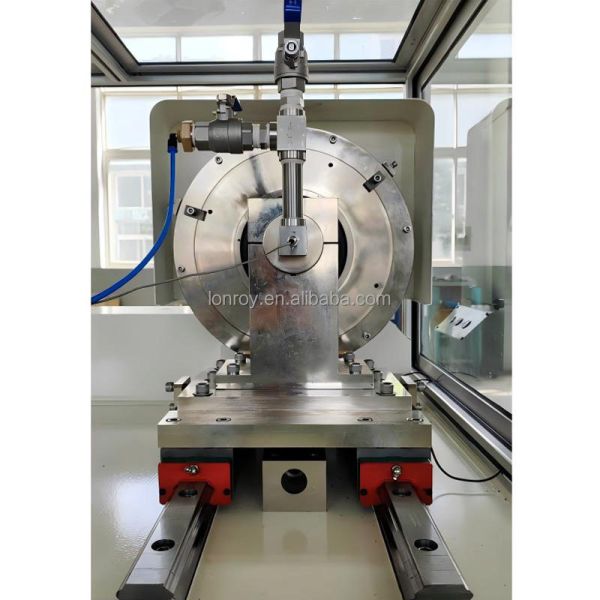

The test shaft of this machine moves back and forth on high-precision linear guides, ensuring high positioning accuracy. A multi-groove belt drive is used between the motor and the main shaft. The oil seal lip temperature is measured by an infrared thermometer. For safety, the equipment will stop running if the protective glass door is opened during the test.

Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber

Technical Specification

Main shaft speed

50 r/min ~ 6000 r/min (customizable, up to 30000 rpm)

Test chamber runout error

≤0.03 mm

Shaft center offset adjustment range

0~2 mm

Left shaft tooling outer diameter

Φ250 mm (customizable)

Right shaft tooling outer diameter

Φ350 mm (customizable)

Motor power

5.5 kW x 2

Pressure range

0~0.05 MPa

Power supply

AC380V three-phase four-wire system (neutral wire required) ±10% 50Hz

Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test ChamberOil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test ChamberOil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test ChamberOil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test ChamberOil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test ChamberOil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber
